0.1 - 1.0mm Colorful Triple Insulated Winding Wire Enameled Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.1-1.0mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Contact Now
Detail Information
Size: 0.10-1.0mm Thermal Class: 155/180
Insulation: PET Solderability: Directly
Color: Yellow/red/pink/blue/black Solder Temperature: 420-470
MOQ: 30,000 Meters Certificate: UL/VDE/RoHS
Rated Temperature: 130

Product Description

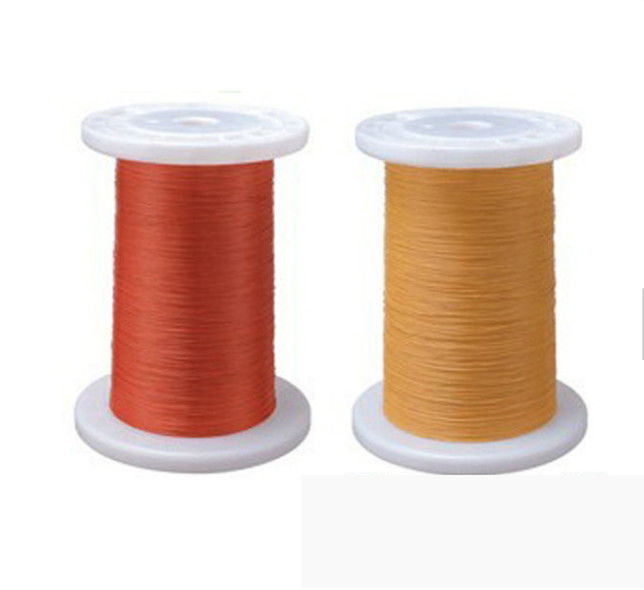

0.1 - 1.0MM COLORFUL TRIPLE INSULATED WINDING WIRE ENAMELED MAGNET WIRE

The feature of triple inslated wire is in its insulation layers. IEC standards require specified insulation between primary and secondary coils of transformers. And the standards do not accept general enameled wire as insulation therefore insulation tape or barrier tape are required in transformers using enameled wire. Triple insulated wire however, has triple insulation layers which comply IEC requirement and therefore can be used without barrier tape or interlayer tape between primary and secondary coils.

FEATURES AND BENEFITS
  • The insulation of the wire, which is made up of three layers, completely isolates the primary from secondary of the transformer.

  • Unlike conventional enameled wires, the TIW series is classified as a wire with three-layered, reinforced insulation (Whereas, SWW-2 is a wire with supplementary insulation) as generally provided for in various safety standards. Therefore, it eliminates barriers, interlayer tapes, and insulating tubes in a transformer.

  • In addition to the reduction in size and economy in material cost of the tramsformer made, TIW has an advantage of improving its performance by reducing the distance between the coils

APPLICATION

  • Induction coating hobs

  • RF transformers

  • RF transducers

  • E-Motors.

0.1 - 1.0mm Colorful Triple Insulated Winding Wire Enameled Magnet Wire

<

Conductor m/m End product m/m Maximum Conductor Resistance at 20 ℃ Minimum Elongation %
Diameter m/m Tolerance m/m Target outside diameter Tolerance m/m
0.15 ±0.008 0.35 ±0.02 1111 15
0.16 ±0.008 0.36 ±0.02 908.8 15
0.17 ±0.008 0.37 ±0.02 853.5 15
0.18 ±0.008 0.38 ±0.02 757 15
0.19 ±0.008 0.39 ±0.02 676.2 15
0.2 ±0.008 0.4 ±0.02 607.6 15
0.21 ±0.008 0.41 ±0.02 549 15
0.22 ±0.008 0.42 ±0.02 498.4 15
0.23 ±0.008 0.43 ±0.02 454.5 15
0.24 ±0.008 0.44 ±0.02 416.2 15
0.25 ±0.008 0.45 ±0.02 382.5 15
0.26 ±0.010 0.46 ±0.02 358.4 15
0.27 ±0.010 0.47 ±0.02 331.4 15
0.28 ±0.010 0.48 ±0.02 307.3 15
0.29 ±0.010 0.49 ±0.02 285.7 20
0.3 ±0.010 0.5 ±0.02 262.9 20
0.32 ±0.010 0.52 ±0.02 230 20
0.35 ±0.010 0.55 ±0.02 191.2 20
0.37 ±0.010 0.57 ±0.02 170.6 20
0.4 ±0.010 0.6 ±0.02 145.3 20
0.45 ±0.010 0.65 ±0.02 114.2 20
0.5 ±0.010 0.7 ±0.02 91.4 20
0.55 ±0.020 0.75 ±0.02 78.2 20
0.6 ±0.020 0.8 ±0.02 65.3 20
0.65 ±0.020 0.85 ±0.02 88.3 20
0.7 ±0.020 0.9 ±0.02 47.2 20
0.75 ±0.020 0.95 ±0.02 41.2 20
0.8 ±0.020 1 ±0.02 36.1 25
0.85 ±0.020 1.05 ±0.02 31.9 25
0.9 ±0.020 1.1 ±0.02 28.4 25
0.95 ±0.020 1.15 ±0.02 25.4 25
1 ±0.030 1.2 ±0.02 23.3 25
