| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.4-0.8mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Ton/Tons per Month |
| Stock: | Available | Color: | Red/Green/Blue |
|---|---|---|---|
| Insulation: | Polyurethane | Size Range: | 0.4-0.8mm |
| High Light: | 0.4mm Polyurethane Enameled Copper Wire,0.8mm Polyurethane Enameled Copper Wire,Ultra Fine Self Solderable Copper Wire |
||

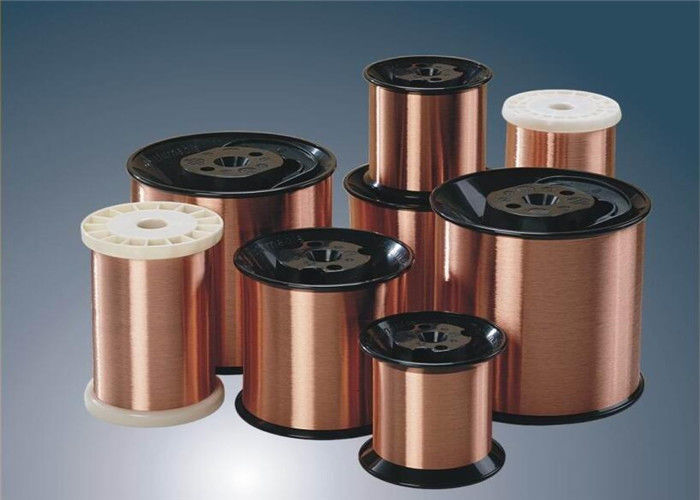

0.4 - 0.8mm MM SOLDERABLE POLYURTHANE ENAMELED COPPER WIRE
Enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.
The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.
FEATURES AND BENEFITS
High conductivity, high heat resistance
Shock resistance, Corrosion Resistant
Excellent durability, Durable Resistant
Superior strength, Reliability
Rust resistant, Affordability
Low maintenance
Relays, Small motors, Small transformers, Magnetic heads, Coils for telecommunication equipment.
SPECIFICATION
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | |||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.4 | ±0.004 | 0.025 | 0.437 | ---- | 2900 | 27 | 5 | 132.2 | 140 |
| 0.41 | ±0.004 | 0.025 | 0.447 | ---- | 2900 | 27 | 5 | 125.9 | 133.2 |
| 0.44 | ±0.004 | 0.025 | 0.477 | ---- | 2900 | 27 | 5 | 109.5 | 115.5 |
| 0.45 | ±0.004 | 0.025 | 0.487 | ---- | 2900 | 27 | 5 | 104.7 | 110.4 |
| 0.47 | ±0.004 | 0.026 | 0.508 | ---- | 3100 | 27 | 5 | 96.05 | 101.1 |
| 0.5 | ±0.004 | 0.026 | 0.539 | ---- | 3100 | 27 | 5 | 84.96 | 89.23 |
| 0.55 | ±0.004 | 0.027 | 0.59 | ---- | 3300 | 28 | 5 | 70.31 | 73.64 |
| 0.6 | ±0.005 | 0.027 | 0.64 | ---- | 3500 | 28 | 5 | 58.96 | 62.01 |
| 0.65 | ±0.005 | 0.027 | 0.69 | ---- | 3500 | 28 | 5 | 50.3 | 52.77 |
| 0.7 | ±0.005 | 0.029 | 0.742 | ---- | 3500 | 28 | 5 | 43.42 | 45.45 |
| 0.75 | ±0.005 | 0.03 | 0.794 | ---- | 3800 | 28 | 5 | 37.86 | 39.55 |
| 0.8 | ±0.005 | 0.032 | 0.846 | ---- | 3800 | 28 | 5 | 33.3 | 34.73 |
