0.04 - 1.8mm Enamelled Rectangular Copper Wire Square Magnet Copper Wire For Smart Phones

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.04 - 1.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Square / Rectangualr Wire Material: Copper
Insulation: AIW/EIW/PEW/UEW Conductor Width: 0.155-7.5mm
Thermal Rating: 155-220℃
High Light:

rectangular magnet wire

,

square magnet wire


Product Description

0.04 - 1.8MM ENAMELED RECTANGULAR COPPER WIRE SQUARE MAGNET COPPER WIRE FOR SMART PHONES

The present trend of the appearance structure of consumer electronics is designed to be “light, thin, short and small”. Well Ascent fine and ultra fine rectangular enamelled copper wire has excellent quality and performance, it can be met the requirement of flattening, light-weight, low power consumption and high performance.

FEATURES AND BENEFITS

  • Different types of enamel with very good mechanical strength and bonding properties

  • Very consistent quality and dimension tolerances per industry standards

  • Wide range of dimensions (very small to very large flat-wire cross-sections)

  • Used for the highest-temperature-class enamelled wire,

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

  • Smart phones

  • PC

  • Game machine

  • Digital server

  • Digital Amplifier

  • Aautomobile parts (Lights, Car navigations, Audios)

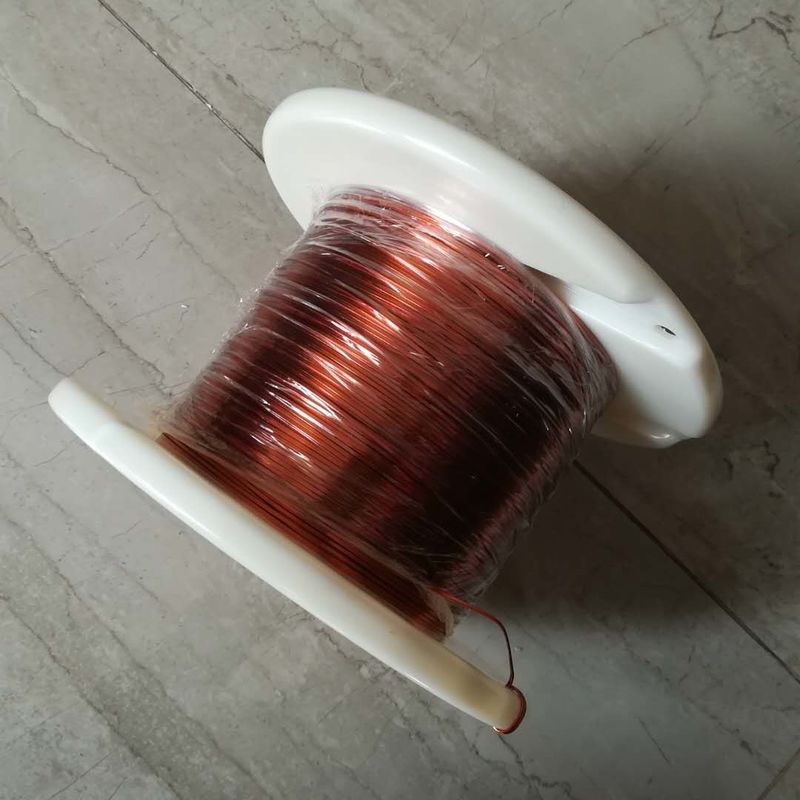

0.04 - 1.8mm Enamelled Rectangular Copper Wire Square Magnet Copper Wire For Smart Phones 0

Types

Class B

ClassB

Class F

Class F

Class F

Class H

Quality

Self-bonding type

Self-bonding type

High tempture-bonding type

Normal type

Extra streching

High-heat resistance

Recommended coil
winding shape

Flat-wise coil

Flat-wise coil

Flat-wirse coil in high temputure

Edgewise coil

Edgewise coil

Edgewise coil

Series of insulation

Acrylic resin

Acrylic resin

Acrylic resin

Acrylic resin

Acrylic resin

Acrylic resin

Ttype of overcoat

Bonding layer(polyamide-imide)

Bonding layer(polyamide-imide)

Bonding layer(polyamide-imide)

Plolyester-imide

Polyamide-imide

Polyamide-imide



Alchol soluble type

Alchol soluble type

Hot wind adhesion

Self-lubricant







Melting temperature 170℃

Melting temperature 170℃

Melting temperature 200℃







Heat resistance

130℃

155℃

155℃

155℃

155℃

Quasi-180℃

Tthickness
of insulation (µm)

1.5~25

3~30

3~30

3~30

3~30

3~20

PInhole (/m) ※thickness
of insulation 10µm

0

0

0

0

0

0

Breakdown voltage (kV) ※layer thickness 10µm

2.0~3.0

2.0~3.0

2.0~3.0

2.0~3.0

2.0~3.0

2.0~3.0

Softening (℃)

250~300

300~350

300~350

300~350

300~350

300~350

Flexibility

Good

Good

Good

Good

Good

Good

Adhesiveness

Good

Good

Good

Good

Good

Good
