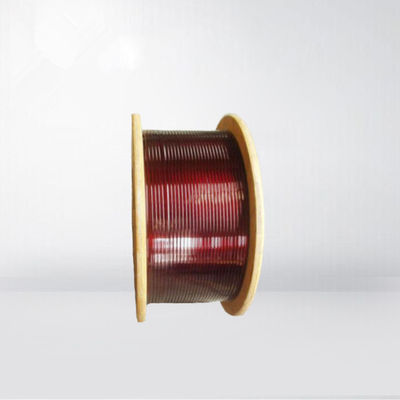

0.12mm-3.2mm Enamelled Copper Winding Wire Super Fine Rectangular Copper Wire For Projector

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.12mm-3.2mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Width Thickness Ratio: 1:1.5-1:25 Equivelant Round Wire: 0.12mm-3.2mm
Conductor: Rectangular Copper Delivery: Copper
Certificates: IEC/JIS/NEMA
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

0.12-3.2MM ENAMELED COPPER WINDIGN WIRE SUPER FINE RECTANGULAR COPPER WIRE FOR PROJUCTOR

Modern Flat Enameled Copper Magnet Wire typically uses one to three layers of polymer film insulation, often of two different compositions, to provide a tough, continuous insulating layer. Magnet wire insulating films use (in order of increasing temperature range) polyvinyl formal or Formvar (PVF), polyurethane, polyamide (PUW), polyester (PEW), polyester-polyimide (EIW), polyamide-polyimide (or amide-imide) (AI-EIW), and polyimide (AIW). Polyimide insulated magnet wire is capable of operation at up to 250°C. The insulation of thicker square or  or copper magnet wire is often augmented by wrapping it with a high-temperature polyimide or fiberglass tape, and completed windings are often vacuum impregnated with an insulating varnish to improve insulation strength and long-term reliability of the winding.

FEATURES AND BENEIFTS

• Very low capacitance
• High space factor can make it possible to have smaller and thinner coils.
• Lower coils resistance
• Those advantages are highly suitable for surface mount device (SMD) coils.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

• Transformer
• HID ramp
• Projector
• Planer (lamination)
• Power Generating Machines
• Dynamo
• Wind power
• Motors
• Capstan for digital video camera
• Linear motors
• Voice Coils
• Solenoid Valve(Actuator)

0.12mm-3.2mm Enamelled Copper Winding Wire Super Fine Rectangular Copper Wire For Projector 0

Types

Class B

ClassB

Class F

Class F

Class F

Class H

Quality

Self-bonding type

Self-bonding type

High tempture-bonding type

Normal type

Extra streching

High-heat resistance

Recommended coil
winding shape

Flat-wise coil

Flat-wise coil

Flat-wirse coil in high temputure

Edgewise coil

Edgewise coil

Edgewise coil

Series of insulation

Acrylic resin

Acrylic resin

Acrylic resin

Acrylic resin

Acrylic resin

Acrylic resin

Ttype of overcoat

Bonding layer(polyamide-imide)

Bonding layer(polyamide-imide)

Bonding layer(polyamide-imide)

Plolyester-imide

Polyamide-imide

Polyamide-imide



Alchol soluble type

Alchol soluble type

Hot wind adhesion

Self-lubricant







Melting temperature 170℃

Melting temperature 170℃

Melting temperature 200℃







Heat resistance

130℃

155℃

155℃

155℃

155℃

Quasi-180℃

Tthickness
of insulation (µm)

1.5~25

3~30

3~30

3~30

3~30

3~20

PInhole (/m) ※thickness
of insulation 10µm

0

0

0

0

0

0

Breakdown voltage (kV) ※layer thickness 10µm

2.0~3.0

2.0~3.0

2.0~3.0

2.0~3.0

2.0~3.0

2.0~3.0

Softening (℃)

250~300

300~350

300~350

300~350

300~350

300~350

Flexibility

Good

Good

Good

Good

Good

Good

Adhesiveness

Good

Good

Good

Good

Good

Good
