Name: Ultra Fine 0.012 - 0.8mm Enameled Copper Magnet Wire Winding Wire For Electronic Devices
Brand: Rvyuan
SKU: 0.012 - 0.8mm
Rating: 4.7 (131 reviews)

Detail Information

Stock:	Available	Insulatoin:	Round Copper Wire
Color:	Red/blue/green	Thermal Class:	155-220
Size Range:	0.012-0.8mm
High Light:	solderable magnet wire , magnetic coil wire

Product Description

ULTRA FINE 0.012-0.8MM ENAMELED COPPER MAGNET WIRE WINDING WIRE FOR ELECTRONIC DEVICES

Magnet wire is copper wire with a coating of insulation, and is used in electromagnets, transformers, Tesla coils, speakers, inductors, guitar pickups, and motors. It is available in many sizes, temperature ratings, and colors. Magnet wire allows multiple layer of wire to be wound together without short circuiting.

FEATURES AND BENEFITS

Compositions: copper and polyurethane resin
Characteristics: soldering is possible without removal of outer coating, easy to color
Applications: electrical or electronic equipment and electrical motors
Round wires: 0.012 - 0.8mm, super fine copper wire

APPLICATIONS

Automotive use as generators, alternators, field windings and starting motors; electronic use as coils, choke flyback TV; in special transformers as ballasts for mercury lamps; in distributions transformers, power transformers; low power motors and open small motors, hermetically closed, refrigeration and starting coils and for motors in general.

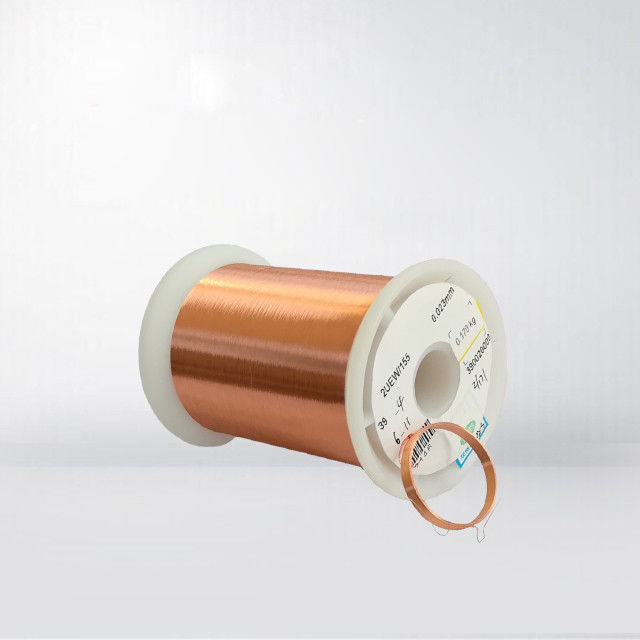

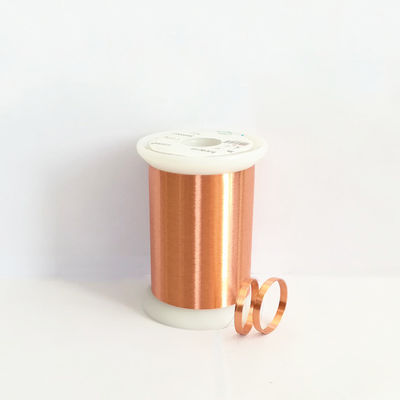

Ultra Fine 0.012 - 0.8mm Enameled Copper Magnet Wire Winding Wire For Electronic Devices 0

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance

	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.02	0.001	0.022	0.024	100	----	8	8	51.83	60.81
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4
0.17	±0.003	0.013	0.192	----	2000	22	5	721.1	787.1
0.18	±0.003	0.014	0.204	----	2000	22	5	644.4	700.7
0.19	±0.003	0.014	0.214	----	2000	23	5	579.4	627.8
0.2	±0.003	0.014	0.224	----	2000	23	5	523.7	565.7
0.21	±0.003	0.014	0.234	----	2000	23	5	475.7	512.3
0.22	±0.003	0.014	0.245	----	2200	23	5	434	466.2
0.23	±0.003	0.016	0.257	----	2200	24	5	397.5	426
0.24	±0.003	0.016	0.267	----	2200	24	5	365.5	390.8
0.25	±0.003	0.016	0.277	----	2300	24	5	337.1	359.8
0.26	±0.004	0.018	0.287	----	2300	25	5	309.6	335
0.27	±0.004	0.018	0.297	----	2300	25	5	287.4	310.3
0.28	±0.004	0.022	0.313	----	2300	25	5	267.6	288.2
0.29	±0.004	0.022	0.323	----	2500	25	5	249.7	268.4
0.3	±0.004	0.022	0.334	----	2500	25	5	233.5	250.6
0.31	±0.004	0.022	0.344	----	2500	25	5	218.9	234.4
0.315	±0.004	0.022	0.349	----	2500	25	5	212.1	227
0.32	±0.004	0.023	0.355	----	2700	25	5	205.6	219.8
0.33	±0.004	0.023	0.365	----	2700	25	5	193.5	206.6
0.35	±0.004	0.023	0.385	----	2700	26	5	172.2	183.4
0.355	±0.004	0.023	0.39	----	2700	26	5	167.4	178.2
0.37	±0.004	0.024	0.406	----	2900	26	5	154.3	163.9
0.38	±0.004	0.024	0.416	----	2900	26	5	146.4	155.3
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
0.41	±0.004	0.025	0.447	----	2900	27	5	125.9	133.2
0.44	±0.004	0.025	0.477	----	2900	27	5	109.5	115.5
0.45	±0.004	0.025	0.487	----	2900	27	5	104.7	110.4
0.47	±0.004	0.026	0.508	----	3100	27	5	96.05	101.1
0.5	±0.004	0.026	0.539	----	3100	27	5	84.96	89.23
0.55	±0.004	0.027	0.59	----	3300	28	5	70.31	73.64
0.6	±0.005	0.027	0.64	----	3500	28	5	58.96	62.01
0.65	±0.005	0.027	0.69	----	3500	28	5	50.3	52.77
0.7	±0.005	0.029	0.742	----	3500	28	5	43.42	45.45
0.75	±0.005	0.03	0.794	----	3800	28	5	37.86	39.55
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.012 - 0.8mm

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand
