0.8 - 5.6mm Super Fine Flat Enamelled Copper Wire Magnet Motor Winding Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.8 - 5.6mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C,Negotiation,
Supply Ability: Satisfy your demand
Detail Information
Thermal Rating: 155-220 Size Range: 0.8-5.6mm
Conductor Type:: Flat Copper Color: Purple/Gold/Red
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

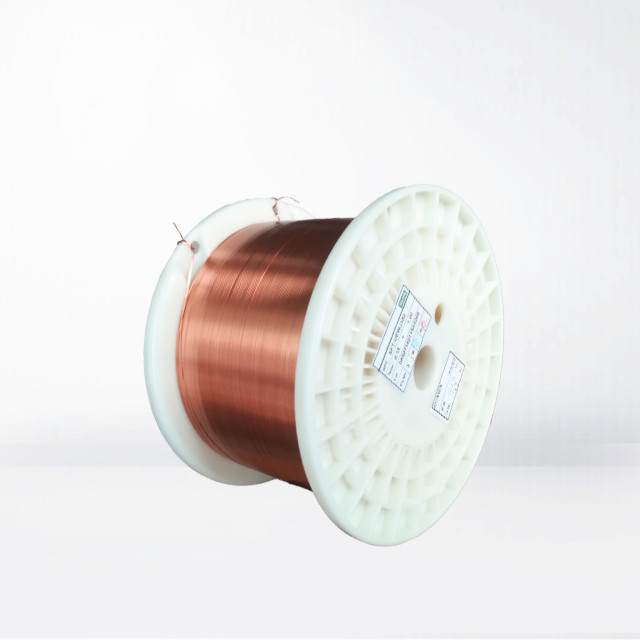

0.8 - 5.6SUPER FINE FLAT ENAMELED COPPER WIRE MAGNET MOTOR WINDING WIRE

This kind of enameled wire can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance.Especially for the winding wire for transferring high frequency signal, such household appliances as degaussing coil, high frequency transformer, common transformer and small electric
FEATURES

  • Excellent thermal stability, excellent dielectric and mechanical properties.

  • Very good chemical resistance to common solvent and coolants.

  • Better sliding during coil insertion in slots (reduced friction factor).

  • High resistance to abrasion.

  • Suitable for windings that are subjected to constantly high temperature and mechanical stress

  • Good chemical resistance

  • Outstanding mechanical and chemical property

APPLICATION

  • Small type Gerators ( For no-Utility generation )

  • Standard motor

  • Motors for refrigeration ( Cold storage, Coolers & etc.)

  • Motors for electric tool ( Grinders drills, saws, planers & etc. )

  • Other special moter

  • Dry type transformers ( For power distribution, Vehicles & etc. )

0.8 - 5.6mm Super Fine Flat Enamelled Copper Wire Magnet Motor Winding Wire 0

SPECIFICATION

SIZE
AWG

BARE
DIAMETER (mm)

Wire

Double film

Max

DC

Current

Corneas

Section

Approx

MIN

MAX

Approx

Winding

Resistance

Density

Thermal Class

Radius

Weight

Increment

DIA.

Weight

Tension

at 20°C

Min

Nor

Max

(mm)

(mm2)

(kg/km)

(mm)

(mm)

(kg/km)

(kg)

(ohm/km)

155°C

200°C

4

5.138

5.189

5.240

1.016

26.04

231.49

0.076

5.367

233.05

156

0.8153

171

257

5

4.575

4.620

4.666

1.016

20.46

181.87

0.076

4.793

183.22

122

1.028

135

202

6

4.074

4.115

4.155

0.813

16.37

145.49

0.076

4.282

146.68

97.9

1.296

108

161

7

3.630

3.665

3.701

0.813

12.86

114.37

0.076

3.828

115.40

76.9

1.634

85

127

8

3.231

3.264

3.297

0.813

10.09

89.67

0.076

3.424

90.56

60.3

2.060

66

100

9

2.878

2.906

2.934

0.660

8.07

71.75

0.076

3.061

72.54

48.3

2.599

53

80

10

2.563

2.588

2.614

0.660

6.32

56.22

0.076

2.741

56.91

37.8

3.278

42

62

11

2.278

2.304

2.329

0.508

5.09

45.22

0.076

2.456

45.84

30.4

4.135

33

50

12

2.027

2.052

2.078

0.508

3.99

35.46

0.076

2.205

36.01

23.9

5.213

26

39

13

1.803

1.829

1.854

0.406

3.20

28.48

0.076

1.981

28.98

19.2

6.562

21

32

14

1.603

1.628

1.654

0.406

2.51

22.30

0.076

1.781

22.74

15.0

8.283

17

25
