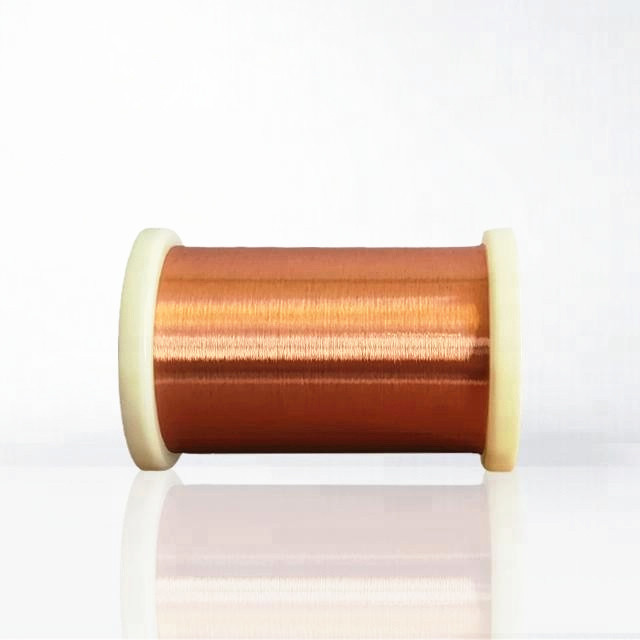

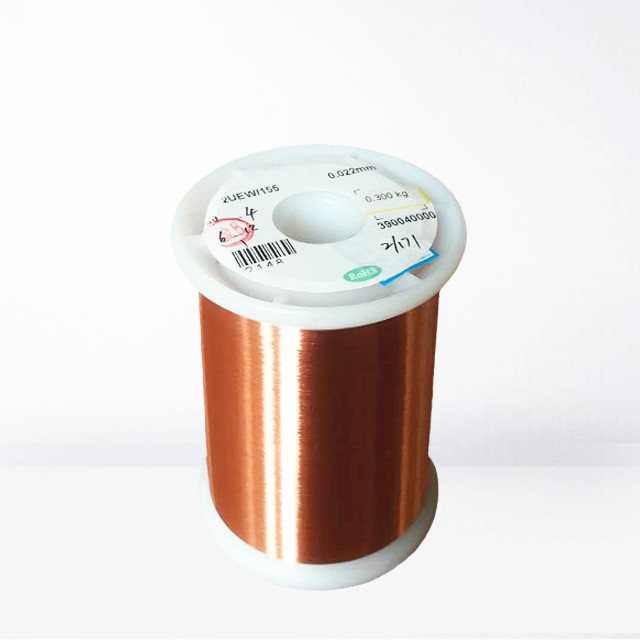

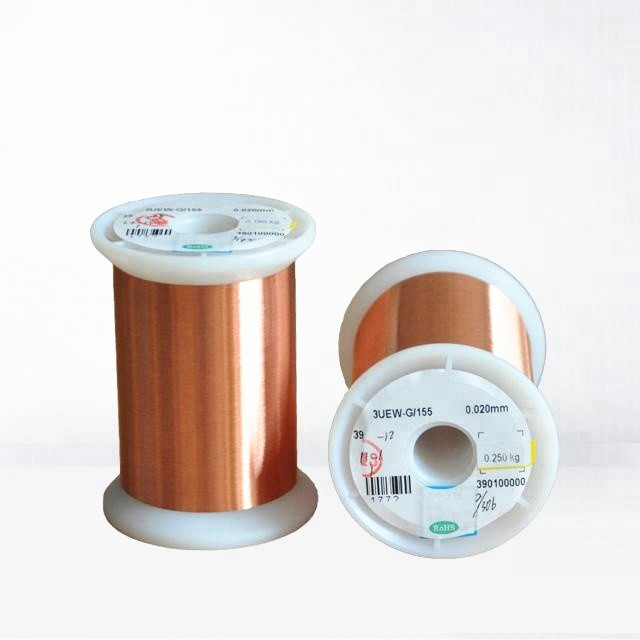

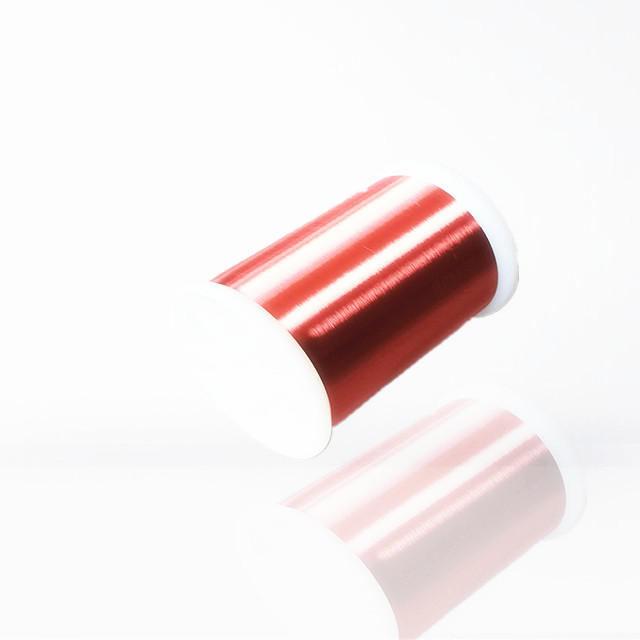

0.012mm Enamelled Transformer Copper Wire Copper Magnet Wire Good Conductivity For Small Motor

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Delivery Time: 2-15 Days Thermal Rating: F/H
Size Range: 0.012-0.8mm Wire Conductor Type:: Solid
High Light:

soft copper wire

,

self solderable copper wire


Product Description

0.012MM ENAMELED TRANSFORMER COPPER WIRE COPER MAGNET WIRE GOOD CONDUCTIVITY FOR SMALL MOTOR

We bring out a huge selection of Super Enameled Copper Wire that are enabled with good conductivity. Manufactured with quite user friendly and safe approach, these wires are available in different sizes and easy to handle. Our range of enameled copper wires is finely coated with a layer of insulation to prevent with a short circuit when it is being wound into coils. These wires offer excellent resistance to heat shocks and hence thereby suitable for high-speed winding. They further ensure a high endurance with able mechanical strength and impressive performance.

FEATURES AND BENEFITS

  • With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.

  • Superior ''Q'' characteristic at high frequencies.

  • Excellent film adhension and flexibility.

  • Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

APPLICATIONS

  • Standard motor

  • Small type motor ( Electric household appliance, Toys & etc.)

  • Oil immersed transformers

  • Transformer for measuring instrument

0.012mm Enamelled Transformer Copper Wire Copper Magnet Wire Good Conductivity For Small Motor 0

SPECIFICATION



Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage

Elongation

Pin Hole

Electrical Resistance











mm

≥ V

≥%

≤Default/5m

Ω/km (20℃)









Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50

----

5

10

142.64

157.65

0.013

----

0.015

0.017

70

----

5

10

118.41

133.98

0.014

----

0.016

0.018

70

----

5

10

102.64

120.45

0.015

----

0.017

0.02

80

----

5

10

89.83

104.41

0.016

----

0.018

0.021

90

----

5

8

74.67

97.56

0.017

----

0.019

0.022

90

----

5

8

66.6

85.75

0.018

----

0.02

0.023

100

----

5

8

59.77

75.95

0.019

----

0.021

0.024

100

----

5

8

53.95

67.75

0.02

0.001

0.022

0.024

100

----

8

8

51.83

60.81
