130 - 220℃ Self Bonding Wire Super Fine Rectangular / Square Enameled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 130 - 220℃
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Conductor: Copper Insulation Material:: Enamelled
Size: 0.025-3.0mm Temperature: 130-220℃
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

130 - 220℃ SELF BONDING WIRE SUPER FINE RECOTANGULAR SQUARE ENAMELED COPPER WIRE

Rectangular or square wire is made from base copper with rectangular or square shape, it has high advantages compare with round wire, and applied in many field.

FEATURES AND ADVANTAGES

  • High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.

  • The coil made from rectangular wire has better cooling efficiency.

  • Rectangular wire can be wound with different mode.

  • The coil can be better shape, flat and smooth.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met
EXECUTIVE STANDARDS
IEC, JIS and NEMA.

APPLICATION

  • Motor, transformer, moving coil,

  • plate mount coil, inverter, inductor,

  • s peaker, projector, valve.

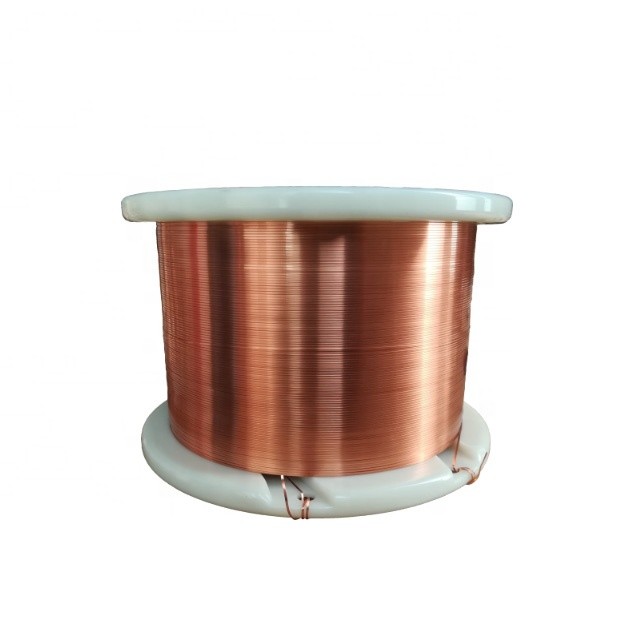

130 - 220℃ Self Bonding Wire Super Fine Rectangular / Square Enameled Copper Wire 0

TECHNICAL SPECIFICATIONS

Conductor cross sections(mm )

0.003-0.03

0.03-0.3

0.30-3.0

3.0-6.0

Equivalent size of Round wire(mm)

0.06-0.20

0.2-0.6

0.6-2.0

2.0-3.0

Thickness(mm)

0.02-0.06

0.06-0.2

0.2-0.5

0.5-1.2

Ratio of T/W

1:1.2-1:1.5

1:1.2-1:3.0

1:1.2-1:2.0

Typical size

0.03x0.2

0.08x1.0

0.24x2.4

1.0x4.0

Type of insulation

UEW,AIW,PIW

Thermal class

180/200/220/240

Self-bonding

Available
