Solderable Enameled Copper Magnet Wire Ultra Fine Enameled Wire For Automotive

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012-0.8mm
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, L/C, T/T
Supply Ability: Satisfy your demand
Detail Information
AWG: 20-56 Thermal Rating: 130/150/180/220
Application: Automotive Insulation: Olyurethane
Color: Red, Blue, Green SIZE: 0.012-0.8mm
High Light:

solderable magnet wire

,

magnetic coil wire


Product Description

SOLDERABLE ENAMELED COPPER MAGNET WIRE ULTRA ENAMELED WIRE FOR AUTOMOTIVE

Though many providers work with ultra-fine wire, Ruiyuan is one of a select few with the technical expertise and specialized machinery required to work with 20-56 AWG ultra-fine wire. The ability to use ultra-ultra provides important benefits for design engineers..One car consumes large quantity of enamelled cooper wire, it exists everywhere in the car from the actuator that helps enigne starts to Ignition coil. Most of them are hidden in the car bodyOur enamelled wire has been widedly used in different applications of automotive, and it's been proved great quality and high stabiliy

FEATURES AND BENEFITS

  • Excellent flexibility, adhesion

  • Anti-scrape resistance,low coefficient of friction.

  • Good solvent resistance

  • Mechanical strength with (PVF) enameled wire match

  • Electrical performance with polyester enamelled round copper wire match

APPLICATIONS

  • Ignition coil

  • Batteries

  • Engine

  • Actuator

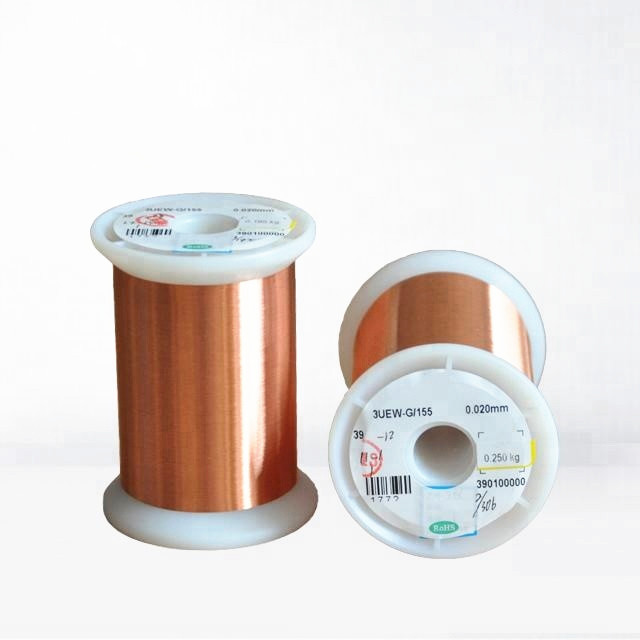

Solderable Enameled Copper Magnet Wire Ultra Fine Enameled Wire For Automotive 0

SPECIFICATION

Brand name

Ruyuan

Specification Met

MW 131 C

Material type

copper wire

Finish

enamel

Bare copper dia.

0.012-0.80mm

Insulation

Solderable polyurethane

Thermal class

155 Degrees celsius

Shape

Round

Bond method

solvent or heat bonding

Color

natural or according to requirements

Spool

PT-15,PT-10.PT-4,PL-2,PC-1

Certification

UL,SGS,REACH,ROHS

Base coat

mod. Polyurethane

Bond coat

Polyamide(nylon)



Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage

Elongation

Pin Hole

Electrical Resistance











mm

≥ V

≥%

≤Default/5m

Ω/km (20℃)









Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50

----

5

10

142.64

157.65

0.013

----

0.015

0.017

70

----

5

10

118.41

133.98

0.014

----

0.016

0.018

70

----

5

10

102.64

120.45

0.015

----

0.017

0.02

80

----

5

10

89.83

104.41

0.016

----

0.018

0.021

90

----

5

8

74.67

97.56

0.017

----

0.019

0.022

90

----

5

8

66.6

85.75

0.018

----

0.02

0.023

100

----

5

8

59.77

75.95

0.019

----

0.021

0.024

100

----

5

8

53.95

67.75

0.02

0.002

0.022

0.024

100

----

5

8





0.05

±0.002

0.007

0.062

400

1200

12

5

7981

9528

0.055

±0.002

0.007

0.068

400

1200

12

5

6642

7815
