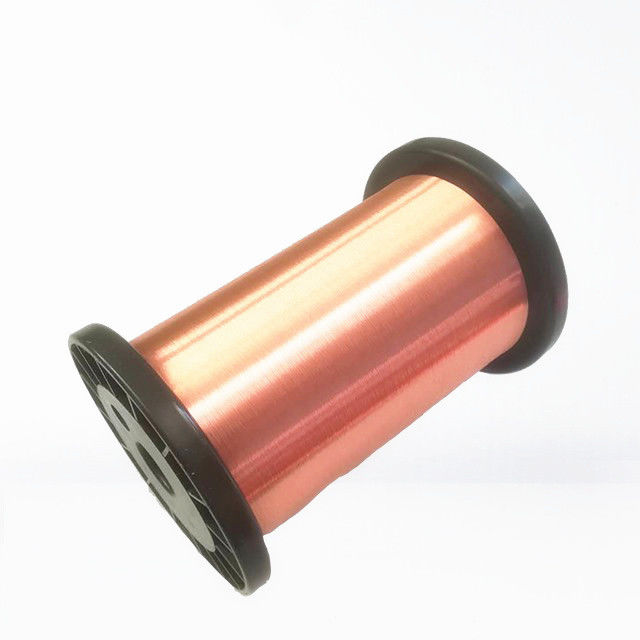

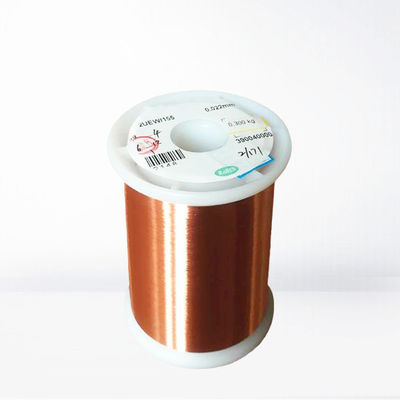

0.012mm - 0.8mm Different Color Ultra Thin Enameled Copper Wire Winding Wire For Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.012mm - 0.8mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Super Thin Enmalled Cooper Wire For Transformer AWG: 20-56
Thermal Rating: 150/180/220 Color: Red, Green, Original, Blue
Insulation: UEW/2UEW/3UEW Tolerance: Accoring To Different Standards
Size Range: 0.012-0.8mm
High Light:

thin coated copper wire

,

soldering copper wire


Product Description

0.012 - 0.8MM DIFFERENT COLOR ULTRA THIN ENAMELED COPPER WIRE WINDING WIRE FOR TRANSFORMER

Enamelled Copper Wire (Magnet Wire) is an insulated copper (or aluminium) electrical conductor used in motors, transformers and other electromagnetic equipment. When wound into a coil and energized, magnet wire creates an electromagnetic field.Electrical to electrical transformation involves transformers, which are used to transfer power. Transformers are used for power generation by utility companies, for power voltage conversion, and in electrical controls in industrial and home uses.Our enamelled wire is produced environmentally compatibly and containes a minimum of pollutants only. Independent laboratories confirm with their corresponding RoHS certificates, that enamelled wire is compatible with the environment.

FEATURES AND BENEFITS

♦  Excellent resistance to abrasion and solvent,
♦  Excellent electricity performance

♦  Excellent heat shock, adherence and flexibility,
♦  High cut through

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

EXECUTIVE STANDARDS

IEC, JIS and NEMA.

0.012mm - 0.8mm Different Color Ultra Thin Enameled Copper Wire Winding Wire For Transformer 0
HEAT SHOCK TEST

Nominal conductor diameter

Pre-stretching %

Diameter of mandrel (mm)

Nominal conductor diameter

Pre-stretching %

Diameter of mandrel(mm)

d(mm)

d(mm)

d≤0.050

20

0.15

0.250<d≤0.280

0

0.63

0.050<d≤0.063

15

0.15

0.280<d≤0.315

0

0.71

0.063<d≤0.080

10

0.15

0.315<d≤0.355

0

0.8

0.080<d≤0.112

5

0.15

0.355<d≤0.400

0

0.9

0.112<d≤0.140

0

0.15

0.400<d≤0.450

0

1

0.140<d≤0.160

0

0.25

0.450<d≤0.500

0

1.12

0.160<d≤0.180

0

0.28

0.500<d≤0.560

0

1.25

0.180<d≤0.200

0

0.315

0.560<d≤0.630

0

1.4

0.200<d≤0.224

0

0.355

0.630<d≤0.710

0

1.6

0.224<d≤0.250

0

0.4

0.710<d≤0.800

0

1.8
