3mm Flat Rectangular Enameled Copper Wire Aiw High Voltage

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.60mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 3mm Flat Wire Aiw High Voltage Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.60mm Conductor Material: Copper
Key Word: 3mm Flat Wire Aiw High Voltage Rectangular Enameled Copper Wire
High Light:

3mm rectangular enameled copper wire

,

aiw rectangular enameled copper wire

,

3mm rectangular enamelled copper wire


Product Description

3mm Flat wire aiw high voltage rectangular enameled copper wire



Enameled copper flat wire is a bare copper flat wire obtained after round copper wire is drawn, extruded or rolled by a die, and then coated with insulating varnish for many times.



The surface layer of the painted flat copper wire has good insulation and corrosion resistance.



Compared with the ordinary round-section enameled wire, the enameled flat wire has excellent current carrying capacity, transmission speed, heat dissipation performance and occupied space volume. performance.



Definition: Width: Thickness≈1:1

Conductor:LOC,OFC

Temperature grade:188℃,220℃



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

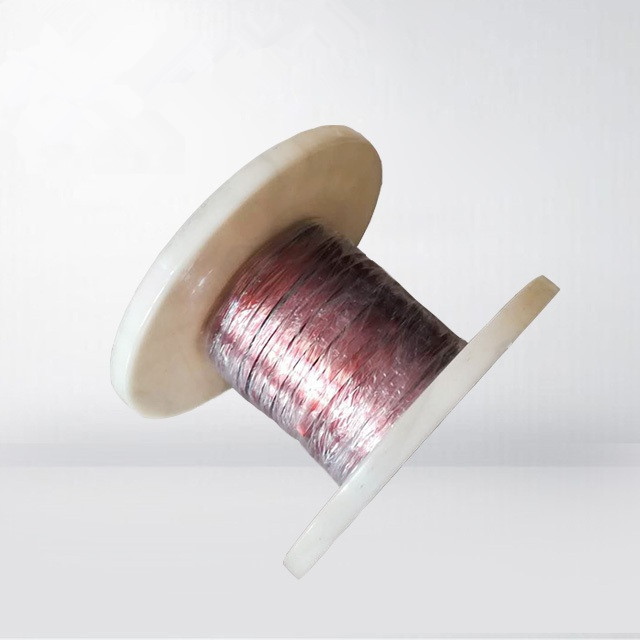

3mm Flat Rectangular Enameled Copper Wire Aiw High Voltage 0

3mm Flat Rectangular Enameled Copper Wire Aiw High Voltage 1

3mm Flat Rectangular Enameled Copper Wire Aiw High Voltage 2

3mm Flat Rectangular Enameled Copper Wire Aiw High Voltage 3
