Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.60mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Factory High Temperature Enameled Rectangular Copper Wire 0.60mm For Automotive Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.60mm Conductor Material: Copper
Key Word: Factory High Temperature Enameled Rectangular Copper Wire 0.60mm For Automotive
High Light:

0.60mm rectangular copper wire

,

automotive rectangular copper wire

,

bondable rectangular enameled copper wire


Product Description

Factory High Temperature Enameled Rectangular Copper Wire 0.60mm For Automotive



♢ Features:

·The space factor is high, and the production of smaller and lighter electronic motor products is no longer limited by the size of the coil.

·The density of conductors per unit area increases, and small-sized and high-current products can be realized.

·The heat dissipation performance and electromagnetic effect are better than that of enameled round copper wire.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

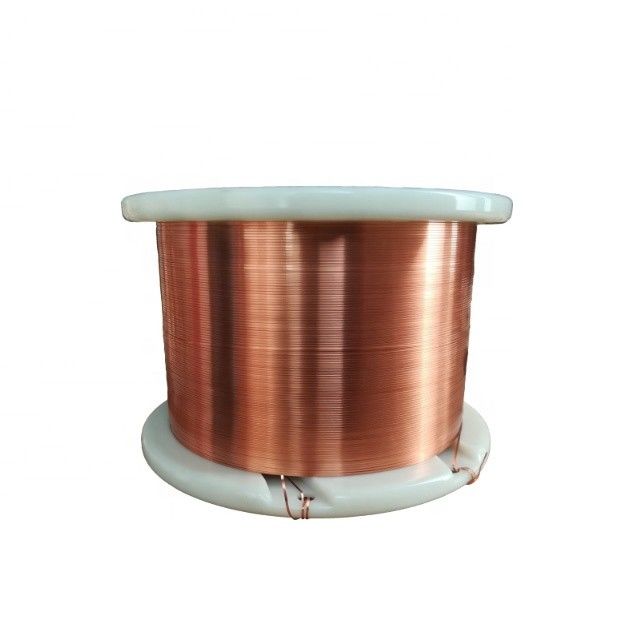

Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive 0

Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive 1

Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive 2

Bondable High Temperature Rectangular Copper Wire 0.60mm For Automotive 3
