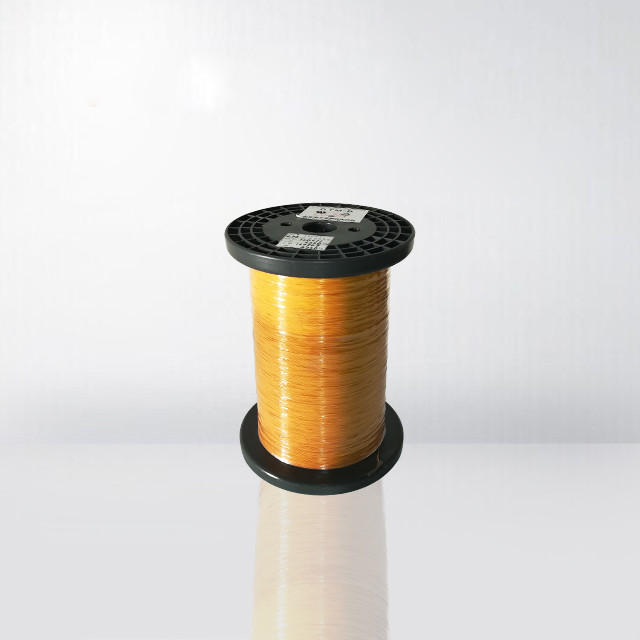

Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.16mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: High Quality UL Certificated 0.16mm TIW Triple Insulated Wire Thermal Rating: 130
Insulation Material: UEW Diameter: 0.30mm
Conductor Material: Copper Key Word: High Quality UL Certificated 0.16mm TIW Triple Insulated Wire
High Light:

0.16mm triple insulated wire

,

uew triple insulated wire

,

0.16mm triple insulated copper wire


Product Description

High Quality UL Certificated 0.16mm TIW Triple Insulated Wire



Suitable for 30kHz above high frequency purpose
Equalized electric quality with extrusion type
Low dielectric constant
Handing/Storage convenience-Superior physical strength and durability for abrasion
Simple production processes: No barrier tape and interleaved insulation tape are required
Solderability: Soldering can be conducted without removal of insulation layer



NO.

Characteristics

Test Standard

Conclusion

1

Package

Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete

OK

2

Bare Wire Diameter

0.16±0.008MM

0.159-0.164

3

Overall Diameter

0.36±0.020MM

0.359-0.362

4

Conductor Resistance

MAX: 950.1Ω/KM

898.3Ω/KM

5

Breakdown voltage of straight wire

The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV

OK

6

Elongation

MIN:15%

17.2-18.5%

7

Solder ability

430± 5℃ 1-2.5 Secs

OK

Conclusion

Qualified



Product Name

High Quality UL Certificated 0.16mm TIW Triple Insulated Wire

Size

0.16mm

Insulation

Polyurethane

Thermal Rating

Class 130

Sample

Avaible on your requests.





Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation 0

Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation 1

Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation 2

Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation 3

Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation 4Ul Certificated 0.16mm Triple Insulated Wire Tiw Uew Insulation 5
