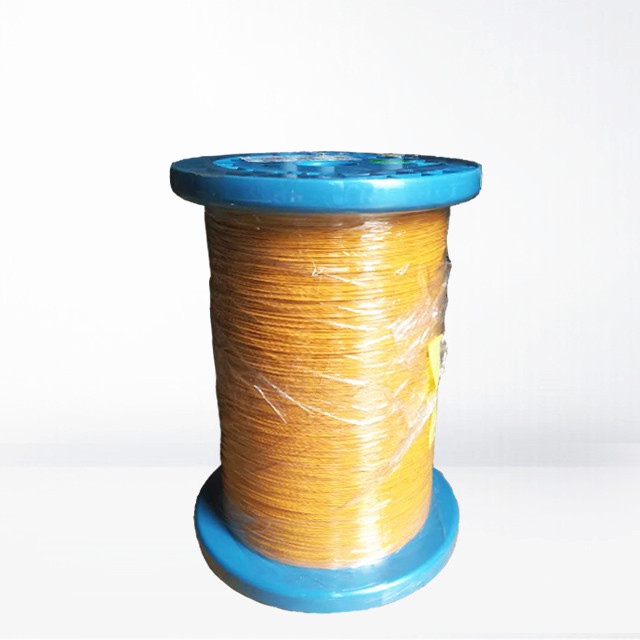

Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.16mm
Minimum Order Quantity: 3000 meter
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Triple Insulated Layers Wire Insulated Copper Wire 0.16mm Solid 1000 Vrms Thermal Rating: 130
Insulation Material: UEW Diameter: 0.30mm
Conductor Material: Copper Key Word: Triple Insulated Layers Wire Insulated Copper Wire 0.16mm Solid 1000 Vrms
High Light:

copper triple insulated winding wire

,

0.16mm triple insulated winding wire

,

1000 vrms triple insulated copper wire


Product Description

Triple Insulated Layers Wire Insulated Copper Wire 0.16mm Solid 1000 Vrms


Exclusion of 'Creepage Distance' requirement and interleaved insulation bring epochal miniaturization.
Supreme UL grade of insulation:Reinforced Insulation
The most advanced insulation type: Triple extrusion
Electric Strength Test:1.Straight Test:AC 3,000V/1 min above
Twisted Teat:AC 6,000V/1 min above





NO.
Characteristics
Test Standard
Conclusion
1
Package
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete
OK
2
Bare Wire Diameter
0.16±0.008MM
0.159-0.164
3
Overall Diameter
0.36±0.020MM
0.359-0.362
4
Conductor Resistance
MAX: 950.1Ω/KM
898.3Ω/KM
5
Breakdown voltage of straight wire
The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV
OK
6
Elongation
MIN:15%
17.2-18.5%
7
Solder ability
430± 5℃ 1-2.5 Secs
OK
Conclusion
Qualified



Product Name
Triple Insulated Layers Wire Insulated Copper Wire 0.16mm Solid 1000 Vrms
Size
0.16mm
Insulation
Polyurethane
Thermal Rating
Class 130
Sample
Avaible on your requests.





Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms 0

Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms 1

Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms 2

Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms 3

Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms 4Copper Triple Insulated Winding Wire 0.16mm Solid 1000 Vrms 5
