Aiw 3.00mm Flat Rectangular Copper Wire Enameled High Temperature

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 3.00mm * 0.60mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: AIW 3.00mmmm High Temperature Flat Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: Amide Imide Width: 3.00mm
Thickness: 0.60mm Conductor Material: Copper
Key Word: AIW 3.00mmmm High Temperature Flat Rectangular Enameled Copper Wire
High Light:

3.00mm rectangular copper wire

,

rectangular copper wire high temperature

,

rectangular enameled copper wire


Product Description

AIW 3.00mmmm high temperature flat rectangular enameled copper wire



Our features:



Under the same cross-sectional area, the flat enameled copper wire has a larger surface area than the round enameled copper wire, which greatly improves the skin effect, reduces the loss of high-frequency current, and has good heat dissipation performance, which is suitable for high-frequency transmission. to the environment.



Characteristics
 Standard
Test Result
Appearance
  Smooth Equality
Smooth Equality
Conductor Diameter
Width
 3.00
   ±0.060

2.993

Thickness
    0.160
±0.009
0.593
Min.thickness of insulation Thickness 0.020 0.047
Width 0.030 0.593
Overall Diameter
(Including bonding layer)
Thickness
Max.3.100
3.040
Width
Max.0.650
0.635
Pinhole
2 hole/m
                          0
Elongation
Min ≥30%
41
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
10.37
9.11
Breakdown Voltage
Min1.00kv
2.10
Heat shock
No Crack

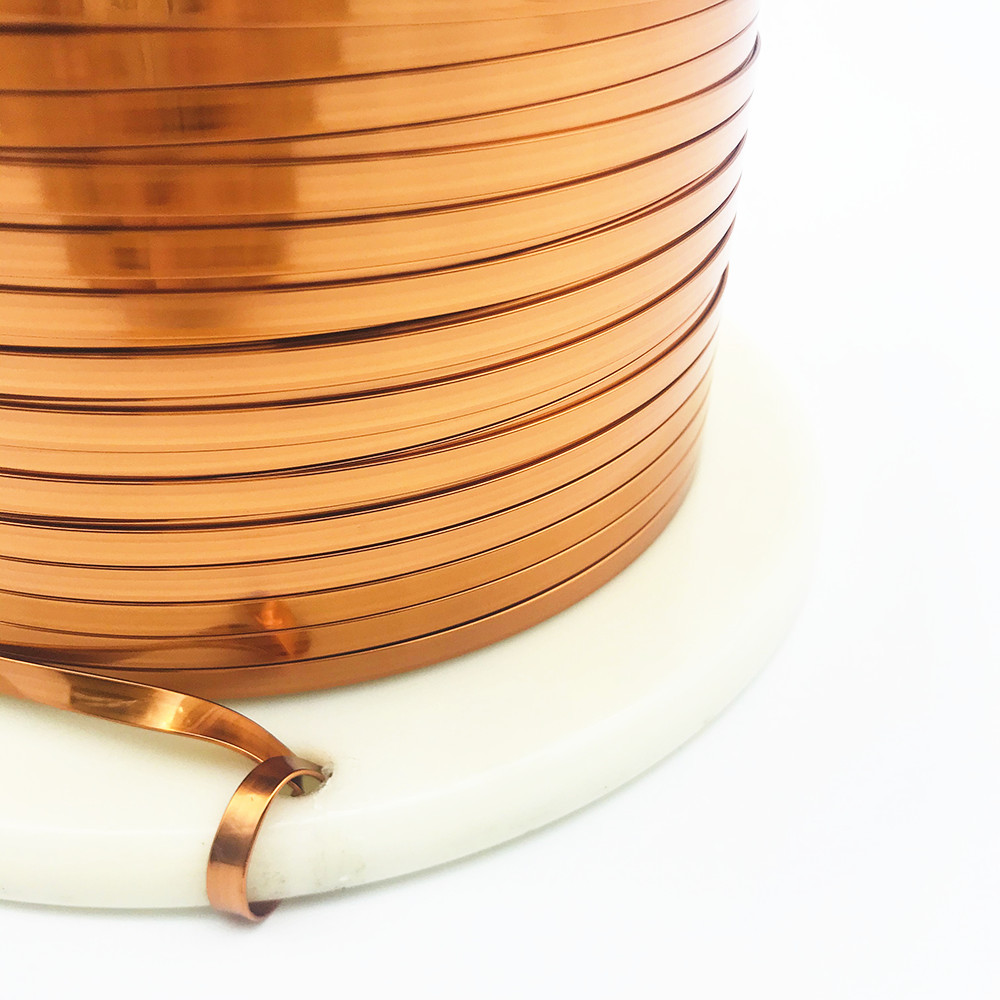

Aiw 3.00mm Flat Rectangular Copper Wire Enameled High Temperature 0

Aiw 3.00mm Flat Rectangular Copper Wire Enameled High Temperature 1

Aiw 3.00mm Flat Rectangular Copper Wire Enameled High Temperature 2

Aiw 3.00mm Flat Rectangular Copper Wire Enameled High Temperature 3
