Aiw 2.4mm * 0.5 Mm Rectangular Enameled Copper Wire For Motor

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.4mm * 0.5 mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Name: AIW 2.4mm * 0.5 Mm Rectangular Enameled Copper For Motor Thermal Rating: 155/180
Insulation Material: UEW Width: 2.4mm
Thickness: 0.5mm Type: Self Bonding Rectangular Enameled Copper Wire
Key Word: Rectangular Enameled Copper Wire
High Light:

aiw rectangular enameled copper wire

,

motor rectangular enameled copper wire

,

0.5 mm rectangular copper wire


Product Description

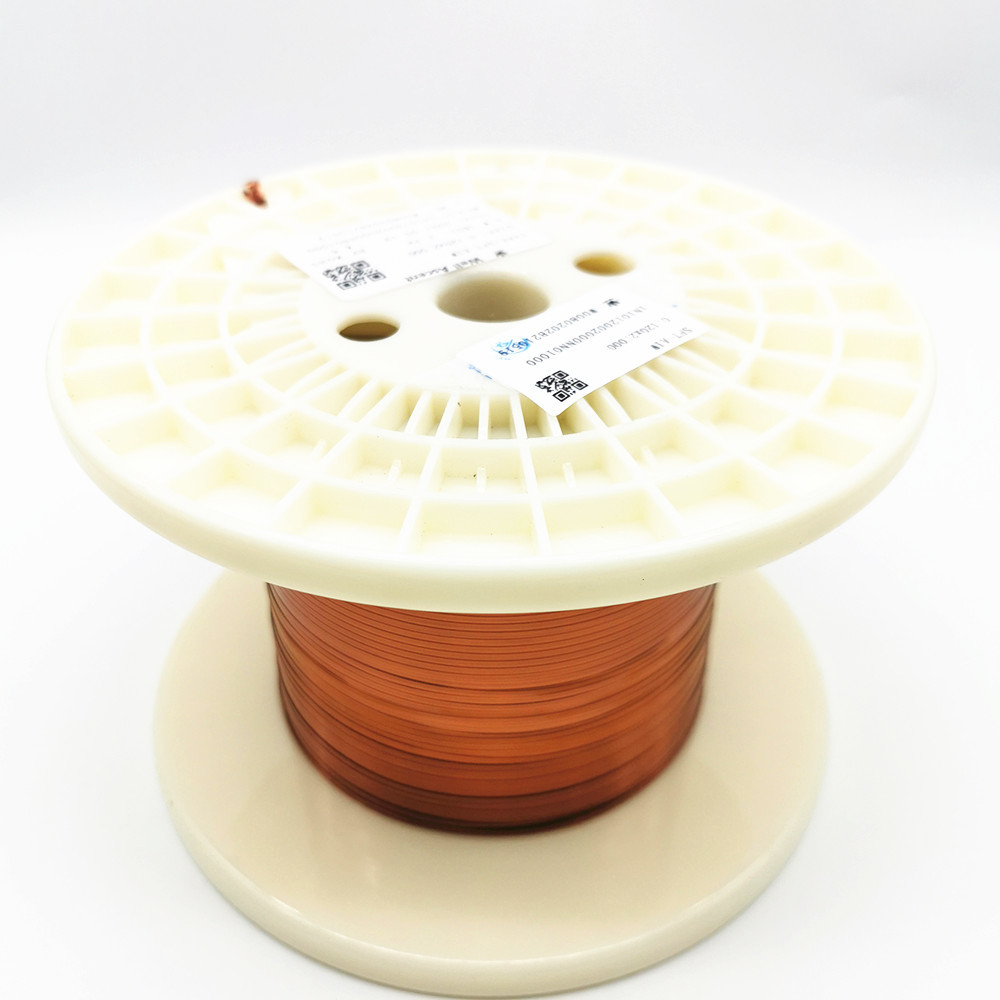

AIW 2.4mm * 0.5 mm Rectangular Enameled Copper For Motor



The size of this rectangular enameled copper wire si 2.4mm in width with 0.5mm in thickness.This rectangular enameled copper wire is mainly used for motor. The insulation of the rectangular enameled copper wire is AIW, UEW and EIW.

We customzied rectangular enameled copper wire, both ordinary rectangular enameled copper wire and self bonding rectangular enameled copper wire.

Rectangular enameled copper wire is typically used in lightweight designs, dry transformers, small transformers and welding transformers.



Name

AIW 2.4mm * 0.5 mm Rectangular Enameled Copper For Motor

Key word

rectangular enameled copper wire

Insulation

Polyurethane

Thermal rating

180 degree

Width

2.4mm

Thickness

0.5mm

Type

rectangular enameled copper wire



Rectangular enameled copper wire, EI-AIWJ 220 2.40*0.5mm
Characteristics
Standard
Test result
APPEARANCE
Smooth, Equality
OK
Conductor diameter(mm)
Width
2.40±0.060
2.375
Thickness
0.50±0.009
0.492
Thickness of insulation(mm)
Width
0.020
0.040
Thickness
0.030
0.045
Overall diameter
Width
2.500
2.415
Thickness
0.550
0.637
Pinhole(Normal state)
Max.3/m
0
Elongation
Min.:≥30%
38
Flexibility and adherence
No crack
OK
Conductor resistance
Max. 15.71
15.11
Breakdown voltage(AC)
Min.0.7kv
1.50
Heatshock
No crack
OK







Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
