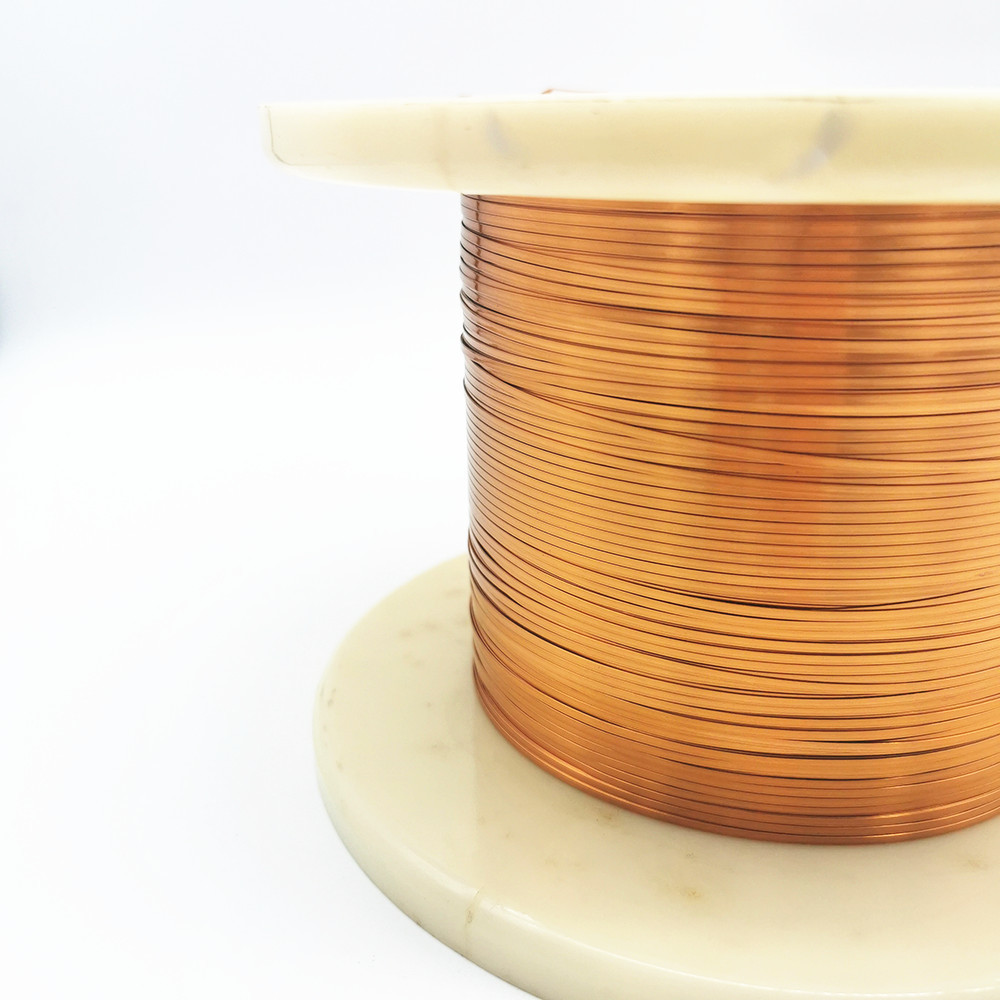

2uew 180 Flat Magnet Wire Super Thin 0.3mm Alcohol Self Bonding

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 1.8*0.3mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enameled Copper Wire Thermal Rating: 155/180
Insulation Material: UEW Width: 1.8mm
Thickness: 0.3mm Type: Self Bonding Wire
High Light:

0.3mm flat magnet wire

,

self bonding flat magnet wire

,

flat copper wire 0.3mm


Product Description

2UEW 180 Super Thin 0.3mm Alcohol Self Bonding Flat Enameled Copper Wire



Rectangular enamelled wire with a high heat and resistance and very good resistance to transformer oils and typical solvents. It is typically used in lightweight designs, dry transformers, small transformers and welding transformers.



Characteristics Standard Test Result
Appearance Smooth Equality Smooth Equality
Conductor Diameter Width 1.80±0.060 1.791
Thickness 0.30±0.009 0.295
Thickness Insulation Width 0.005 0.067
Thickness 0.005 0.043
Min Thickness of Bonding(mm) Width 0.005 0.007
Thickness 0.005 0.009
Overall Diameter Width 1.800-1.885 1.858
Thickness 0.335-0.345 0.338
Pinhole ≤3hole/m 0
Elongation ≥30 % 35
Flexibility and Adherence No crack No crack
Conductor Resistance (Ω/km at 20℃) ≤35.32 32.97
Breakdown Voltage ≥0.7KV 2.5KV
Heat shock No Crack No Crack
Conclution   Pass
