Super Thin 0.2mm Amide Imide Flat Copper Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.0*0.2mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Conductor Material: Copper Conductor Type: Solid
Width: 2.0mm Thickness: 0.2mm
Thermal Class: 220 Insulation: AIW
High Light:

super thin flat copper magnet wire

,

0.2mm flat copper magnet wire

,

amide imide flat enameled copper wire


Product Description

Super Thin 0.2mm Amide-imide Flat Copper Magnet Wire



We provide ultra-fine enameled edge, the paint film is UEW, AIW and EIAIW, the size and paint film can be customized.



Test report
Model SFT-AIW 0.2*2.0
Item Conductor dimension Thickness of insulation Overall dimension Dielectric breakdown voltage Pinhole    Conductor resistance    Elongation   Apperance   Flexibility  Adherence   Thermal shock
Unit

Thickness

(mm)

 Width

(mm)

 Thickness

(mm)

 Width

(mm)

Thickness

(mm)

Width

(mm)

   kv PCS/m

Ω/km 20℃

   % No dirt No crack No  crack No crack
Spec     Ave   0.200 2.000 0.025 0.025
 Max  0.209 2.060 0.040 0.040 2.50 2.10   3 47.130
 Min   0.191 1.940 0.010 0.010     0.700     30
No.1 0.200 2.021 0.019 0.016 0.237 2.053 2.410 0 43.225 39 Not to be scratched, nodirt Good Good Good
Ave 0.200 2.021 0.019 0.016 0.237 2.053 2.163
Result ok ok ok ok ok ok ok ok ok ok ok ok pk ok

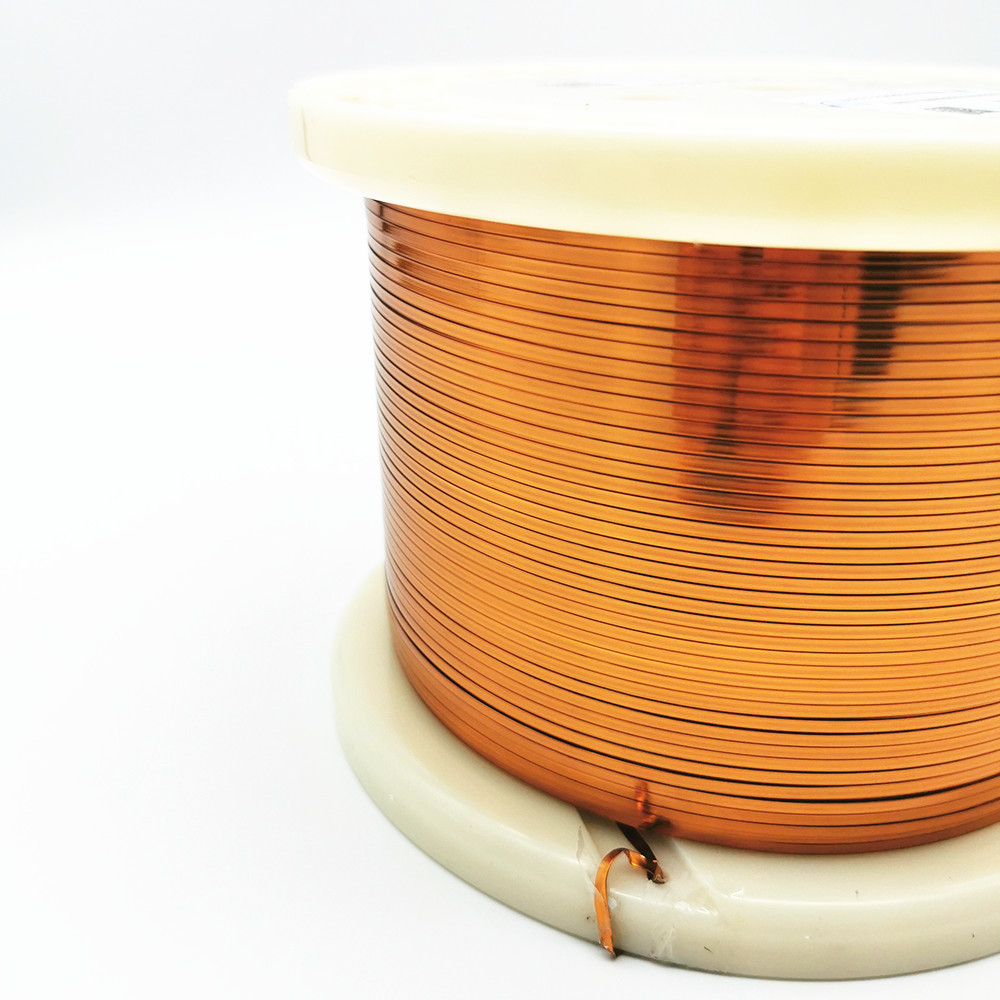

Super Thin 0.2mm Amide Imide Flat Copper Magnet Wire 0









Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand



Super Thin 0.2mm Amide Imide Flat Copper Magnet Wire 1



Our customers

Super Thin 0.2mm Amide Imide Flat Copper Magnet Wire 2
