Uew 180 0.2mm Flat Magnet Wire Polyurethane Insulation

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 1.2*0.2mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Flat Enameled Copper Wire Thermal Rating: 180
Insulation Material: Polyurethane Width: 1.2mm
Thickness: 0.2mm Conductor Material: Copper
High Light:

uew 180 flat magnet wire

,

0.2mm flat magnet wire

,

polyurethane insulation flat wire voice coil


Product Description

UEW 180 0.2mm Flat Enameled Copper Wire Polyurethane Insulation

To meet the design requirements of lower height, smaller volume, lighter weight and higher power density of electronic and motor products, it is widely used in electronics, electrical appliances.

Motor, network communication, smart home, new energy, automotive electronics, medical electronics, military electronics, aerospace technology and other fields.


 Rectangular enameled copper wire, model: SFT-UEWJ180,  1.20 * 0.20 mm

Characteristics

Standard



Test result

Appearance

Smooth, Euiality



ok

Conductor diameter(mm)

Width

1.20±0.060

1.195

Thickness

0.20±0.009

0.197

Thickness of insulation

Width

0.010

0.041

Thickness

0.010

0.035

Overall diameter(mm)

Width

1.250

1.236

Thickness

0.240

1.236

Pinhole(Normal state)

Max ≤3 faults/1m

0

Elongation(%)

Min. ≥30%

40

Solderablity 390℃, 5s

Smooth with no draff

ok

Flexibility and adherence

No crack

ok

Conductor resistance(Ω/km,20℃,)

Max 79.72

74.21

Breakdown voltage(AC)

Min ≥0.70 kv

2.00

Heatshock

No crack

ok

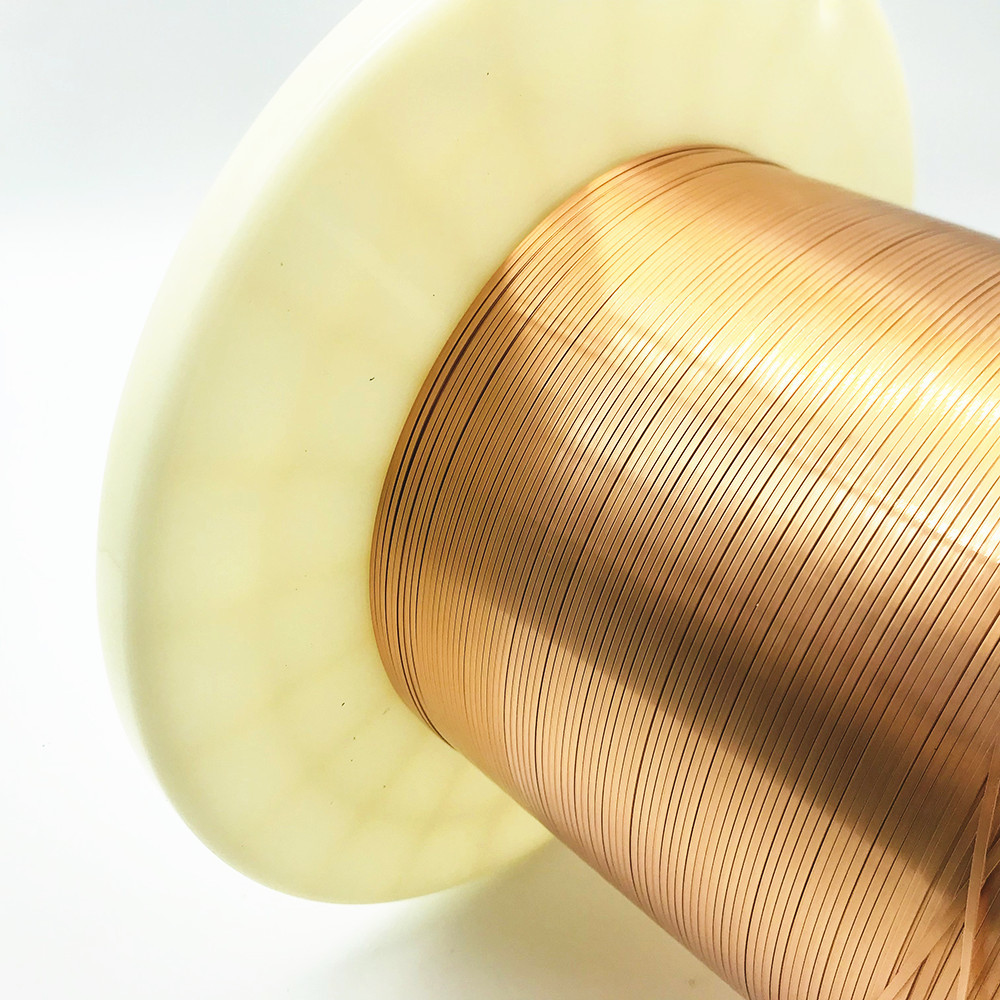

Uew 180 0.2mm Flat Magnet Wire Polyurethane Insulation 0
