0.1mm * 500 Copper Litz Wire 2uewf Pet Insulation

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2UEW-F-PET
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Mylar Litz Wire Thermal Class: 155
Single Wire Diameter: 0.1mm No. Of Strands: 500
Dielectirc Strength: Min. 4000V Insulation Material: PET
High Light:

0.1mm copper litz wire

,

pet insulation copper litz wire

,

0.1mm litz magnet wire


Product Description

0.1mm * 500 2UEWF PET Insulation Copper Litz Wire



This is a customized mylar litz wire, single wire is 0.1mm polyurethane enameled copper wire, 500 strands, PET issulation. This wire is used in the motor.



Item/No. Tech requirement Test report
Single wire diameter (mm) 0.107-0.125 0.110-0.114
Conductor diameter (mm) 0.10±0.003 0.098-0.10
O.D. (mm) 3.88 3.05-3.18
Resistance((Ω/m) 0.004762 0.004408
Dielectric strength( V) Min. 4000 9400
Pitch (mm) 60±3 60
No. of strands 500 500
Tape overlap % Min.50 52

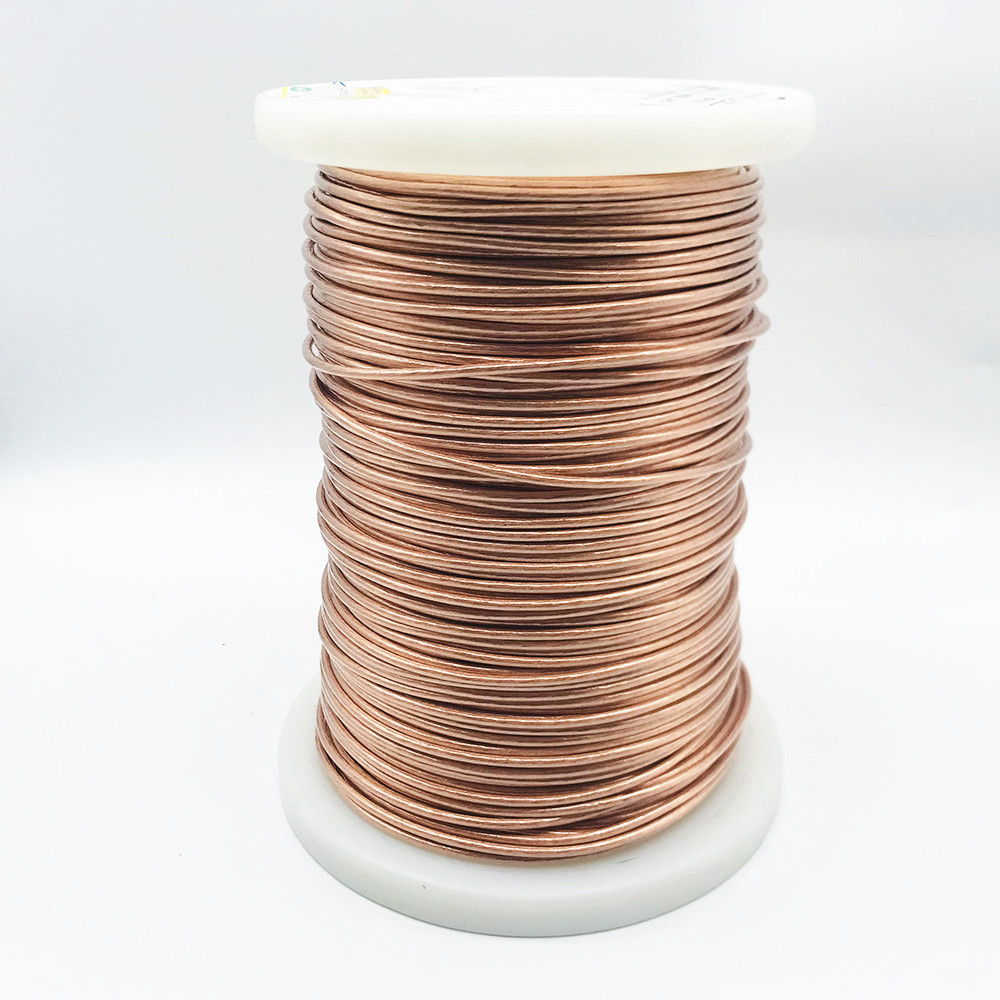

0.1mm * 500 Copper Litz Wire 2uewf Pet Insulation 0
