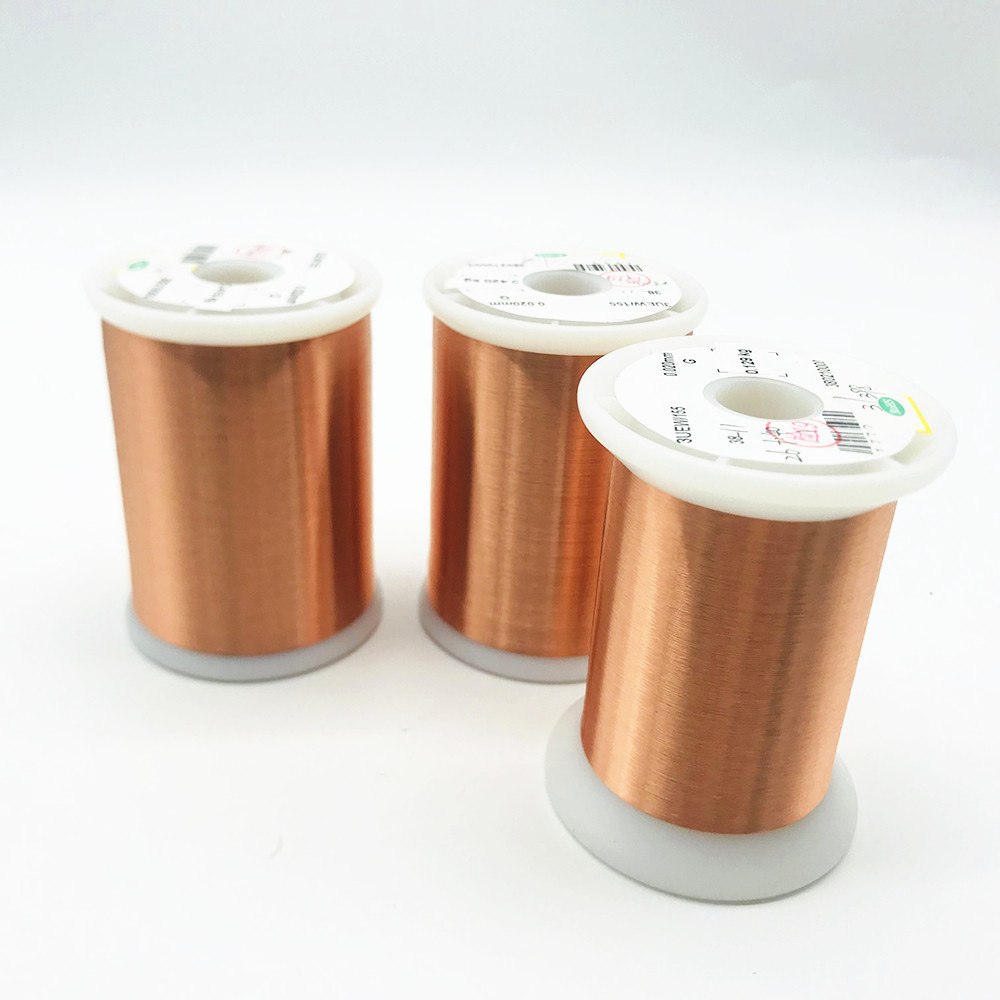

46 Awg Magnet Wire Class 155 0.04mm Copper Enameled

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.04mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Enameled Copper Wire Diameter: 0.04mm/46AWG
Insulation: Polyurethane Thermal Grade: 155
Conductor Material: Copper Conductor Type: Solid
High Light:

46 awg magnet wire

,

class 155 magnet wire

,

enameled wire 0.04mm


Product Description

Polyurethane 46 awg Class 155 0.04mm Copper Magnet Wire



Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of
transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding.This single-strand wire is annealed for improved ductility.



Characteristics
Technical requests
Test Results
Sample 1
Sample 2
Surface
Good
OK
OK
Bare Wire Diameter
0.040±0.001
0.04
0.04
Coating Thickness
≥ 0.006 mm
0.011
0.01
Overall Diameter
≤ 0.052 mm
0.051
0.05
Conductor Resistance
≤ 14.433 Ω/m
13.736
13.768
Elongation
≥ 11 %
14
15
Breakdown Voltage
≥ 325 V
1178
1076
Pinhole Test
≤ 5 hole /5m
0
0
Continuity
----
----
----
Test Items
Technical Requests
Result

Adhesive
Coating layer is good
OK

Cut-through
200℃ 2min no breakdown
OK

Heat Shock
175±5℃/30min no crack
OK

Solder Ability
390± 5℃ 2Sec Smooth
OK
