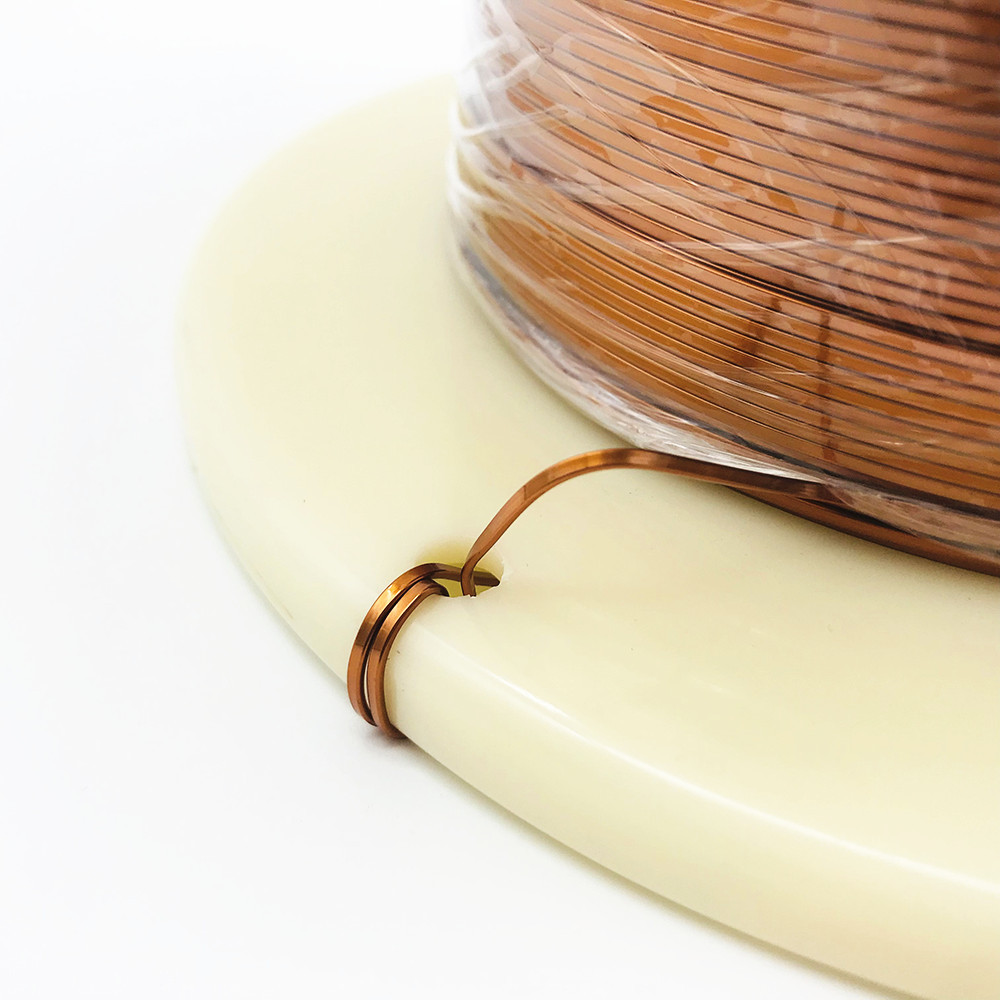

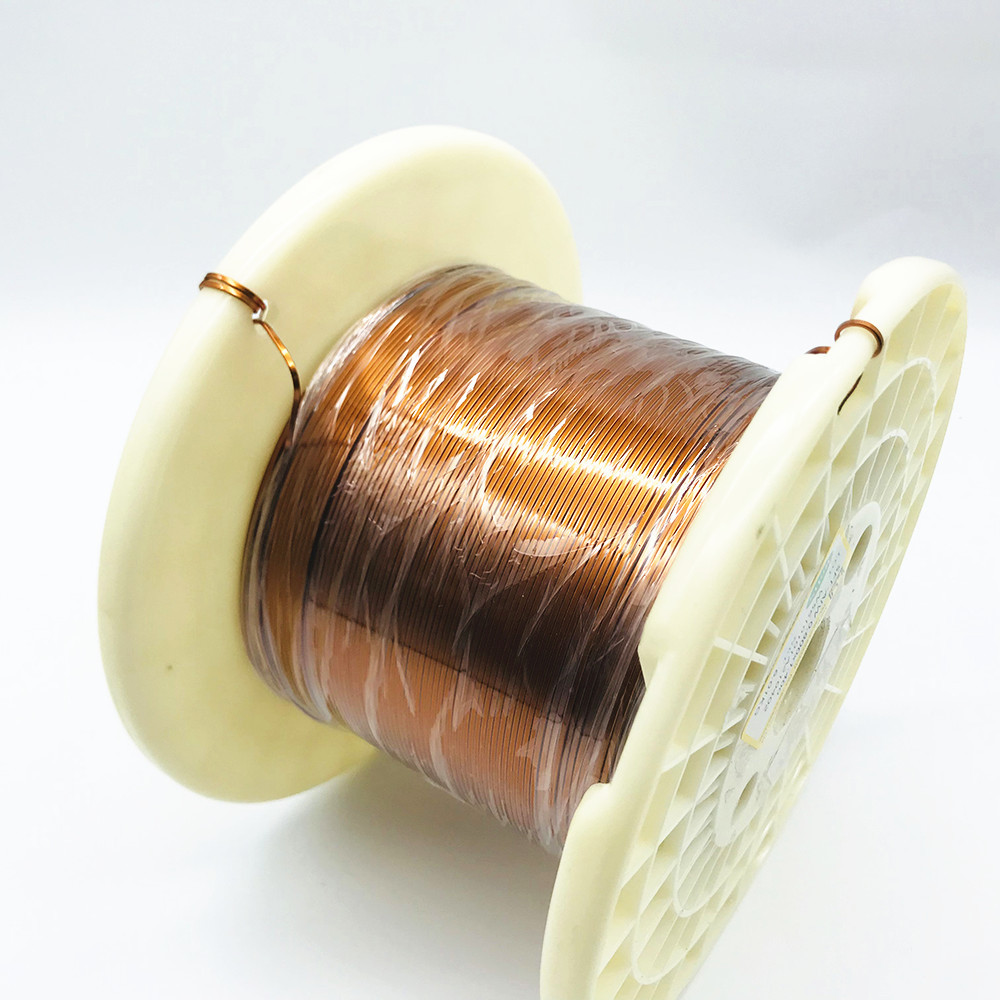

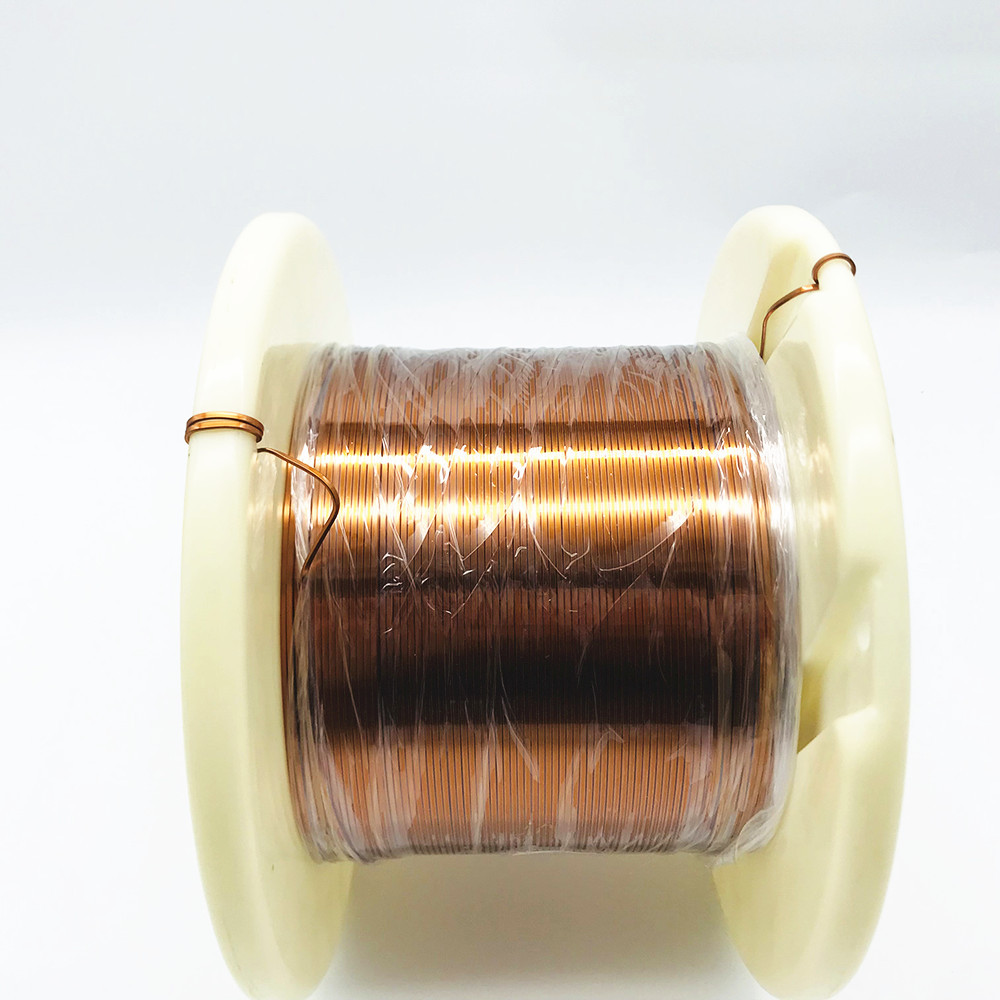

AIW Rectangular Copper Enamel Wire Class 220 2.0*1.0mm

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 2.0*1.0mm
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: Rectangular Enameled Copper Wire Thermal Rating: 220
Insulation Material: AIW Width: 2.0mm
Thickness: 1.0mm
High Light:

amide imde copper enamel wire

,

rectangular copper enamel wire

,

rectangular 1 mm copper wire


Product Description

Amide-imde Class 220 2.0*1.0mm Enameled Rectangular Copper Wire For Motor



We supply rectangular enameled copper wire, it' widely used in motor. The rectangular enameled copper wire can be customized the flat copper wire to your needs.Thickness range from 0.04mm-1.8mm. width from 0.115mm-7.5mm, class 180 and class 220 with or without self bonding layer are available.



Characteristics
Standard
Test Result
Appearance
Smooth Equality
Smooth Equality
Conductor Diameter
Width
2±0.060
1.982
Thickness
1±0.060
0.981
Thickness Insulation
Width
0.02
0.055
Thickness
0.03
0.064
Overall Diameter
Width
2.1
2.037
Thickness
1.05
1.045
Pinhole
≤3hole/m
0
Elongation
≥30 %
39
Flexibility and Adherence
No crack
No crack
Conductor Resistance (Ω/km at 20℃)
≤10.27
9.53
Breakdown Voltage
≥0.7KV
2.3KV
Heat shock
No Crack
No Crack



AIW Rectangular Copper Enamel Wire Class 220 2.0*1.0mm 0
