AIW 220 5.0*0.5mm Flat Enameled Rectangular Copper Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 5*0.5mm
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
High Light:

AIW 220 Enamelled Copper Winding Wire

,

AIW 220 Rectangular Copper Wire

,

5*0.5mm Rectangular Copper Wire


Product Description

AIW220 5.0*0.5mm Flat Enameled copper Wire For Motor Rectangular Copper Wire



Rectangular enameled copper wire is a core product in everyday products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Round and rectangular enameled copper wire Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.



Model:SFT-EI/AIWJ 220 size: 5.0mm*0.5mm
Item
Characteristics
Standard
Test Result
1
Apperance
Smooth Equality
Smooth Equality
2
Conductor Diameter
Width
5.0
±0.006
4.989
Thickness
0.5
±0.009
0.498
3
Thickness Insulation
Width
≥0.020
0.049
Thickness
≥0.030
0.050
4
Overall Diameter
Width
≤5.100
5.038
Thickness
≤0.550
0.542
5
Pinhole
≤3hole/m
0
6
Elongation
≥30 %
40
7
Flexibility and Adherence



No crack
No crack
8
Conductor Resistance (Ω/km at 20℃)
≤7.26
7.12
9
Breakdown Voltage
≥0.7KV
1.5KV
10
Heat shock
No Crack
No Crack

Conclution

Pass

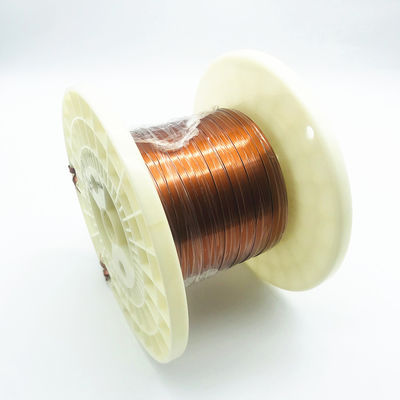

AIW 220 5.0*0.5mm Flat Enameled Rectangular Copper Wire 0
