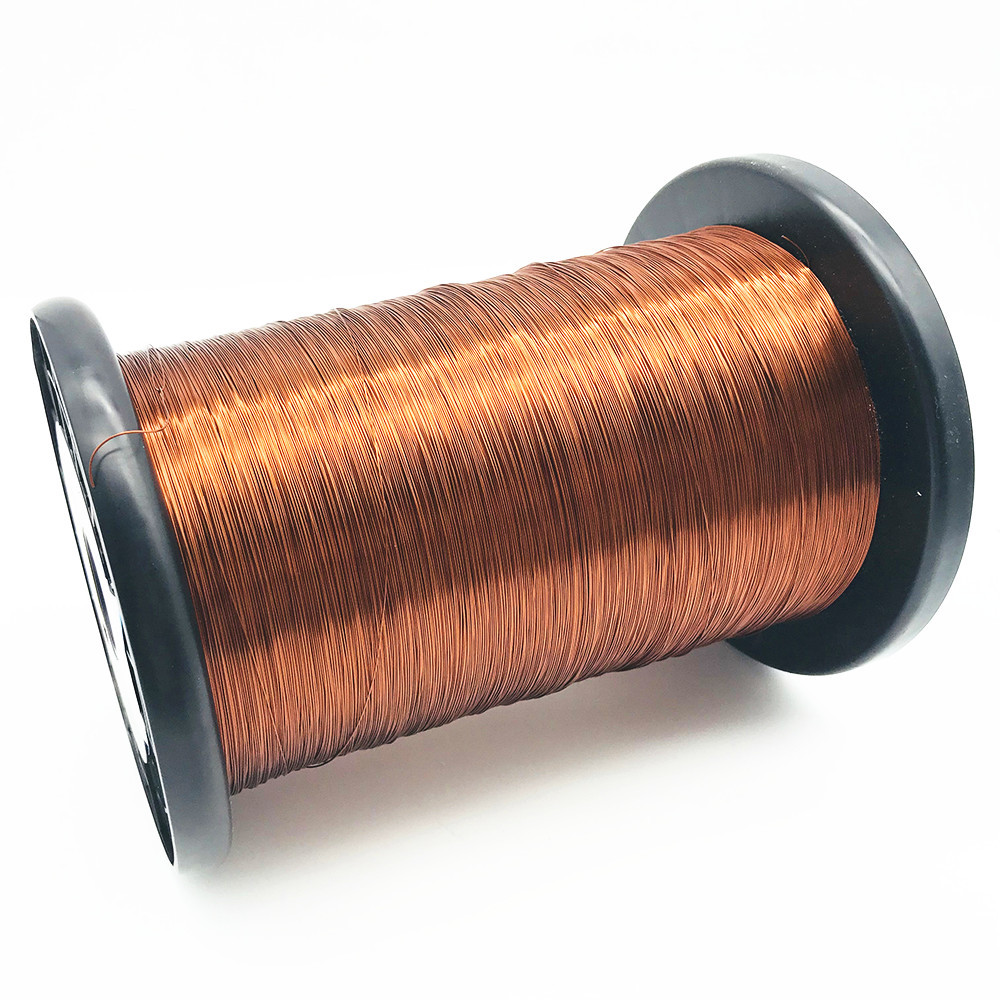

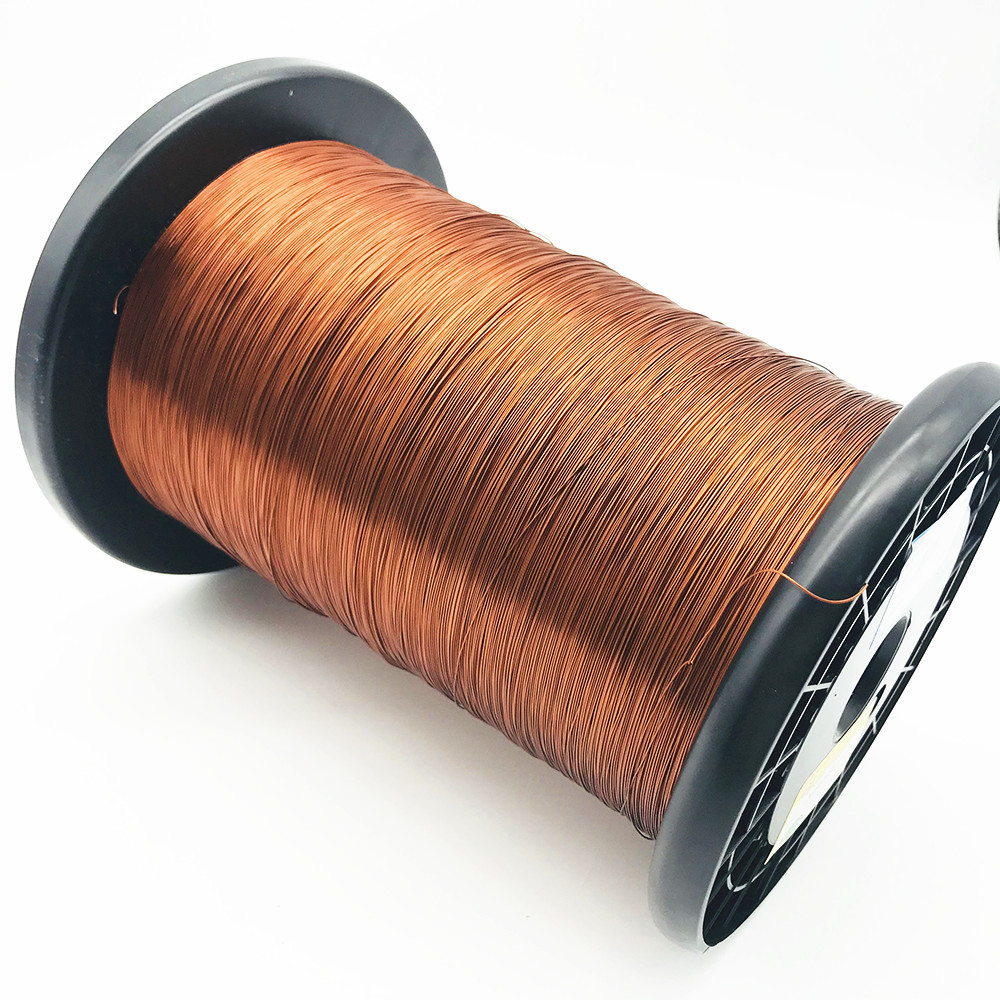

5000v 0.5mm Fiw Enameled Copper Winding Wire For Motor

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: FIW
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: FIW Material: Copper
Size: 0.5mm Insulation: UEW
Thermal Rating: 180
High Light:

5000v enameled copper winding wire

,

0.5mm enameled copper winding wire

,

fiw enameled copper winding wire


Product Description

5000V 0.4mm FIW Wire Enameled Copper Insulated Wire For Motor Winding



Fully insulated (FIW) zero-defect enamelled round copper wire is the wirewith highthermal class, Zero-defect strengthened insulation and highvoltage resistance compliance with IEC60317-56 / IEC60950U and NEMAMW85-C. FIW is an alternative wire to build electronic transformerstypically using TIW (Triple Insulated Wires)The wire can meet therequirements of miniaturized components,good winding performance andlow cost, applied small transformer, electronic switch etc.

Nom.Diameter(mm)

Min. Breakdown voltage (V)
Grade ofFIW3
Grade ofFIW4
Grade ofFIW5
Grade ofFIW6
0.040
1458
2349
3159
3969
0.050
1782
2673
3564
4455
0.060
2025
3159
4212
5265
0.071
2187
3159
4212
5265
0.080
2268
3402
4536
5670
0.090
2430
3564
4698
5832
0.100
2592
3888
5184
6480
0.120
2888
4256
5624
6992
0.140
3116
4636
6156
7676
0.160
3420
5092
6764
8436
0.180
3724
5548
7372
9196
0.200
3952
5852
7752
9652
0.250
4712
6992
9272
11552
0.300
5244
7600
9956
12312
0.400
5460
7630
9800
11970



5000v 0.5mm Fiw Enameled Copper Winding Wire For Motor 0
