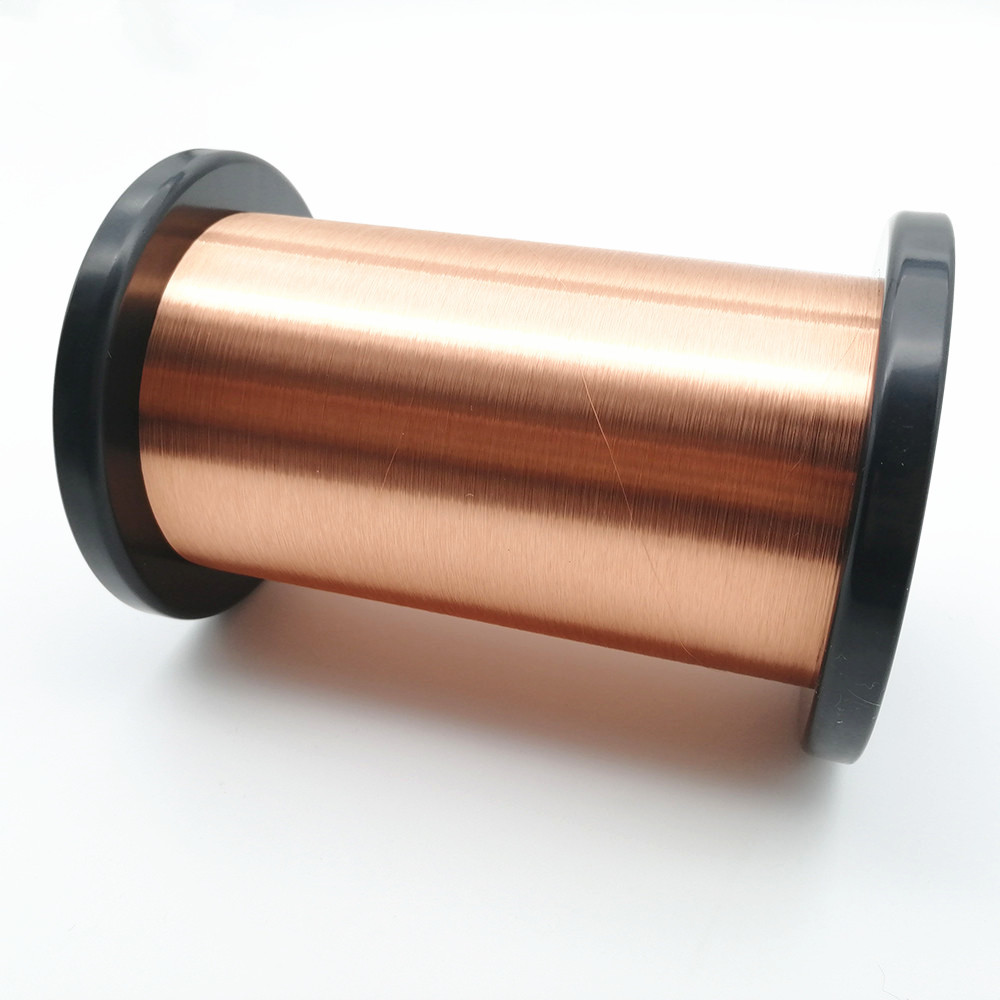

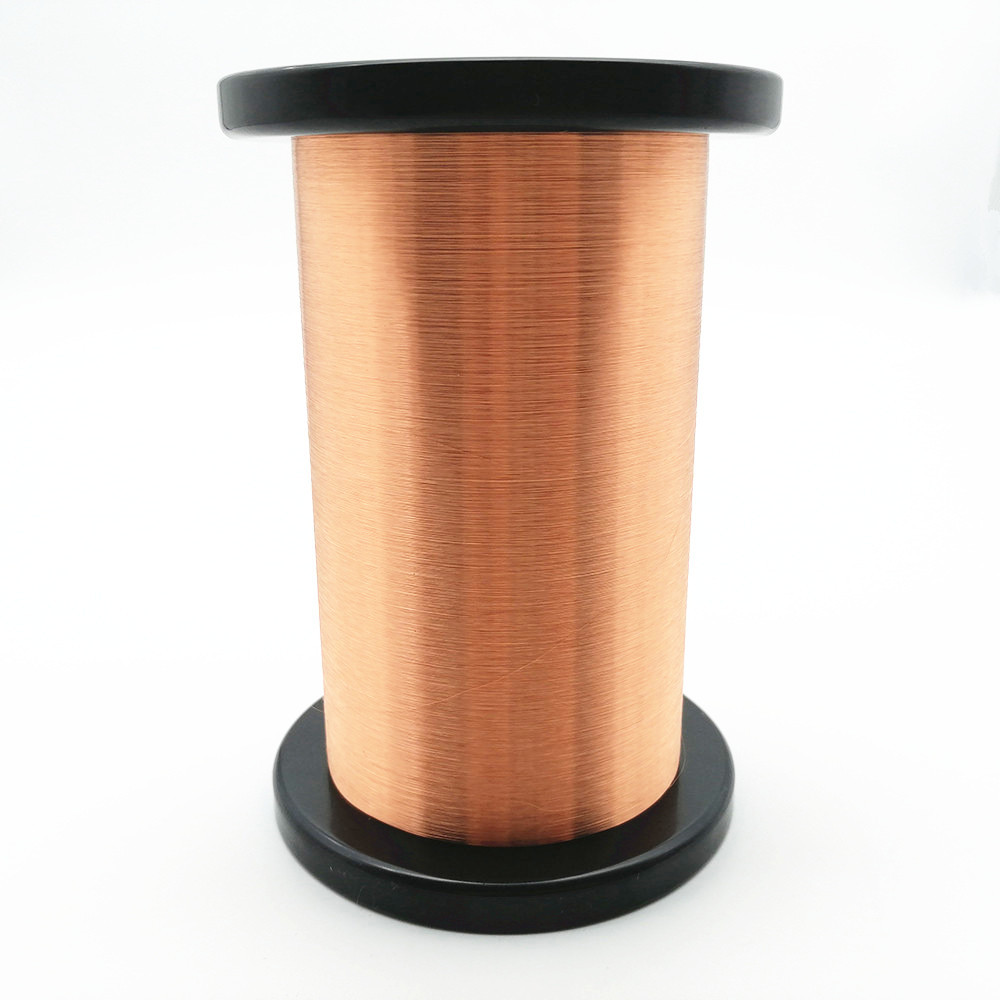

2 UEW / 155 0.03mm Enameled Wire For Watch / Touch Screen

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.03
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
Product Name: Magnet Wire Diameter: 0.03mm
Material: Copper Insulation: UEW
Thermal Grade: 155 Breakdown Voltage: 250v
High Light:

2uew enameled wire

,

0.03mm enameled wire

,

Touch Screen enameled wire


Product Description

2 UEW / 155 0.03mm PU Copper Wire Ultra Fine Enameled Copper Wire For Watch / Touch Screen



We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...





2 UEW / 155 0.03mm Enameled Wire For Watch / Touch Screen 0





  Characteristics Technical requests Test Results Conclusion
Sample 1 Sample 2 Sample 3
1 Surface Good OK OK OK OK
2 Bare Wire Diameter 0.030± 0.001 0.0300 0.0300 0.0300 OK
0.001
3 Coating Thickness ≥ 0.005 mm 0.0080 0.0090 0.0090 OK
4 Overall Diameter ≤ 0.040 mm 0.0380 0.0390 0.0390 OK
5 Conductor Resistance ≤ 26.103 Ω/m 24.453 24.486 24.472 OK
6 Elongation ≥ 10 % 16 15 16 OK
7 Breakdown Voltage ≥ 250 V 689 842 465 OK
8 Pinhole Test ≤ 5 hole/5m 0 0 0 OK
  Remark:
  Test Items Technical Requests Results

Conclusion:

Approved

1 Adhesive Coating layer is good OK
2 Cut-through 200℃ 2mins no breakdown OK
3 Heat Shock 175±5℃/30min no crack OK Audit by Tested by
4 Solder Ability 390± 5℃ 2 Sec Smooth OK   Pan Lihong
5 Solvent Resistance No blister, no expansion, no shed OK
