38 AWG 0.1mm * 220 Strands Copper Litz Wire High Voltage

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.01mm * 220
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
Product Name: Litz Wire Single Wire Diameter: 0.1mm / AWG 38
No. Of Strands: 220 Thermal Grade: 155
Insulation: UEW Conductor Material: Copper
High Light:

38 AWG Copper Litz Wire

,

0.1mm Copper Litz Wire

,

High Voltage Copper Litz Wire


Product Description

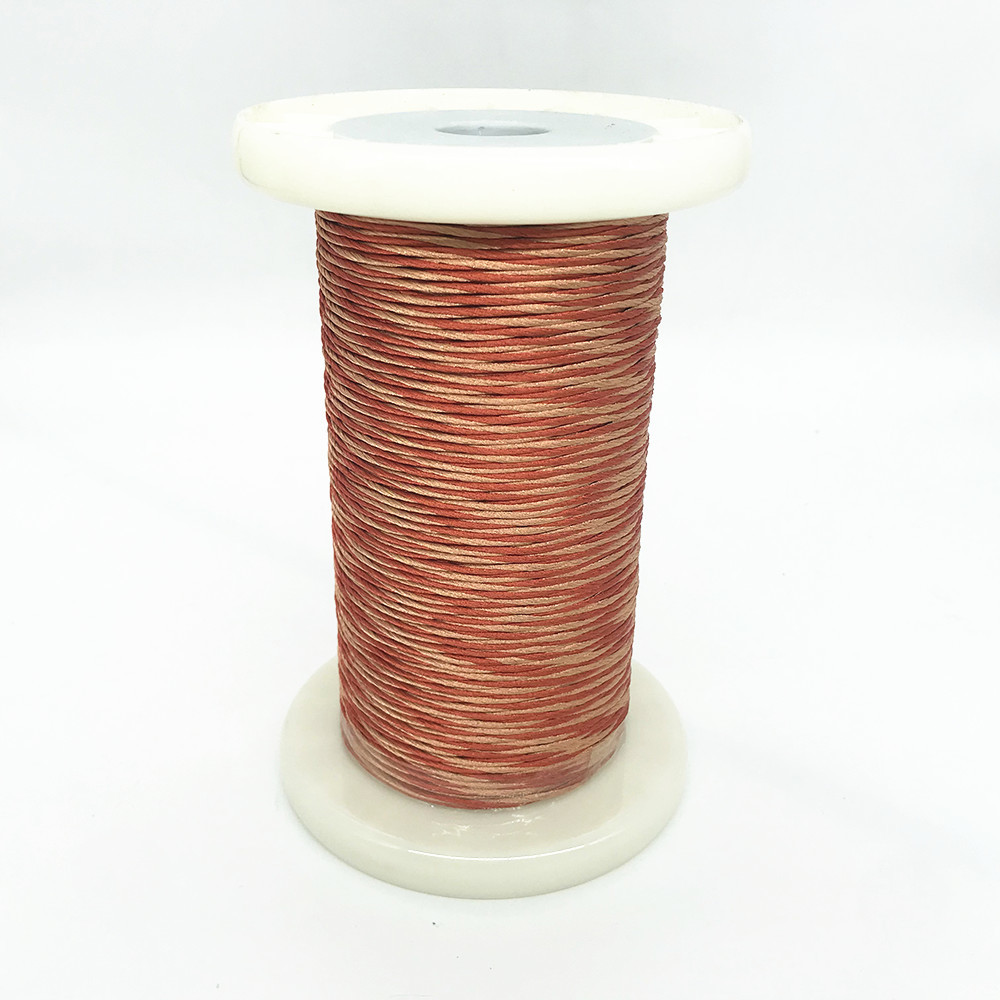

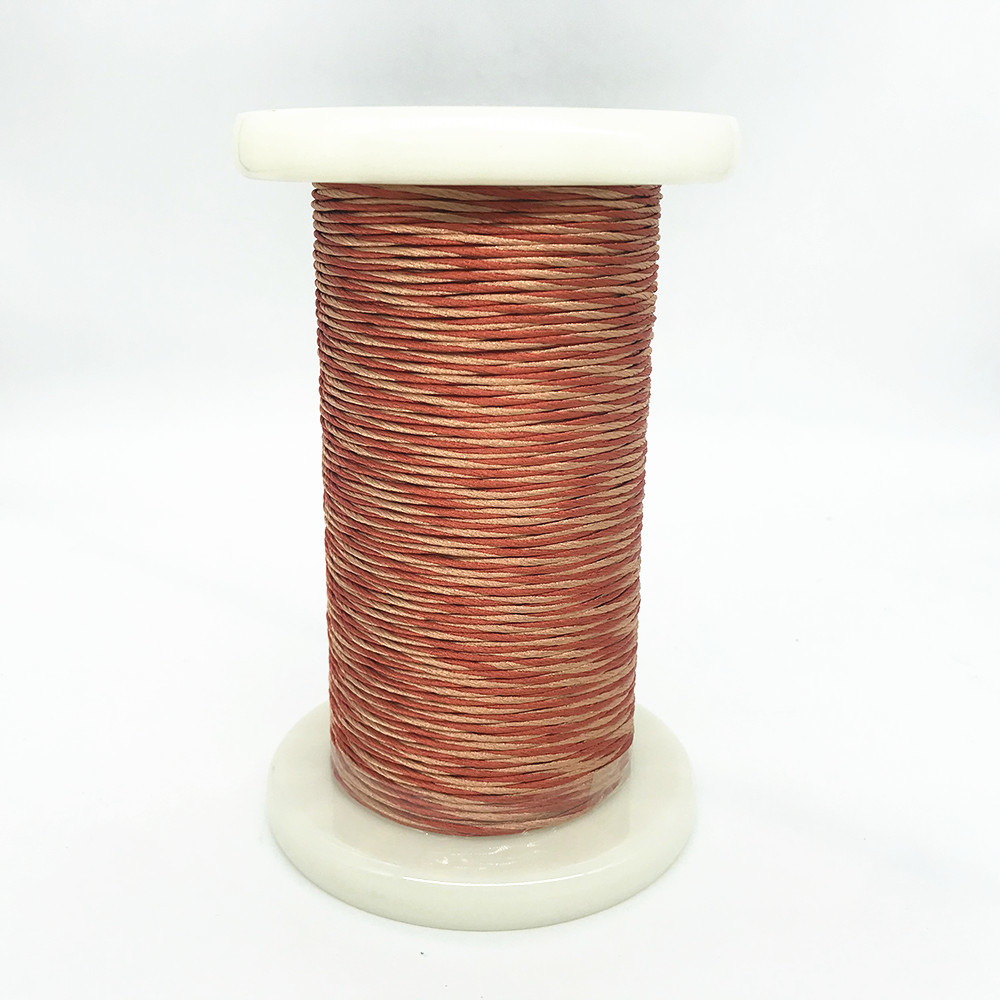

38 AWG 0.1mm * 220 Strands High Voltage Double Color Stranded Wire Copper Litz Wire



Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.





38 AWG 0.1mm * 220 Strands Copper Litz Wire High Voltage 0





Description/conductor diameter*strand number 1UEW/155 0.10X220
Conductor diamter(mm) 0.100±0.006 mm 0.10mm
Maximal overall diameter(mm) 0.118±0.125 mm 0.12mm
Stranding direction S S
Strand number 220 220
Mini breakdown voltage(Ω/km 20℃) Min.1500v 2200v
