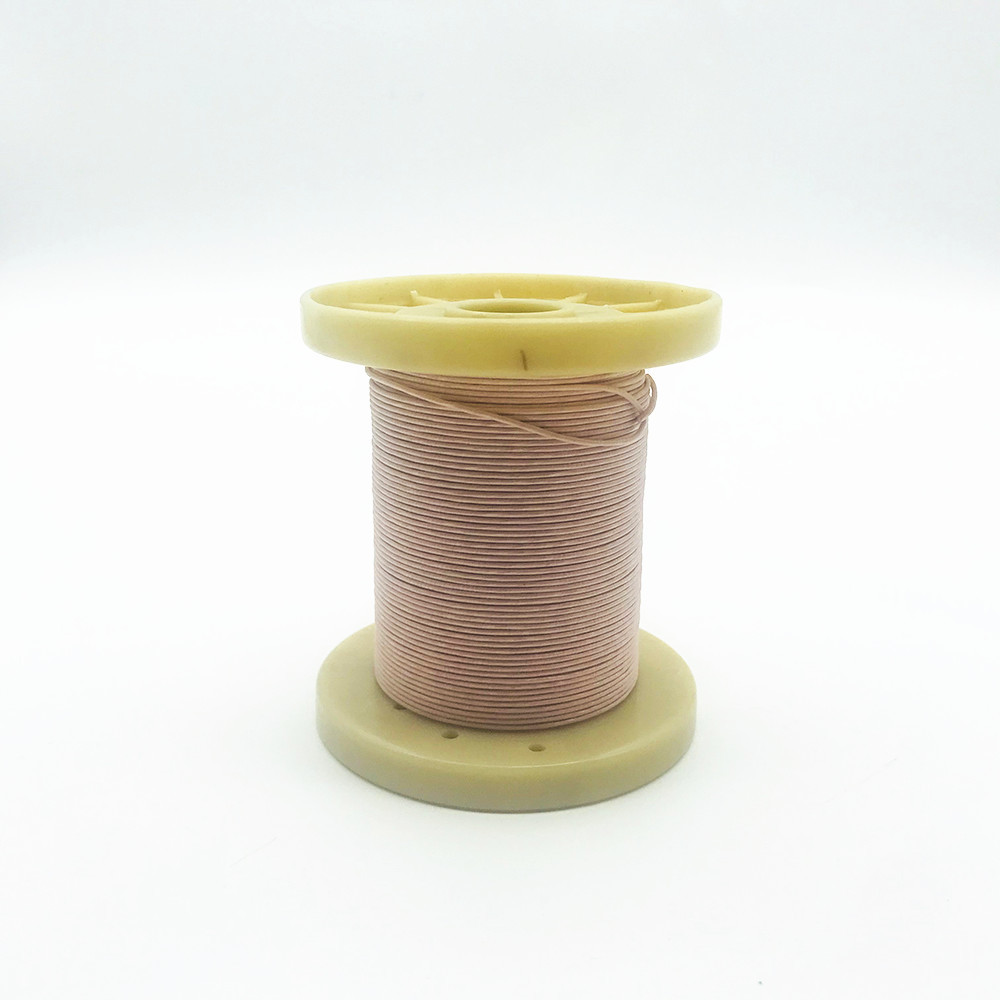

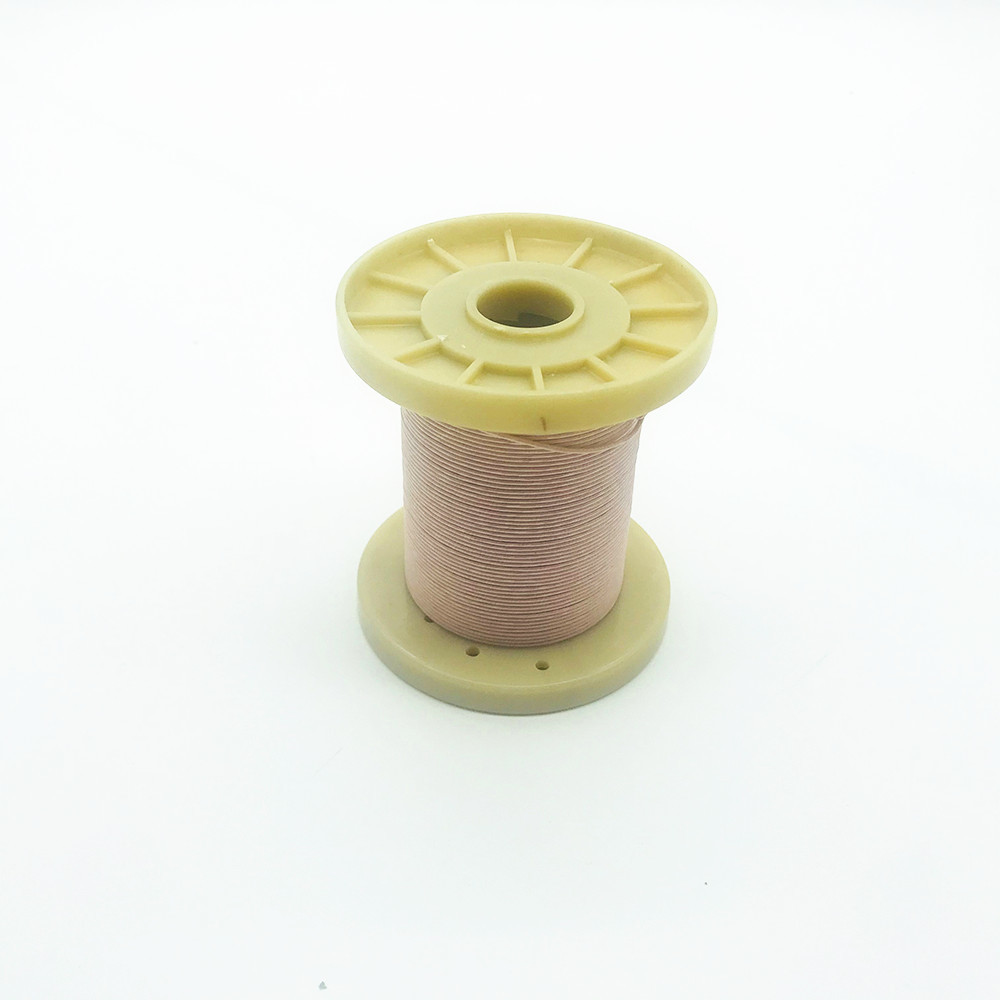

0.1mm * 60 USTC Silk Covered Stranded Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm * 60
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Silk Covered Litz Wire No. Of Strands: 60
Single Wire Diameter: 0.1mm Voltage: 1500V Min.
Thermal Grade: 155
High Light:

Stranded Copper Litz Wire

,

Silk Covered Copper Litz Wire

,

Litz 0.1 mm wire


Product Description

0.1mm * 60 Strands USTC Silk Covered Stranded Wire Copper Litz Wire



Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.





FEATURES AND BENEFITS

(a) Minimize the power losses due to "skin effect".

(b) Superior "Q" characteristics at high frequencies.

(c) Excellent resistance to abrasion and solvent,
(d) Excellent electricity performance
(e) Excellent heat shock, adherence and flexibility
(f) High cut through





Characteristics
Technical requests
Test Results
Conductor diameter(mm)
0.1±0.007
0.095
Overall conductor diameter(mm)
0.105-0.125
0.106-0.109
No. Of strands
60
Maximum outer diameter(mm)
1.16
0.93-0.98
Pitch(mm)
27±3
Maximum Resistance(Ω/m 20℃)
0.04357
0.0401
Minimum Breakdown Voltage(V)
1100
3200
Solderability
380±5℃, 7s
Pinhole(faults/6m)
Max. 40
6



0.1mm * 60 USTC Silk Covered Stranded Copper Litz Wire 0
