Product Name: | Enameled Copper Wire | Type: | Solid |
---|---|---|---|
Diameter: | 0.02mm | Insulation: | Polyurethane |
Thermal Class: | 155/180/220 | Port: | Tianjin |
High Light: | 2UEW Magnet Winding Wire,Polyurethane Insulation Magnet Winding Wire,0.02mm Enameled Copper Wire |

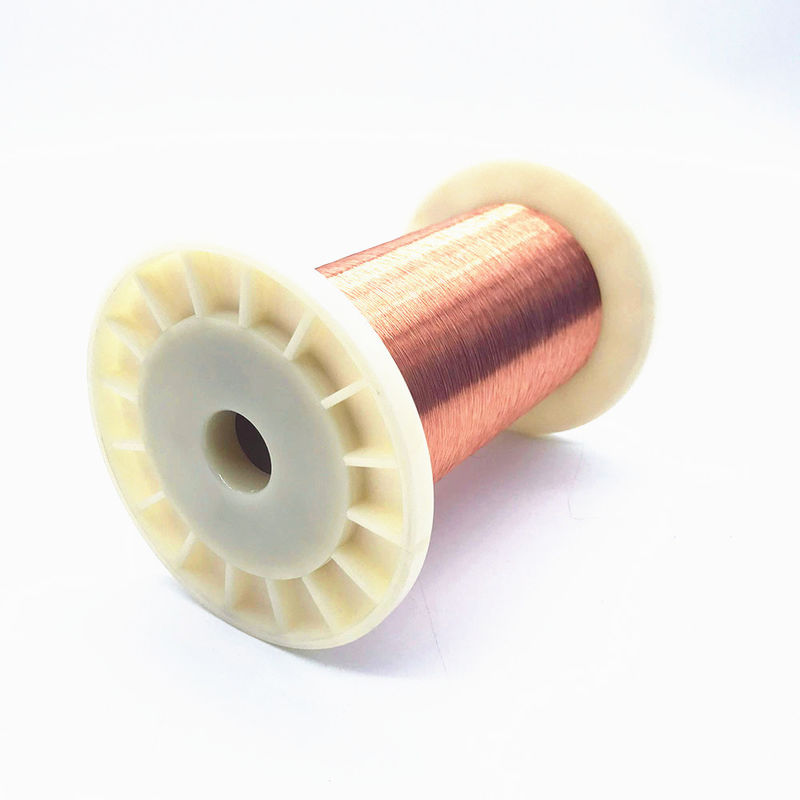

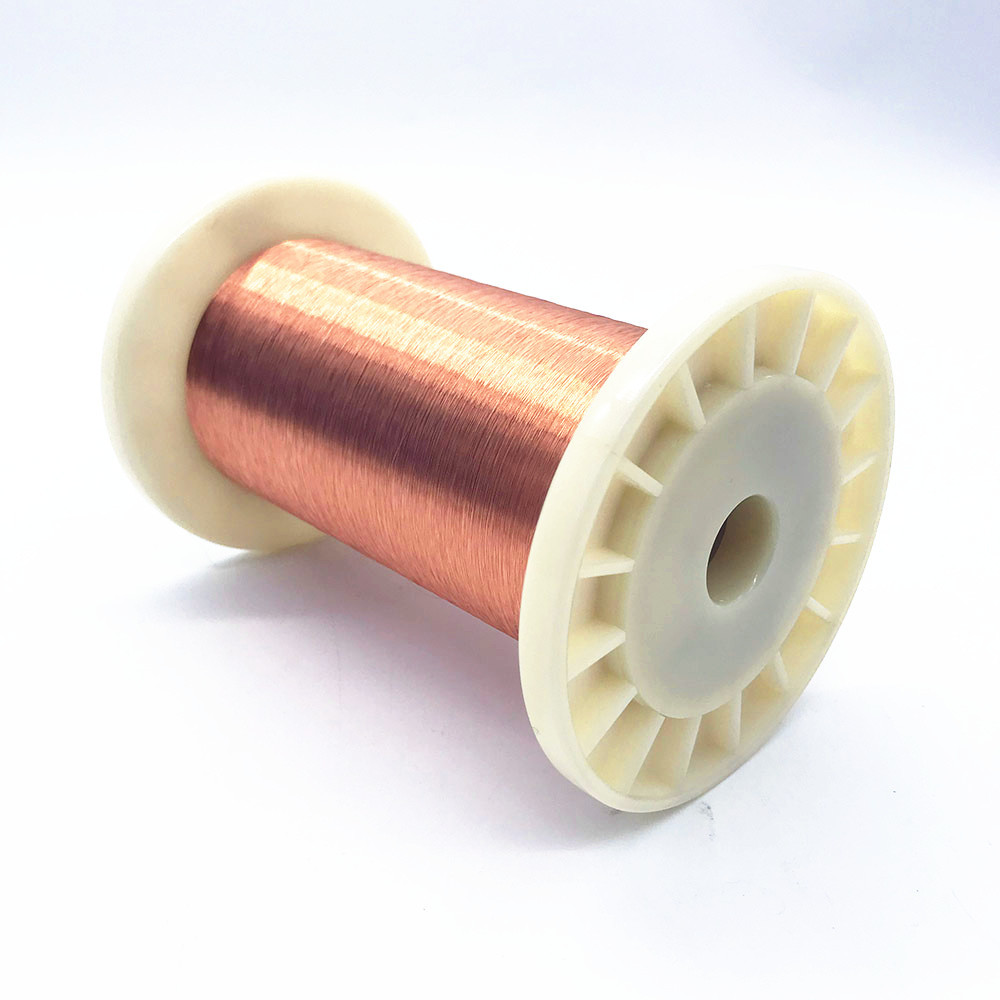

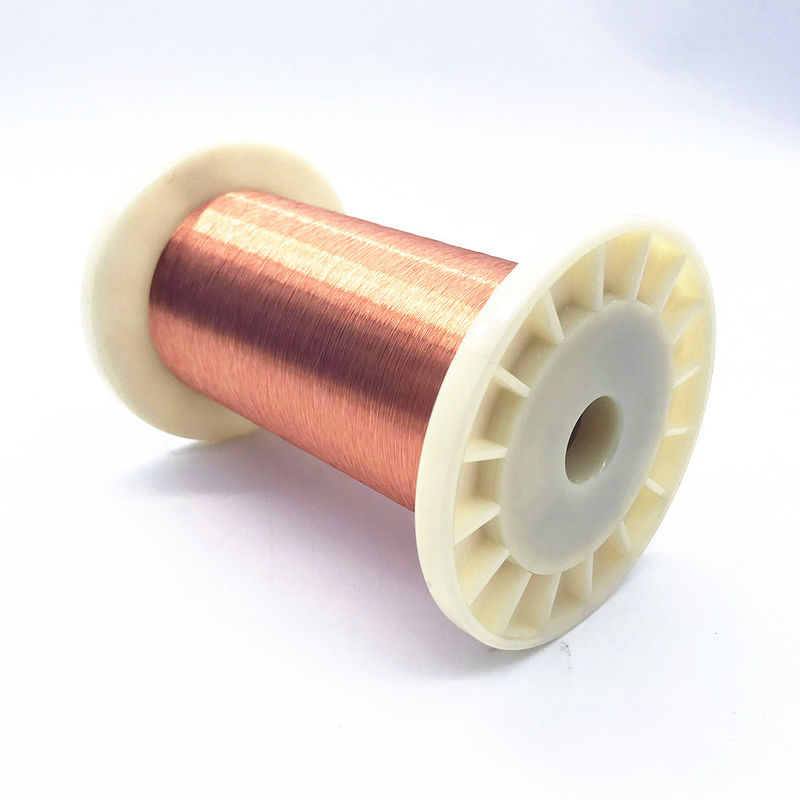

2UEW Magnet Winding Wire 0.012mm-0.08mm Ultra Thin Enameled Copper Wire
The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.
Advantages Of Enameled Copper Wire
a) High resistance to heat shock.
b) High temperature.
c) Good performance in cut-through.
d) Suitable for high-speed automated routing.
e) Able to be direct weld, with no pinhole.
f) Resistive to high frequency, wearing, refrigerants and electronics corona.
g) High breakdown voltage, small dielectric loss angle.
h) Environment-friendly.
Specification
Characteristics |
Technical requests |
Test Results |
Conclusion |
||
Sample 1 |
Sample 2 |
||||
Surface |
Good |
OK |
OK |
OK |
|
Bare Wire Diameter |
0.020± |
0.001 |
0.02 |
0.02 |
OK |
0.001 |
|||||
Coating Thickness |
/ |
/ |
/ |
OK |
|
Overall Diameter |
0.022-0.024 |
0.023 |
0.023 |
OK |
|
Conductor Resistance |
≤60.810Ω/m |
56.812 |
56.403 |
OK |
|
Elongation |
≥8% |
10% |
10% |
OK |
|
Breakdown Voltage |
≥130V |
212 |
247 |
OK |
|
Pinhole Test |
≤ 8 holes/5m |
1 |
0 |
OK |
|
Test Items |
Technical Requests |
|
Results |
|
|
Adhesive |
Coating layer is good |
|
OK |
|
|
Cut-through |
200℃ 2mins no breakdown |
|
OK |
|
|
Heat Shock |
180±5℃/30min no crack |
|
OK |
|
|
Solder Ability |
390± 5℃ 2 Sec Smooth |
|
OK |
|
