| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | UEW |
| Minimum Order Quantity: | 50kgs |
| Packaging Details: | Carton |
| Delivery Time: | 7-15 work days |
| Payment Terms: | Negotiation, L/C, T/T |
| Supply Ability: | Satisfy your demand |
| Conductor Thickness: | 0.025-0.6mm | Standard: | IEC/JIC/NEMA |
|---|---|---|---|
| Material: | Round Copper | Conductor: | Aluminum And Copper |
| Thermal Class: | 155 | Insulation: | UEW/polyurethane |
| High Light: | Ultra Fine Enamel Coated Magnet Wire,Ultra Fine Self Bonding Wire,Class 155 Self Bonding Wire |
||
Class 155 ROUND SELF BONDING WIRE LOCK CCA ENAMELED COPPER CLAD ALUMINUM FOR VOICE COIL

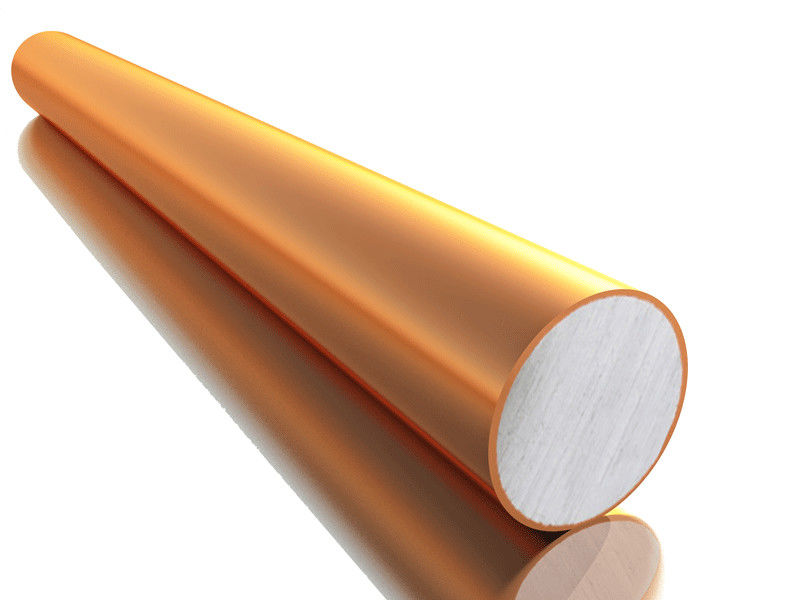

CCA is an electrical conductor composed of an inner aluminium core and outer copper cladding,The primary applications of this conductor revolve around weight reduction requirements. These applications include high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables.
FEATURES
Light weight. Only 50% of copper at the same length
Solderability
Good ductility and bending strength
High fidelity sound quality
APPLICATION

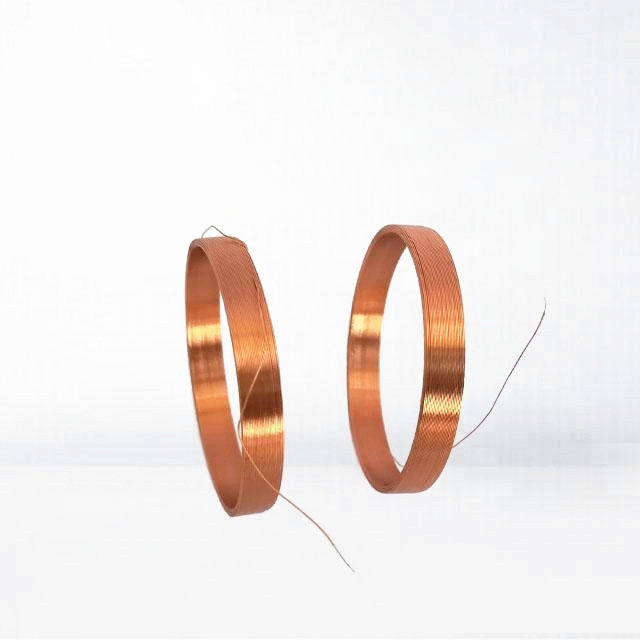

Micro voice coil speakers
Microphones,
buzzer
HIFI stereos
|
Copper Clad aluminum wire (CCA) |
|||||||||||||
|
Dia |
Tolerance (mm) |
Resistance/Ω/m20℃ |
Elongation% |
G2 |
Min.Insulation(mm) |
Min Adhesive (g) |
G2 Max OD |
Min.Insulation(mm) |
Min Adhesive (g) |
||||
|
(mm) |
Max OD |
(mm) |
|||||||||||
|
|
SKHT |
KHT |
SKHT |
KHT |
(mm) |
Insulation |
Bonding layer |
|
Insulation |
Bonding layer |
|||
|
0.025 |
0.025±0.001 |
52.42±5% |
56.18±5% |
3 |
3 |
0.037 |
0.002 |
0.002 |
5 |
0.032 |
0.002 |
0.001 |
2 |
|
0.03 |
0.030±0.001 |
36.40±7% |
39.03±7% |
4 |
4 |
0.043 |
0.002 |
0.002 |
5 |
0.04 |
0.002 |
0.001 |
2 |
|
0.035 |
0.035±0.001 |
26.75±7% |
28.67±7% |
5 |
5 |
0.048 |
0.002 |
0.002 |
5 |
0.045 |
0.002 |
0.001 |
3 |
|
0.04 |
0.040±0.001 |
20.48±7% |
21.95±7% |
6 |
6 |
0.055 |
0.002 |
0.002 |
5 |
0.052 |
0.002 |
0.001 |
3 |
|
0.045 |
0.045±0.001 |
16.18±7% |
17.34±7% |
7 |
7 |
0.06 |
0.002 |
0.002 |
8 |
0.057 |
0.002 |
0.001 |
3 |
|
0.05 |
0.050±0.002 |
13.11±7% |
14.05±7% |
5 |
8 |
0.067 |
0.003 |
0.003 |
8 |
0.064 |
0.003 |
0.0015 |
5 |
|
0.055 |
0.055±0.002 |
10.83±7% |
11.61±7% |
8 |
8 |
0.073 |
0.003 |
0.003 |
8 |
0.069 |
0.003 |
0.0015 |
5 |
|
0.06 |
0.060±0.002 |
9.10±7% |
9.76±7% |
9 |
9 |
0.078 |
0.003 |
0.003 |
8 |
0.075 |
0.003 |
0.0015 |
5 |
|
0.065 |
0.065±0.002 |
7.75±7% |
8.25±7% |
11 |
11 |
0.084 |
0.003 |
0.003 |
8 |
0.08 |
0.003 |
0.0015 |
5 |
|
0.07 |
0.070±0.002 |
6.69±7% |
7.11±7% |
12 |
12 |
0.09 |
0.003 |
0.003 |
8 |
0.085 |
0.003 |
0.0015 |
5 |
|
0.075 |
0.075±0.002 |
5.82±7% |
6.19±7% |
12 |
12 |
0.096 |
0.003 |
0.003 |
10 |
0.09 |
0.003 |
0.0015 |
8 |
|
0.08 |
0.080±0.002 |
5.12±7% |
5.36±7% |
14 |
14 |
0.101 |
0.003 |
0.003 |
10 |
0.097 |
0.003 |
0.002 |
8 |
