2UEW 0.3mm Self Bonding Magnet Wire Enamelled Copper Winding Wire For Voice Coils IEC Standard

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 2UEW
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation

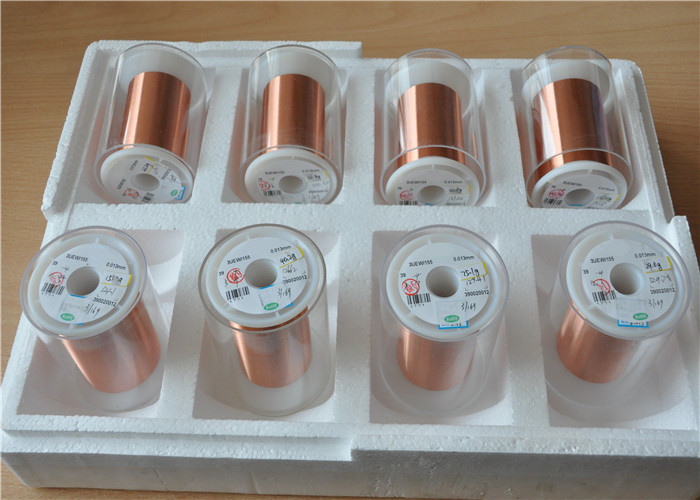

Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Conductor Material: Copper Type: Insulated
Insulation Material: Enameled Name: HotEnameled Copper Wire Magnet Winding Wire
Place Of Origin: China Brand Name: Rvyuan Model Number: UEW Type: Insulated Appl: 155/18 Conductor Type: Solid
High Light:

covered copper wire

,

flat copper wire


Product Description

IEC STANDARD 2UEW 0.3MM SELF BONDING ENAMELED COPPER WIRE MAGNET WINDING WIRE FOR VOICE COILS



Enamelled copper wire comes in many different diameters, and with several different kinds of enamel. The diameters vary from less than that of a hair, to about that of a child’s finger. Different standards exist for the wire diameter. A very common one is American Wire Gauge, shortened to AWG, which is used in much of the world. Britain has its own standard, and in many countries the wire is specified simply by its diameter in millimeters.

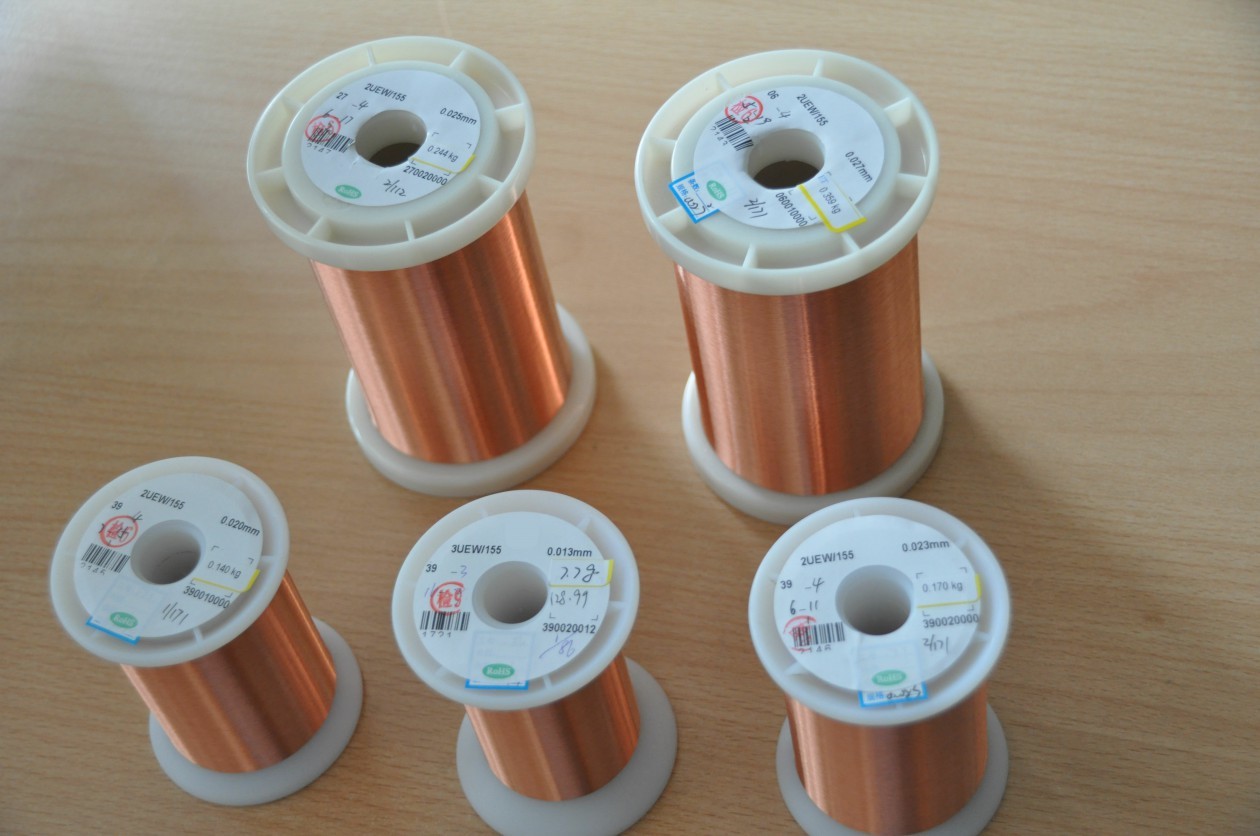

2UEW 0.3mm Self Bonding Magnet Wire Enamelled Copper Winding Wire For Voice Coils IEC Standard 0

Size

Conductor

Insulation Thickness

Bonding Layer thickness

Overall Dia

DCR(at 20℃)

Breakdown voltage (V)

Elongation %

Bonding Strength(g)

0.012

According to DCR

Min0.001

Min0.0005

0.014mm

128.85-179.96

Min100

Min3.0

Min 1

0.015

According to DCR

Min0.001

Min0.0005

0.020mm

85.06-111.10

Min120

Min5.0

Min 1

0.020

±0.001

Min0.001

Min0.002

Max0.0260

54.0~57.0

Min135

Min6.0

Min 1

0.025

±0.001

Min0.002

Min0.002

Max0.0320

34.0~37.0

Min165

Min6.0

Min 2

0.028

±0.001

Min0.002

Min0.002

Max0.0360

26.9~28.4

Min190

Min6.0

Min 2

0.030

±0.001

Min0.002

Min0.002

Max0.0390

23.7~24.9

Min210

Min6.0

Min 2

0.032

±0.001

Min0.002

Min0.002

Max0.0400

21.5~22.5

Min210

Min6.0

Min 2

0.034

±0.001

Min0.002

Min0.002

Max0.0430

18.1~18.9

Min250

Min6.0

Min 3

0.039

±0.001

Min0.002

Min0.002

Max0.049

14.6~15.2

Min100

Min7.0

Min 3

0.041

±0.001

Min0.003

Min0.003

Max0.0500

12.9~13.6

Min275

Min7.0

Min 3

0.046

±0.001

Min0.003

Min0.003

Max0.0550

9.90~10.3

Min360

Min10.0

Min 3

0.049

±0.001

Min0.002

Min0.003

Max0.0580

8.90~9.40

Min700

Min10.0

Min 5

0.065

±0.002

Min0.003

Min0.003

Max0.078

4.85~5.20

Min700

Min12.0

Min 5

0.068

±0.002

Min0.003

Min0.003

Max0.083

4.60~4.80

Min700

Min12.0

Min 5

0.070

±0.002

Min0.003

Min0.003

Max0.086

4.30~4.50

Min700

Min12.0

Min 5

0.075

±0.002

Min0.004

Min0.004

Max0.086

3.77~3.97

Min700

Min14.0

Min 8
