| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | UL |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000000 Piece/Pieces per Month |
| Size: | Size | Inductance: | 1mH |
|---|---|---|---|
| Working Current: | 15A | Shape: | RING |
| Model: | T38*19*13 | ||
| High Light: | dry type transformer,high frequency power transformer |
||

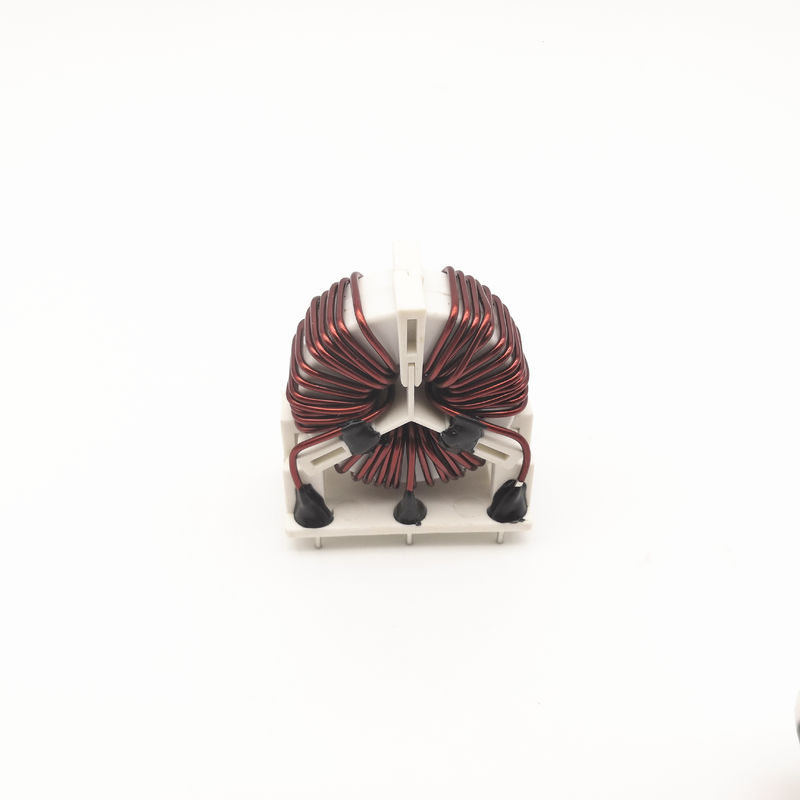

UL CERTIFICATED HIGH CURRENT FERRITE CORE CHOKE INDUCTOR FOR SWITCHING REGULARTOR
Common mode Inductor, also known as common mode choke, is commonly used in computer switching power supplies to filter common mode electromagnetic interference signals. In the board design, the common mode inductor also acts as an EMI filter to suppress the electromagnetic radiation generated by the high-speed signal line from radiating outward.
|
T38×19×13
|
|||
|
Dimention(mm)
|
Pin Quantity(pcs)
|
Pin Array(mm)
|
|
|
50*35*53
|
6
|
18/25
|
|
|
Resistance(MAX)
|
Inductance
|
Test Condition
|
|
|
L1-2=L4-3=L5-620mΩ
|
L1-2=L4-3=L5-6=1.0mH MIN 100K,1V
|
100KHZ/1V
|
|
