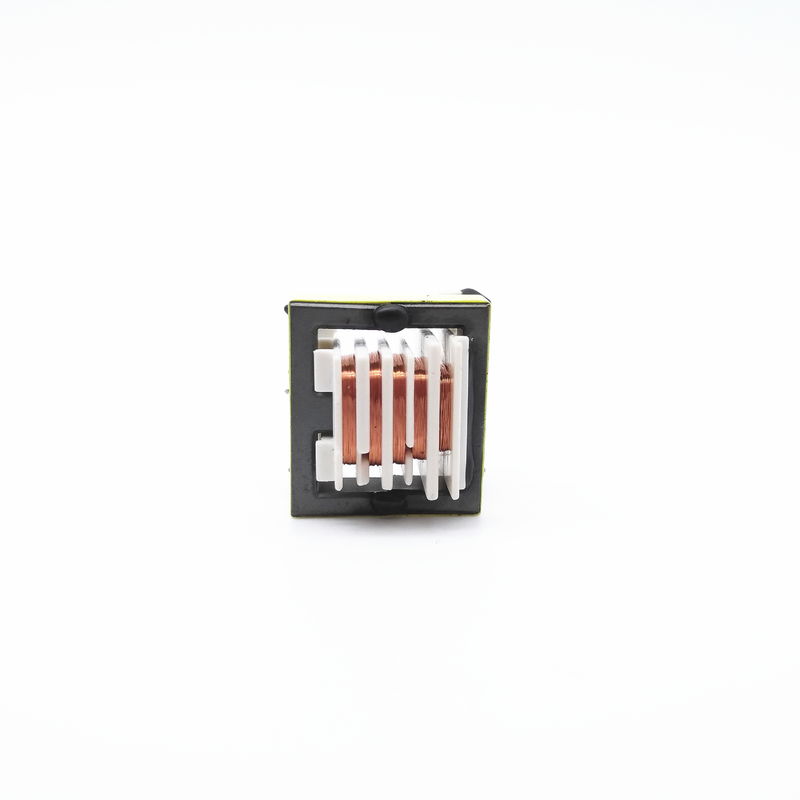

10KHz 220v - 380v Switch Mode Transformer Electrical AC Step Up Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: EE22
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Size: 22*22*17.5 Bobbin Shape: Vertical
Inductance: 7-8=1.1H±15% Resistance: 7-8=1.2KohmMAX
Working Frequency: 10KHz Leakage: 7-8=160mH±15%
High Light:

dry type transformer

,

high frequency power transformer


Product Description

Ul CE ROHS APPROVED 220V TO 380V STEP UP TRANSFORMER AC AC TRANSFOREMR ELECTRICAL TRANSFORMER





The advantages of flyback transformers are: 1. The circuit is simple and can provide multi-channel DC output efficiently, so it is suitable for multiple sets of output requirements. 2. High conversion efficiency and low loss. 3. The transformer turns ratio is small. 4. When the input voltage fluctuates within a large range, it can still have a stable output. At present, the AC input can be realized between 85~265V. It can achieve stable output without switching.



EE20
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
22*22*17.5
7+3
5.3 /2.5 /8.4
------
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
7-8=1.2KΩMAX
7-8=1.1H±15%
7-8=160mH±15%
10KHz 0.3Vrms



10KHz 220v - 380v Switch Mode Transformer Electrical AC Step Up Transformer 0
