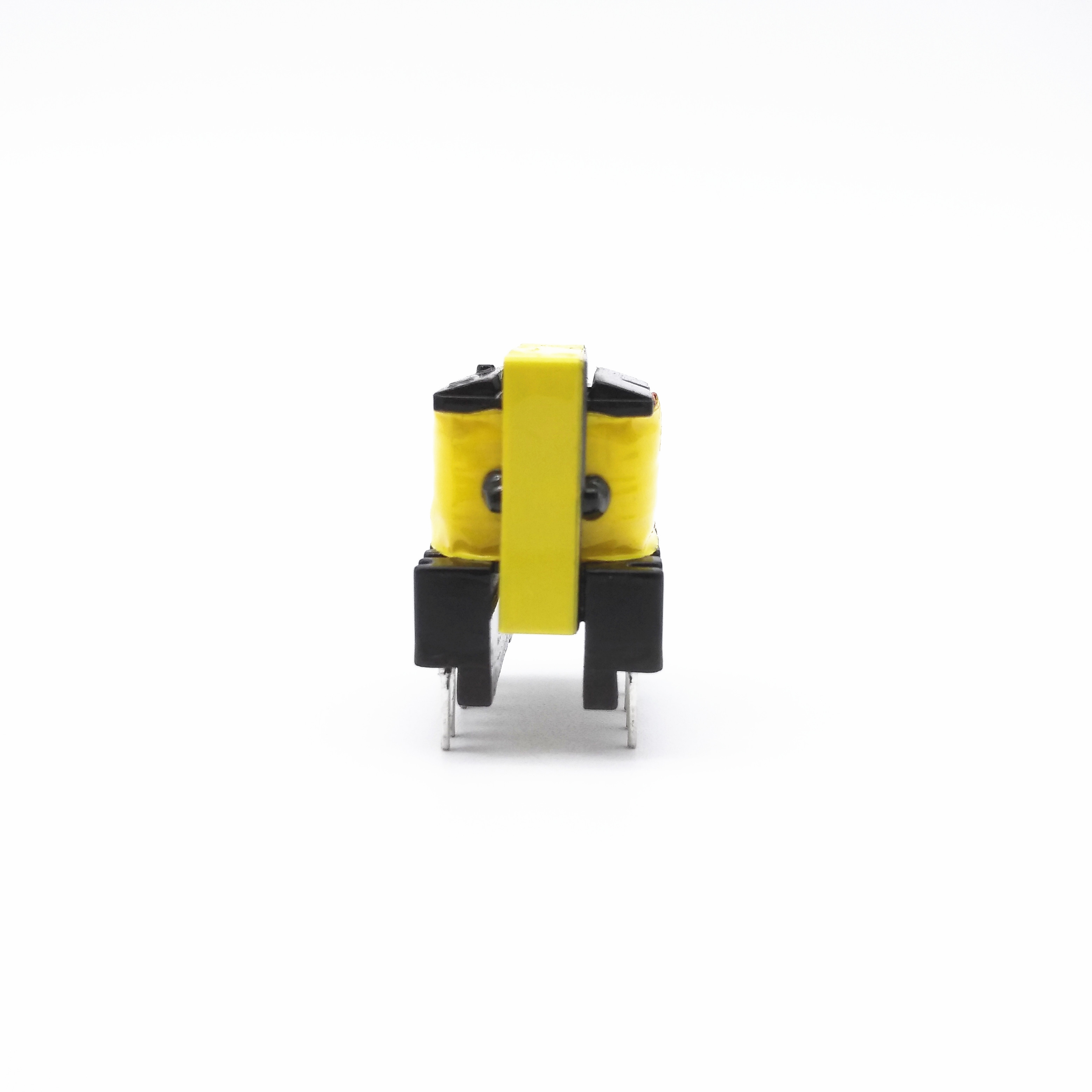

EE19 High Frequency Switch Mode Transformer Power Supply Transformer 10W

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: EE19
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Size: 21*18*24 Bobbin Shape: Horizontal
Inductance: 1-3=1.05mH±10% Recommend Power: 10W
Core Material: MnZn Power Ferrite Core Resistance: 1-3=5.5mohm MAX
Working Frequency: Working Frequency
High Light:

dry type transformer

,

high frequency power transformer


Product Description



EE19 HIGH FREQUENCY HIGH VOLTAGE POWER SUPPLY TRANSFORMER AC TRANSFORMER INVERTER TRANSFORMER





Switch mode flyback transformers are used extensively in electronic applications, usually within a switch mode power supply. A switch mode power supply is usually powered from a D.C. source, such as a battery. The switching mode power supply converts the input D.C. source to one or more output D.C. sources.



EE19
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
21*18*24
6+4
2.70/3.50
10W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
1-3=5.5ΩMAX
1-3=1.05mH±10%
1-3=55uH MAX
10KHz 1.0Vrms

EE19 High Frequency Switch Mode Transformer Power Supply Transformer 10W 0
