1.4mH 10KHz High Frequency High Voltage Transformer Fbt Flyback Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 1.4mH
Minimum Order Quantity: 100pcs
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
High Light:

transformer ferrite core

,

electrical transformers


Product Description



1.4mH 10KHz HIGH FREQUENCY VOLTAGE CONVERTER FBT FLYBACK TRANSFORMER



A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to "step up" or "step down" voltages and works on the magnetic induction principle. A transformer has no moving parts and is a completely static solid state device, which insures, under normal operating conditions, a long and trouble-free life. It consists, in its simplest form, of two or more coils of insulated wire wound on a laminated steel core. When voltage is introduced to one coil, called the primary, it magnetizes the iron core. A voltage is then induced in the other coil, called the secondary or output coil. The change of voltage (or voltage ratio) between the primary and secondary depends on the turns ratio of the two coils.



PQ2620

Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
34.5*24.5*28
8+7
3/4/5/6/8
50W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
15-14=2.0ΩMAX
15-14=1.0mH±10%
15-14=150uH MAX
1KHz 0.25Vrms

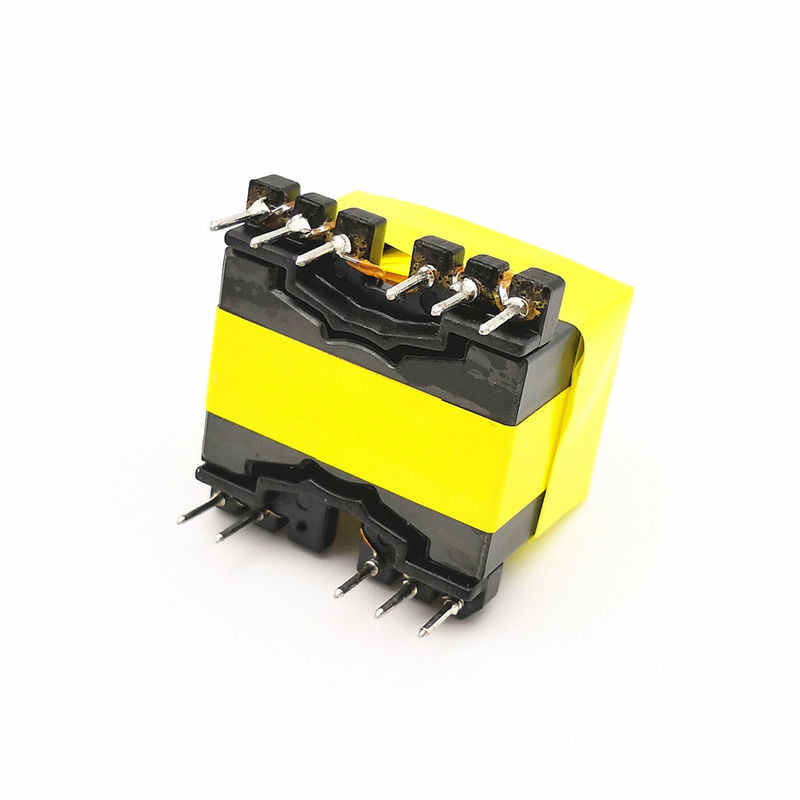

1.4mH 10KHz High Frequency High Voltage Transformer Fbt Flyback Transformer 0
