Electrical High Voltage Flyback Transformer 880uH 100KHz Pulse Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: EFD30
Minimum Order Quantity: 100pcs
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: T/T, L/C
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
High Light:

transformer ferrite core

,

electrical transformers


Product Description

EFD30 HIGH FREQUENCY HIGH VOLTAGE FLYBACK TRANSFORMER PULSE TRANSFORMER



A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to "step up" or "step down" voltages and works on the magnetic induction principle. A transformer has no moving parts and is a completely static solid state device, which insures, under normal operating conditions, a long and trouble-free life. It consists, in its simplest form, of two or more coils of insulated wire wound on a laminated steel core. When voltage is introduced to one coil, called the primary, it magnetizes the iron core. A voltage is then induced in the other coil, called the secondary or output coil. The change of voltage (or voltage ratio) between the primary and secondary depends on the turns ratio of the two coils.

EFD30
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
39*34.5*20
6+6
5
50-60W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
4-6=2.5Ω
4-6=880uH±10%
4-6=16uH MAX
100KHz,1Vrms

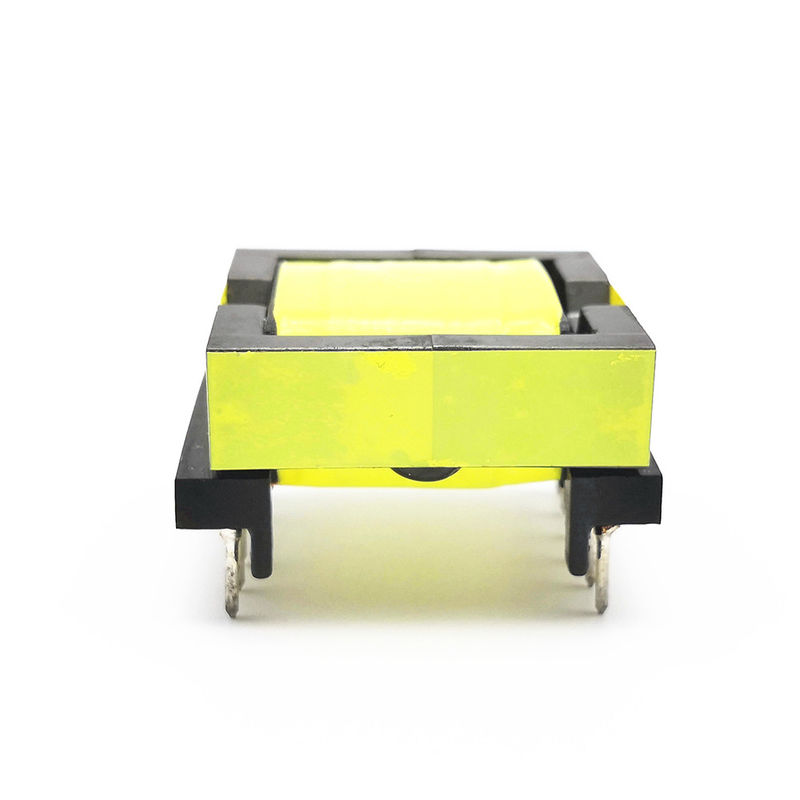

Electrical High Voltage Flyback Transformer 880uH 100KHz Pulse Transformer 0
