Winding Using Enameled Copper Wire Self Bonding Wire Polyester Insulation

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C,Negotiation,
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Thermal Class: 130/155/180/220
Application: Transformers/Motors/Relays Standard: IEC,NEMA,JIS
Color: Red/Green/Normal Insulation: Polyester
Material: Copper Size: 0.012-2.00MM
High Light:

ultra fine enameled copper winding wire

,

polyester insulation copper winding wire

,

class 130 copper winding wire


Product Description

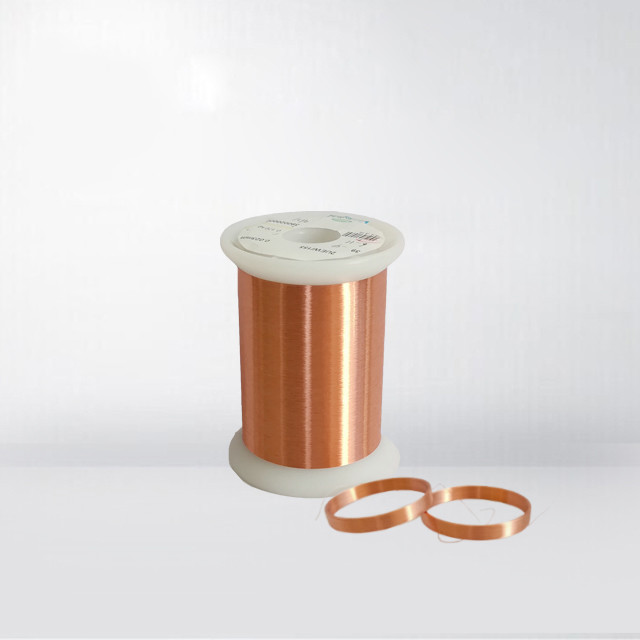

WINDING USING ENAMELED COPPER WIRE SELF BONDING WIRE POLYESTER INSULATION

Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

APPLICATION

High frequency coils and transformers Relays, Solenoids coils, Small motors, lgnition coils.

FEATURES

  • With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping. Enamelled copper wire Enamelled copper wire Enamelled copper wire Enamelled copper wire

  • Superior ''Q'' characteristic at high frequencies. Enamelled copper wire Enamelled copper wire

  • Excellent film adhension and flexibility. Enamelled copper wire Enamelled copper wire Enamelled copper wire

  • Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.

SPECIFICATION

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.013-0.09mm enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130,155,180 centigrade
Enameled types : UEW,QA

Certification:UL Approved, ISO9001,ISO14001,RoHS,REACH

Winding Using Enameled Copper Wire Self Bonding Wire Polyester Insulation 0

SPECIFICATION

Nominal Diameter mm

Tolerance

Min. Increase of Diameter

Max. Overall Diameter

Breakdown Voltage



Elongation

Pin Hole

Electrical Resistance





mm





≥ V



≥%

≤Default/5m

Ω/km (20℃)











Mandrel Method

Twisted Method





Min.

Max.

0.012

----

0.013

0.015

50.000

----

5.00

10.00

142.64

157.65

0.013

----

0.015

0.017

70.000

----

5.00

10.00

118.41

133.98

0.014

----

0.016

0.018

70.000

----

5.00

10.00

102.64

120.45

0.015

----

0.017

0.020

80.000

----

5.00

10.00

89.83

104.41

0.016

----

0.018

0.021

90.000

----

5.00

8.00

74.67

97.56

0.017

----

0.019

0.022

90.000

----

5.00

8.00

66.60

85.75

0.018

----

0.020

0.023

100.000

----

5.00

8.00

59.77

75.95

0.019

----

0.021

0.024

100.000

----

5.00

8.00

53.95

67.75

0.020

0.001

0.022

0.024

100.000

----

8.00

8.00

51.83

60.81

0.050

±0.002

0.007

0.062

400.000

1200.00

12.00

5.00

7981.00

9528.00

0.055

±0.002

0.007

0.068

400.000

1200.00

12.00

5.00

6642.00

7815.00

0.060

±0.002

0.007

0.073

500.000

1200.00

14.00

5.00

5614.00

6526.00

0.065

±0.002

0.007

0.078

500.000

1200.00

14.00

5.00

4807.00

5531.00

0.070

±0.002

0.007

0.083

500.000

1200.00

15.00

5.00

4163.00

4747.00

0.075

±0.002

0.007

0.088

550.000

1200.00

15.00

5.00

3640.00

4119.00

0.080

±0.002

0.008

0.094

550.000

1200.00

16.00

5.00

3209.00

3608.00

0.085

±0.002

0.008

0.099

550.000

1200.00

16.00

5.00

2851.00

3187.00

0.090

±0.002

0.010

0.106

650.000

1200.00

16.00

5.00

2550.00

2835.00

0.095

±0.002

0.010

0.111

650.000

1200.00

17.00

5.00

2294.00

2538.00

0.100

±0.002

0.011

0.118

650.000

1200.00

17.00

5.00

2074.00

2286.00

0.110

±0.002

0.011

0.129

----

1300.00

17.00

5.00

1720.00

1882.00

0.120

±0.002

0.011

0.139

----

1500.00

17.00

5.00

1450.00

1577.00

0.130

±0.002

0.011

0.149

----

1500.00

18.00

5.00

1239.00

1340.00

0.140

±0.002

0.011

0.159

----

1600.00

19.00

5.00

1070.00

1153.00

0.150

±0.002

0.011

0.169

----

1700.00

20.00

5.00

934.10

1002.00

0.160

±0.002

0.012

0.180

----

1700.00

21.00

5.00

822.30

879.40

0.170

±0.003

0.013

0.192

----

2000.00

22.00

5.00

721.10

787.10

0.180

±0.003

0.014

0.204

----

2000.00

22.00

5.00

644.40

700.70

0.190

±0.003

0.014

0.214

----

2000.00

23.00

5.00

579.40

627.80

0.200

±0.003

0.014

0.224

----

2000.00

23.00

5.00

523.70

565.70

0.210

±0.003

0.014

0.234

----

2000.00

23.00

5.00

475.70

512.30

0.220

±0.003

0.014

0.245

----

2200.00

23.00

5.00

434.00

466.20

0.230

±0.003

0.016

0.257

----

2200.00

24.00

5.00

397.50

426.00

0.240

±0.003

0.016

0.267

----

2200.00

24.00

5.00

365.50

390.80

0.250

±0.003

0.016

0.277

----

2300.00

24.00

5.00

337.10

359.80

0.260

±0.004

0.018

0.287

----

2300.00

25.00

5.00

309.60

335.00

0.270

±0.004

0.018

0.297

----

2300.00

25.00

5.00

287.40

310.30

0.280

±0.004

0.022

0.313

----

2300.00

25.00

5.00

267.60

288.20

0.290

±0.004

0.022

0.323

----

2500.00

25.00

5.00

249.70

268.40

0.300

±0.004

0.022

0.334

----

2500.00

25.00

5.00

233.50

250.60

0.310

±0.004

0.022

0.344

----

2500.00

25.00

5.00

218.90

234.40

0.315

±0.004

0.022

0.349

----

2500.00

25.00

5.00

212.10

227.00

0.320

±0.004

0.023

0.355

----

2700.00

25.00

5.00

205.60

219.80

0.330

±0.004

0.023

0.365

----

2700.00

25.00

5.00

193.50

206.60

0.350

±0.004

0.023

0.385

----

2700.00

26.00

5.00

172.20

183.40

0.355

±0.004

0.023

0.390

----

2700.00

26.00

5.00

167.40

178.20

0.370

±0.004

0.024

0.406

----

2900.00

26.00

5.00

154.30

163.90

0.380

±0.004

0.024

0.416

----

2900.00

26.00

5.00

146.40

155.30

0.400

±0.004

0.025

0.437

----

2900.00

27.00

5.00

132.20

140.00

0.410

±0.004

0.025

0.447

----

2900.00

27.00

5.00

125.90

133.20

0.440

±0.004

0.025

0.477

----

2900.00

27.00

5.00

109.50

115.50

0.450

±0.004

0.025

0.487

----

2900.00

27.00

5.00

104.70

110.40

0.470

±0.004

0.026

0.508

----

3100.00

27.00

5.00

96.05

101.10

0.500

±0.004

0.026

0.539

----

3100.00

27.00

5.00

84.96

89.23

0.550

±0.004

0.027

0.590

----

3300.00

28.00

5.00

70.31

73.64

0.600

±0.005

0.027

0.640

----

3500.00

28.00

5.00

58.96

62.01

0.650

±0.005

0.027

0.690

----

3500.00

28.00

5.00

50.30

52.77

0.700

±0.005

0.029

0.742

----

3500.00

28.00

5.00

43.42

45.45

0.750

±0.005

0.030

0.794

----

3800.00

28.00

5.00

37.86

39.55

0.800

±0.005

0.032

0.846

----

3800.00

28.00

5.00

33.30

34.73
