| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012-0.8mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Stock: | Available | AWG: | 0.012-0.80 |
|---|---|---|---|
| Thermal Rating: | 130/150/180 | Application: | Motor Winding Wire |
| Insulation Material: | Enameled | Conductor: | Solid Copper |
| Insulation: | Ployester | ||
| High Light: | fine enamel coated magnet wire,fine enamel coated wire,0.012mm enamel coated magnet wire |
||

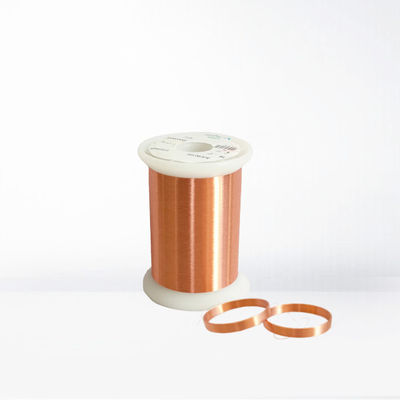

0.012 - 0.8MM SUPER FINE ENAMELED MAGNET COPPER WIRE ROUND COPPER WIRE FOR MOTORS
Magnet wire plays a critical role in three areas of energy transformation: electrical to electrical, electrical to mechanical, and mechanical to electrical.Electrical to electrical transformation involves transformers, which are used to transfer power. Transformers are used for power generation by utility companies, for power voltage conversion, and in electrical controls in industrial and home uses.Electrical to mechanical transfer is necessary for motorized appliances, automobiles, industrial machinery, and residential and commercial HVAC systems. Magnet wire is a key component in each of these applications.Mechanical to electrical transformation occurs when machine power is converted into electricity. This type of transformation includes generators, which turn mechanical power into electrical energy through the use of magnet wire.
APPLICATION
Transformer, inductors, motors, speakers, hard disk head actuators, electromagnets and other applications that require tight coils of insulated wire.
SPECIFICATION
|
Parameter |
SM-130 |
SMG-155 |
SMY-180 |
S(MY/MY)-200 |
SQ-120 |
SY-240 |
|
Standars |
GB/T6109.7 GB/T23312.3 |
60317-12 GB/T6109.2 GB/T23312.4 |
MW 30 60317-8 GB/T6109.5 GB/T23312.5 |
MW 35 60317-13 BS6811 GB/T6109.20 GB/T23312.7 |
MW 15 60317-12 GB/T6109.3 GB/T23312.2 |
MW 16 60317-46 GB/T6109.22 |
|
Thermal Class |
130°C |
155°C |
180°C |
200°C |
120°C |
240°C |
|
Enamel Base Coat |
Polyester |
Modified Polyester |
Polyester-Imide |
Polyester-Imide |
Polyester-formal |
Polyimide |
|
Enamel Top Coat |
|
|
|
Polyester-Imide |
|
|
|
Cross Section Range |
0.1-6.5mm |
|||||
|
Range of insulation thickness |
IEC60317-0-1 GB6108.2-85 |
|||||
|
Performance |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property |
1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance |
1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation |
|
Application |
1.Dry and oil-immersed 2.Electrical equipment |
1.Dry and oil-immersed 2.Electrical equipment |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil |
1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability |
|
Heat shock |
155°C |
175°C |
200°C |
220°C |
155°C |
300° |
