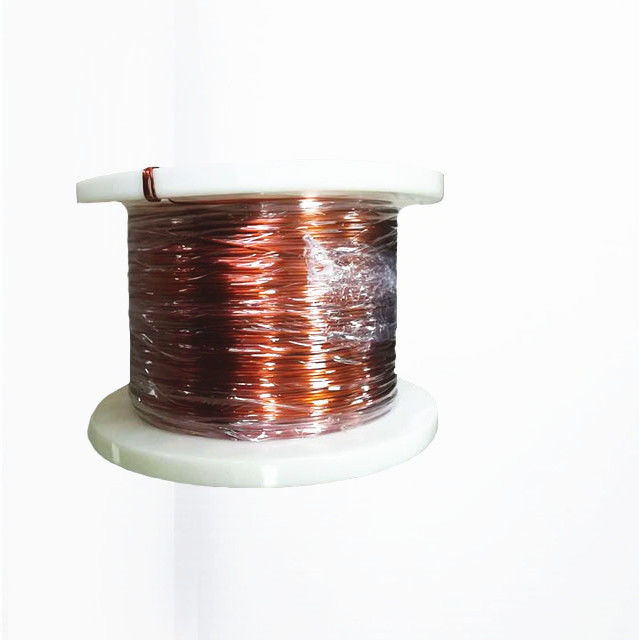

UEW Enamel Covered Copper Wire / Class 180 Self Bonding Enamelled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: UEW
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: IEC/NEMA/JIS/RoHS/ISO Delivery Time: 2-15 Days
Brand: Ruiyuan Width-Thickness Ratio: 1:1.5~1:25
Conductor Thicknes: 0.02-1.8mm Equivalent Round Wire Diameter: 0.12~3.2mm
Size: 0.1-1.0mm Insulation: UEW
High Light:

rectangular magnet wire

,

high voltage copper wire


Product Description

UEW ENAMEL COVERED COPPER WIRE/CLASS 180 SELF BONDING ENAMELED COPPER WIRE

Today most popular Notebook computers, PDA...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled round wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Wire" for the market

QQ20170509145641



QQ20170503112645

FEATURES AND BENEFITS

  • Different types of enamel with very good mechanical strength and bonding properties
  • Very consistent quality and dimension tolerances in line with industry standards
  • Wide range of dimensions, yarns and insulation builds available
  • Very thin grades for wind turbine generators
  • Improved mechanical strength, high-performance yarns and impregnation varnishes
  • Very high resistance to corona discharges for inverter applications
  • High-temperature class (original Pyre-ML® enamel used) with high- breakdown voltage
  • Soft wire for easy winding

APPLICATION

1. Notebook coil.
2. Coils of printer.
3. Motors of CD driver.
4. Transformer.
5. Speaker

SPECIFICATION

Item Characteristics Standard Test Result
1 Apperance Smooth Equality Smooth Equality
2 Conductor Diameter Width 1 ±0.020 1.01
Thickness 0.1 ±0.009 0.105
3 Thickness of Coating layer Width ≥0.007 0.026
Thickness ≥0.030 0.034
4 Thickness of Bonding layer Width ≥0.006 0.008
Thickness ≥0.006 0.006
5 Overall Diameter Width ≤1.045 1.044
Thickness ≤0.150 0.145
6 Pinhole ≤3hole/m 0
7 Elongation ≥30 % 35%
8 Flexibility and Adherence No crack No crack
9 Conductor Resistance (Ω/km at 20℃) ≤197.26 174.32
10 Breakdown Voltage ≥0.7KV 1.5KV
11 Heat shock No Crack No Crack
12 Bond Strengh(g) >100 160
  Conclution   Pass
