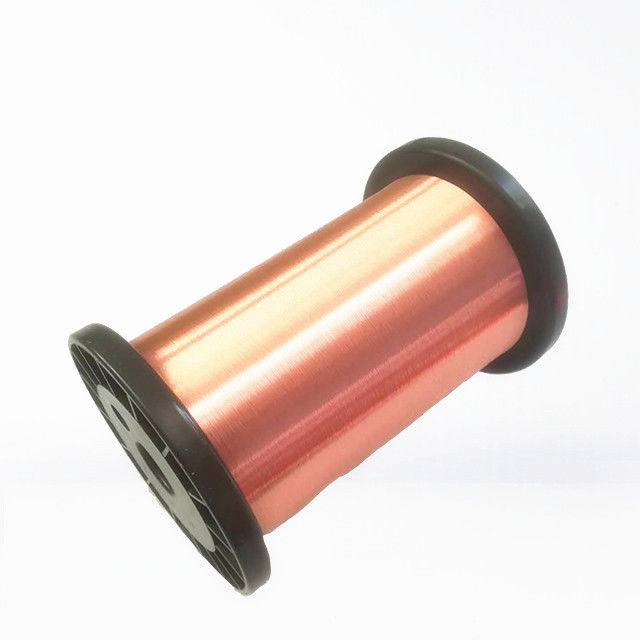

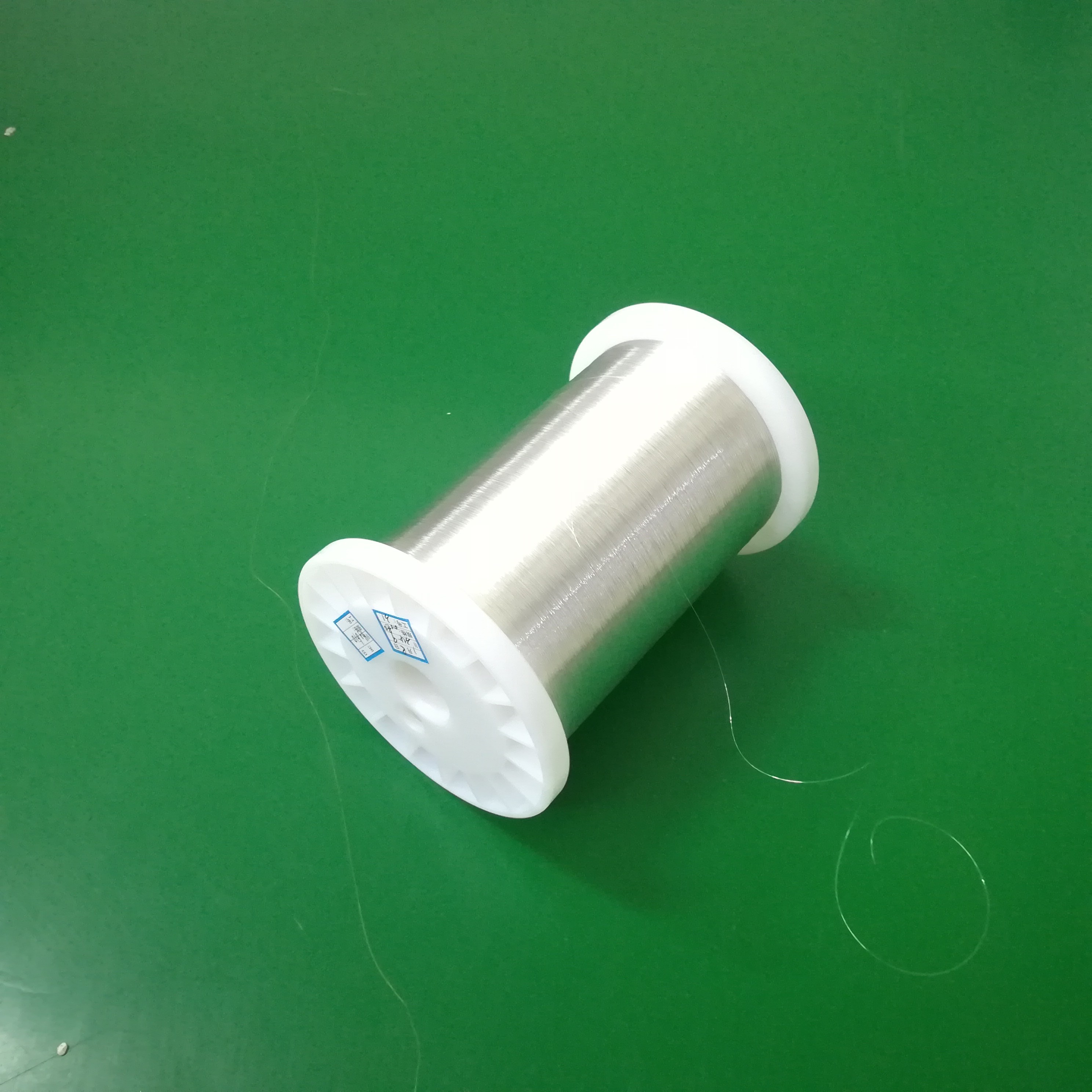

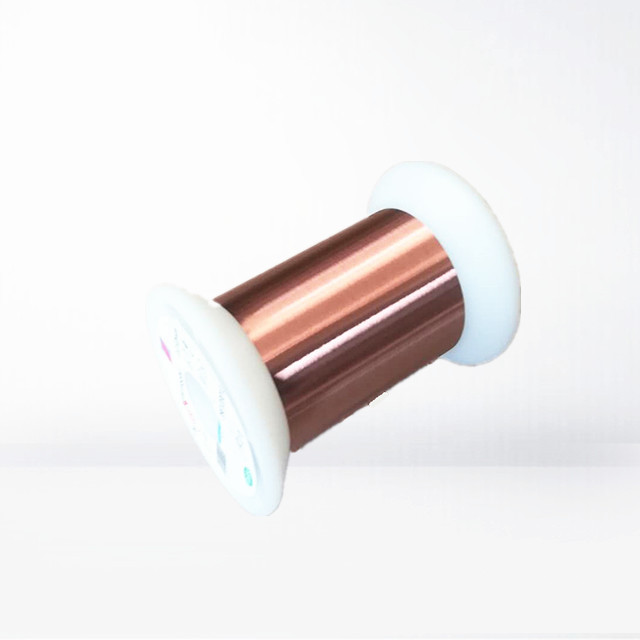

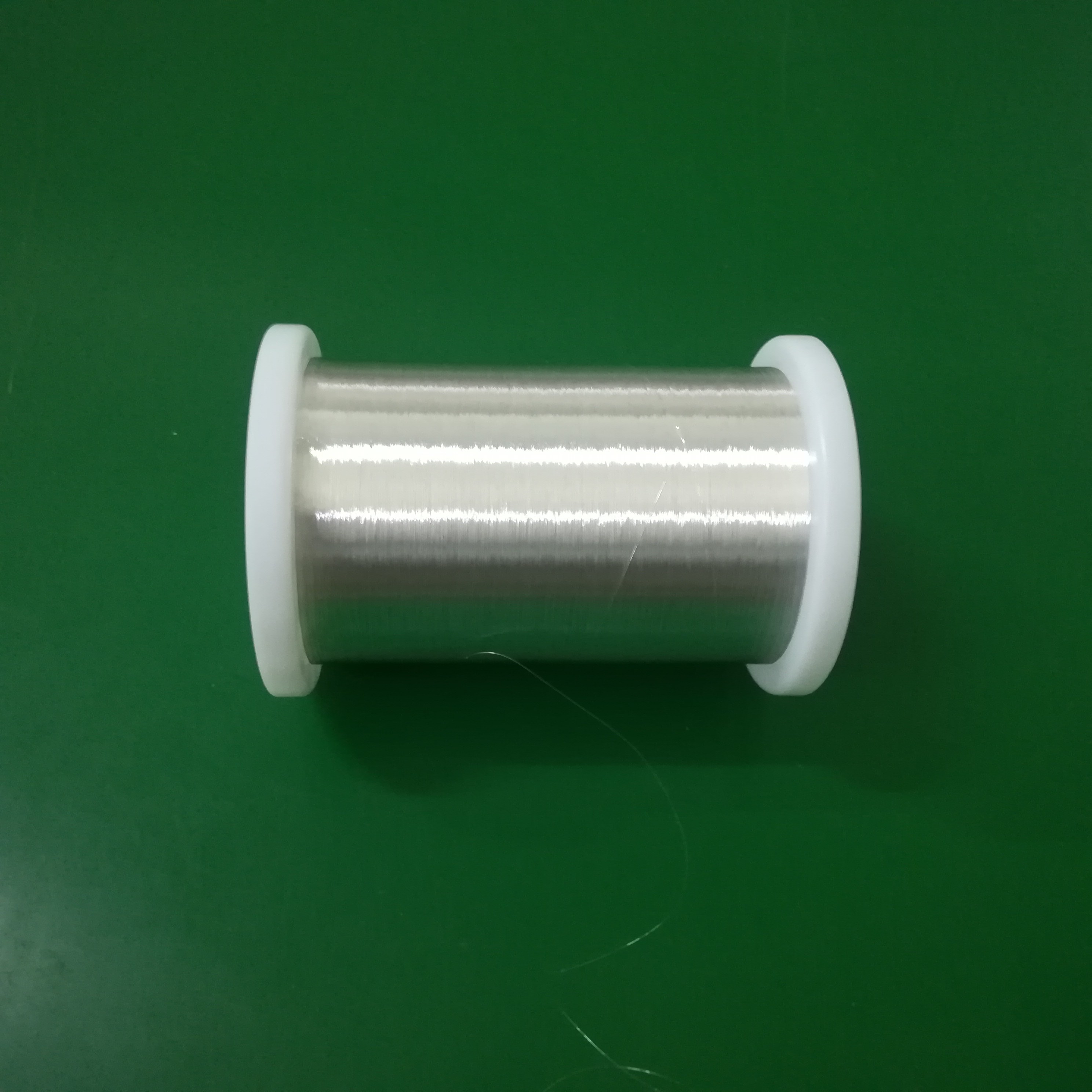

Silver Plated Ultra Fine Copper Wire For Voice Coil IEC / JIC / NEMA Standard

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001 /UL/SGS
Model Number: 0.05mm
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Silver Alloy Wire For Voice Coil Conductor Thickness: 0.05mm
Standard: IEC/JIC/NEMA Material: Round Copper
Conductor: Silver Plated Copper Thermal Class: 155
Silver Content: 0.1-10% Insulation: UEW/polyurethane
High Light:

self bonding copper wire

,

enamelled winding wire


Product Description

SILVER PLATED ULTRA FINE COPPER WIRE FOR VOICE COIL IEC JIC NEMA STANDARD

Silver copper alloy wire is an enamled wire mande of copper alloy conductor for special applications. such as special requirment of high conductivity, mechanical property, bending strength reisstance. The alloy includes copper silver alloy, copper zinc alloy, copper tin alloy and copper nickel alloy.

FEATURES

  • Copper silver Alloy: HIgh tensile strength, good bending strenth, high conductivity(>93%IACS)
  • Copper Zinc Alloy: Good mechanical property, corrosion resistance, lowe conductivity, excellent bending strength
  • Copper Tin Alloy: Excellent mechanicla and chemical property, extra-high corrosion resistance, good solderability
  • Copper Nickel Alloy: High conductivity, high tensile strength, high bending strength

APPLICATION

  • Copper Silver Alloy:HIgh end speaker coils, audio connection wire application. Silver Content:0.1-10%Copper Zin Alloy: Gas nozzle, electro discharge machine, heating device. Zinc Content:10-30%
  • Copper Tin Alloy: Heating components application. Tin content:0.15%-6%
  •  Copper Nickel Alloy: Heating components, resistance wire. Nickel content:2%-23%




Properties of various alloy wires
Property Copper Copper Silver Alloy Copper Tin Alloy Copper Zinc Alloy Copper Nickel Alloy
Density(g/cm2) 8.9 8.9 8.8-8.9 8.3-837 8.9
Conductivity(IACS/%) 100 88-97 78-93 27-44 6-34
Tensile Strength(MPa) 220-2700 300-450 330-470 390-450 370-550
Resistance Temp.Coefficient(IE-6/K) 3900-4000 3100-3600 3200-3500 1300-1500 200-150
