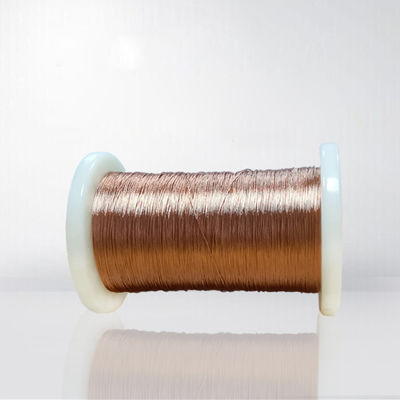

0.15 - 10mm Copper Litz Wire Silk Covered Enameled Insulated Copper Wire For Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: ISO9001/ISO14001/UL /SGS
Model Number: 0.03-0.8
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Inner packing: winding wire with plastic spools (PT2-PT200) according to different diameters Outer packing: Wooden pallet and wooden case or according to customers' special requirement.
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C, Negotiation,
Supply Ability: Satisfy your demand
Detail Information
Breakdown Voltage: 1500V Thermal Class: 130/155
Certificate: UL/SGS Insulation: UEW
Single Wire: 0.03-0.8 Color: Nature/Red/Green/Black/Others
Strands: 2-4000 Outside Diameter: 0.15-10mm
Twist Pictch: 3-70mm
High Light:

served litz wire

,

soldering litz wire


Product Description

0.15 - 10MM COPPER LITZ WIRE SILK COVERED ENAMELED INSULATED COPPER WIRE FOR WINDING

High frequency litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.The size range we can make is 0.03-0.8mm, and strands number is 2-4000, and we can provide red, green,black,purple etc
BENIFITS

  • Increased efficiency

  • Mitigation of skin and proximity effect

  • Minimum eddy current losses

  • Lowered operating temperatures

  • Reduced footprint of final product

  • Substantial weight reduction

  • Avoidance of "hot spots"

TIPS

Customers to use auotmatic line machine, semi-automatic machine, cutting coiling, please inform us, so that we can provide the best solution. component methods are divided into two kinds: with glue, without glue

APPLICATION

  • Induction coating hobs

  • RF transformers

  • RF transducers

  • E-Motors

USTC 0.071X357-1.jpg

USTC 0.071X357-2.jpg

SPECIFICATION

Gauge(mm)

Stranding No.

Twisting Distance(mm)

0.05+250D

14

2.75

0. 06+250D

14-18

2.64

0.06 + 250D

10

3.5

0.07 + 250D

36

5.3

0.08+200D

8

2.64

0.08+250D

8

2.9

0.08+500D

10

3.5

0.10-0.14

10 or below

5.68-9.18

0.10-0.14

10-20

9.18-11.47

0.11-0.14

30-60

15.29-17.00

0.15-0.20

10 or below

9.18-11.47

0.15-0.20

10-20

15.29-17.00

0.21-0.30

10 or below

11.47-15.29

0.21-0.30

10-20

15.29-17.00

0.31-0.40

10 or below

17.00-22.20

0.31-0.40

10-20

22.20-31.57

0.50 or above



5.68-50.00
