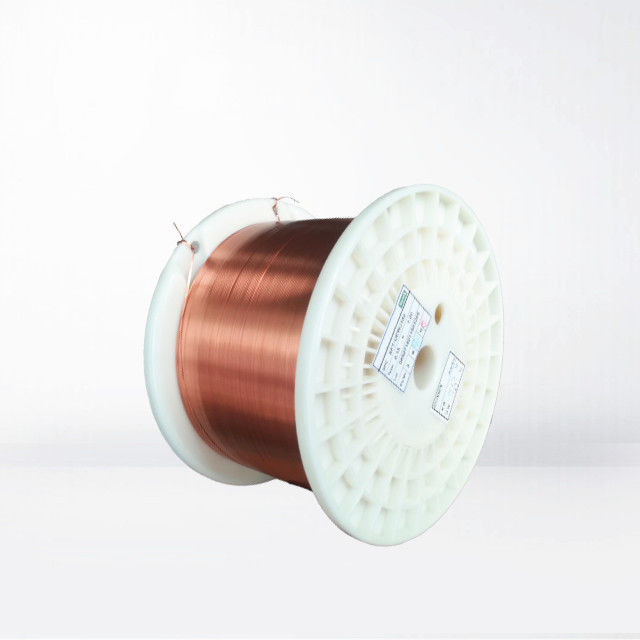

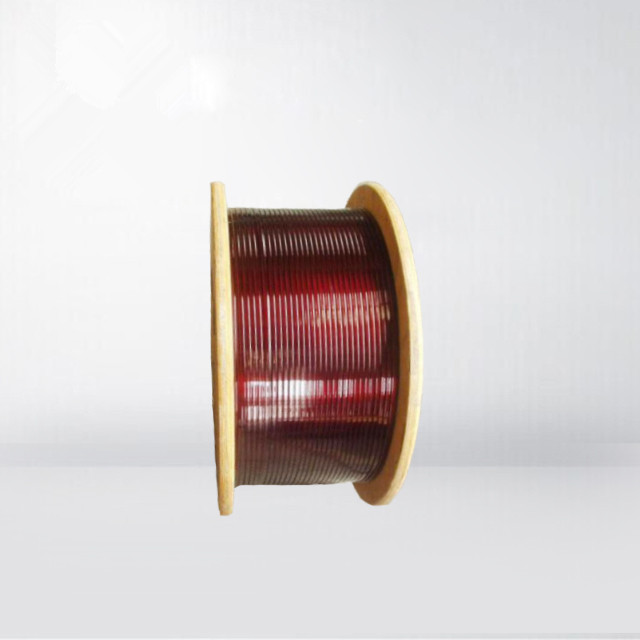

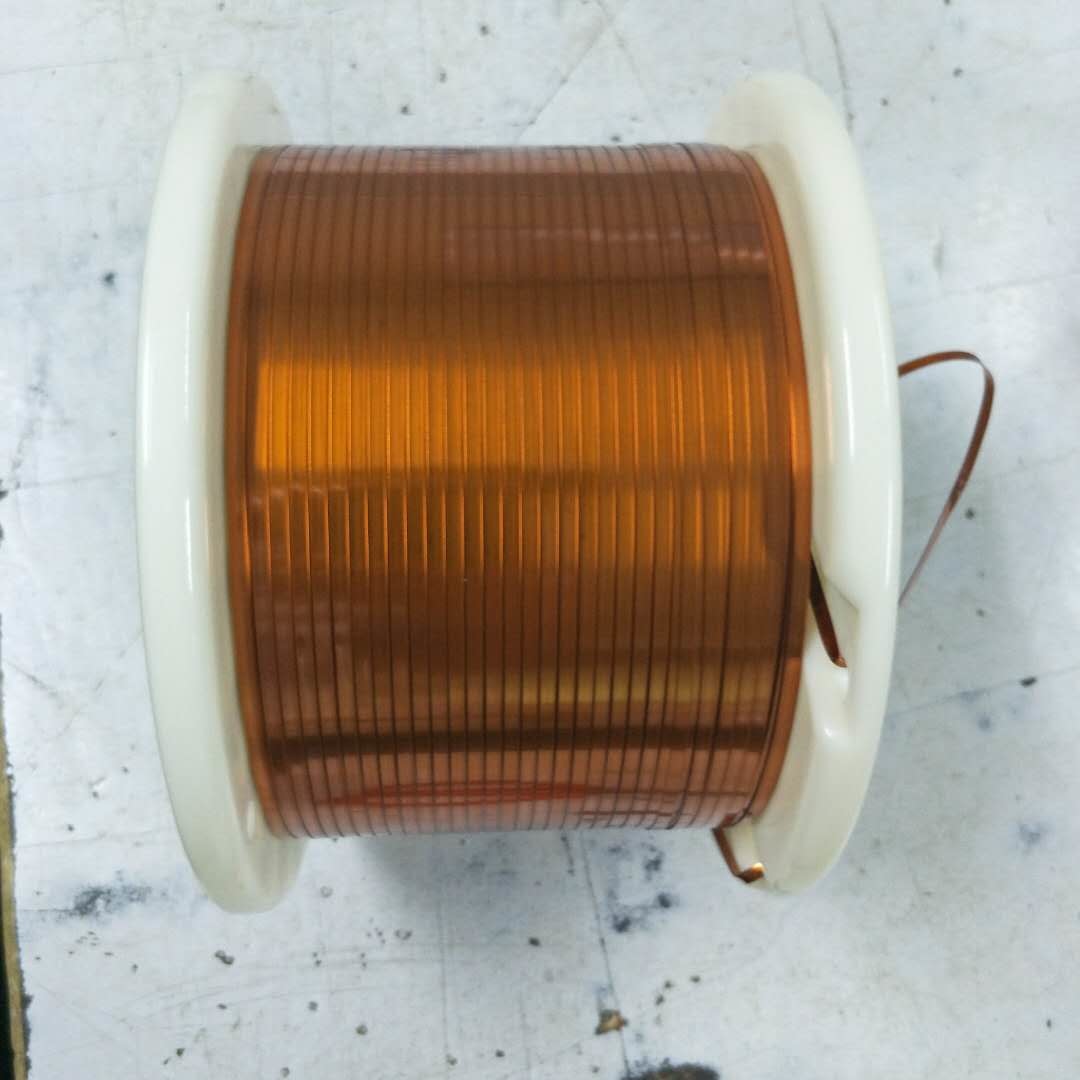

0.02mm ISO 9001-2000 Self Bonding Magnet Wire Ultra Fine Rectangular Flat Enameled Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/RoHS/ISO 9001
Model Number: 0.02
Minimum Order Quantity: 20 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Self Bonding Rectangular Copper Wire Material: Copper
Thermal Rating: 155-220 Color: Nature
Insulation Material: UEW/EIW/AIW Width Range: 0.155-7.5mm
Thickness Range: 0.02-1.8mm Width To Thickness Ratio: 1:1-1:25
Certificate: IEC/NEMA/JIS/RoHS/ISO
High Light:

square magnet wire

,

high voltage copper wire


Product Description

ISO 9001-2000 SELF BONDING MAGNET WIRE ULTRA FINE RECTANGULAR FALT ENAMELED COPPER WIRE

Rectangular or square wire is made from base copper with rectangular or square shape, it has high advantages compare with round wire, and applied in many field.With the development of technology, electric devices, including laptop computers, mobiles and more, are becoming smaller and compact these days. Along with the trend, coils that are used inside of the devices are required to be compact and more powerful to save the space.Our rectangular wire will be the best solution to satisfy those needs.

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,

UL Approved, RoHS Directive Met

Executive standards: IEC, JIS and NEMA.

FEATURES AND BENEFITS

  • High space factor. Higher density of conductor makes component smaller or makes component with high efficiency, save material cost.

  • The coil made from rectangular wire has better cooling efficiency.

  • Rectangular wire can be wound with different mode.

  • The coil can be better shape, flat and smooth.

0.02mm ISO 9001-2000 Self Bonding Magnet Wire Ultra Fine Rectangular Flat Enameled Copper Wire 0



Product

Class

Solderable

Self bonding

Product Range

Width(mm)

Thickness(mm)

Width-Thickness Ratio

AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

220℃

x

x

0.155--7.5

0.02-1.8

1.25

EI/AIWJ

200℃

x

x

0.155--7.5

0.02-1.8

1.25

UEWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

EIWJ

180℃

x

x

0.155--7.5

0.02-1.8

1.25

SEIWJ

180℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

155℃

0

x

0.155--7.5

0.02-1.8

1.25

UEWJ

130℃

0

x

0.155--7.5

0.02-1.8

1.25

EI/SBWJ

180℃

x

0

0.155--7.5

0.02-1.8

1.25

SEI/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

EI/AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

AI/SBWJ

220℃

x

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

180℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

155℃

0

0

0.155--7.5

0.02-1.8

1.25

UE/SBWJ

130℃

0

0

0.155--7.5

0.02-1.8

1.25
