5000V Mylar Film Covered Copper Litz Wire Copper Insulated Wire With UEW Insulation

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 24*0.4mm
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Minimal Insulation Thickness(mm): 0.011 Single Wire Diameter: 0.05mm
Number Of Strands: 24 Insulation Material: PI Film
Thermal Class: 155 Certificates: UL/Rohs/ISO
Standard: IEC/JIS/Nema Breakdown Voltage: Min. 4000V
Max Resistance (Ω/Km At20℃): 5.904
High Light:

served litz wire

,

rectangular litz wire


Product Description

5000V MYLAR FILM COVERED COPPER LITZ WIRE COPPER INSULATED WIRE WITH PEW INSULATION



Mylar file litz wire is a polyester film made from stretched polyethylene terephthalate (PET) and is used for its high tensile strength, chemical and dimensional stability, transparency, reflectivity, gas and aroma barrier properties, and electrical insulation.



Insulation of copper wires is made of polyurethane. This fact makes it easy to tin terminals of winding. High dielectric strenght can be achieved by one or multiple wrapping polyester tape (Mylar), polimide tape, kapton tape, etc. Despite this, the litz wire has an excellent flexibility.


Usually litz wire is supplied in round cross-section. However it can be profiled and made in square or rectangular cross section to optimize the winding area.



Application of HF- litz wire causes minimalization of power loss and reduces heating of windings. Other advantage is size reduction and less weight of inductive component. Due to its numerous advantages litz wires are used in transformers, high frequency chokes, inverters, telecomunication and TV devices and inductive heaters.



APPLICATION



  • Induction coating hobs

  • RF transformers

  • E-Motors

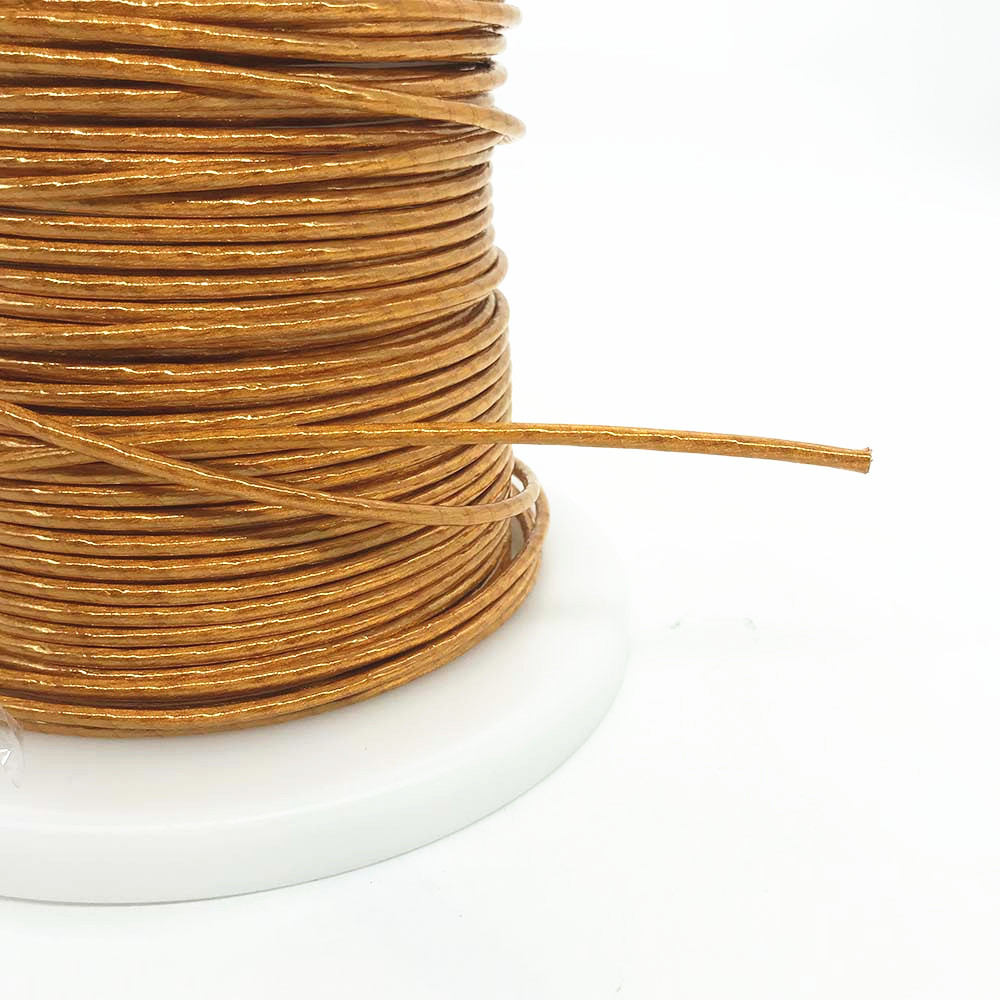

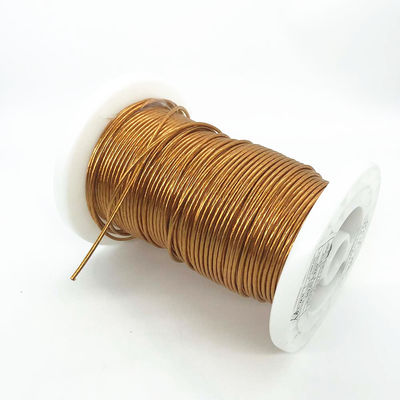

5000V Mylar Film Covered Copper Litz Wire Copper Insulated Wire With UEW Insulation 0
